Description

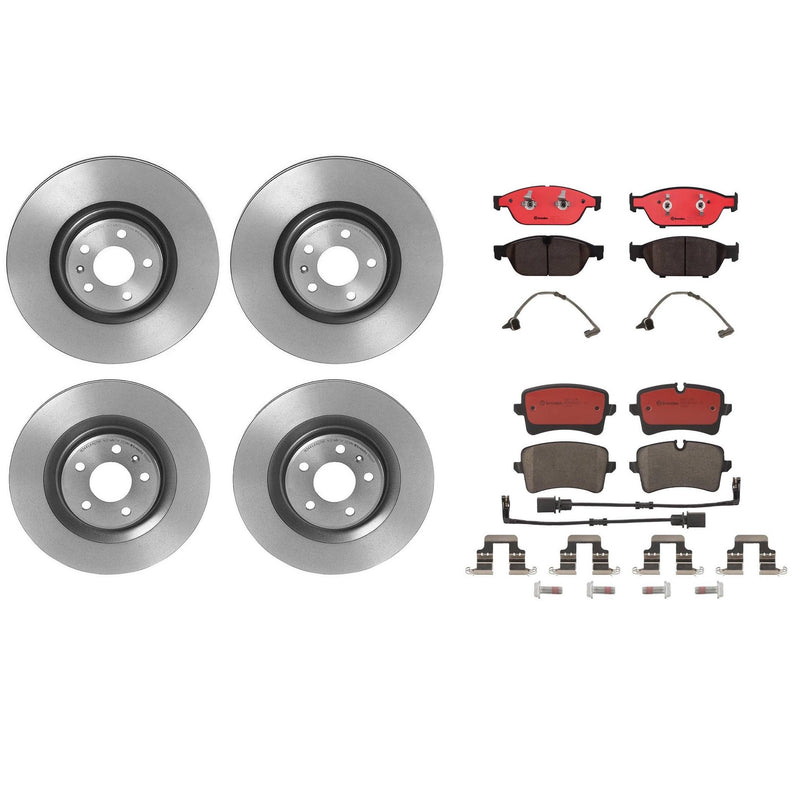

Kit Includes:

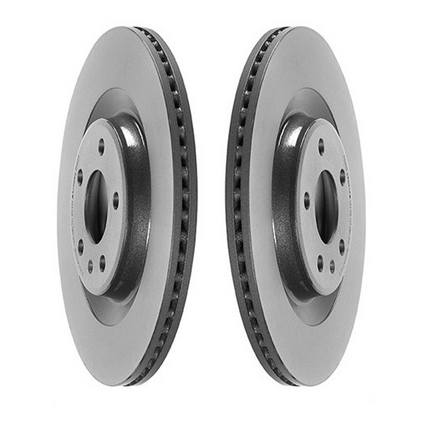

2 x Brembo 09.B969.11 Rear Disc Brake Rotors - Coated; Pillar Vented; 330 x 22 mm; 5 Lugs
2 x eEuroParts XHDZ074 Rear Disc Brake Pad Wear Sensors
1 x Brembo P85127N Front Ceramic Chamfered & Slotted Disc Brake Pad Set
1 x Brembo P85120N Rear Ceramic Disc Brake Pad Set with Hardware and Electric Wear Indicator
2 x eEuroParts XHDZ026 Front Disc Brake Pad Wear Sensors

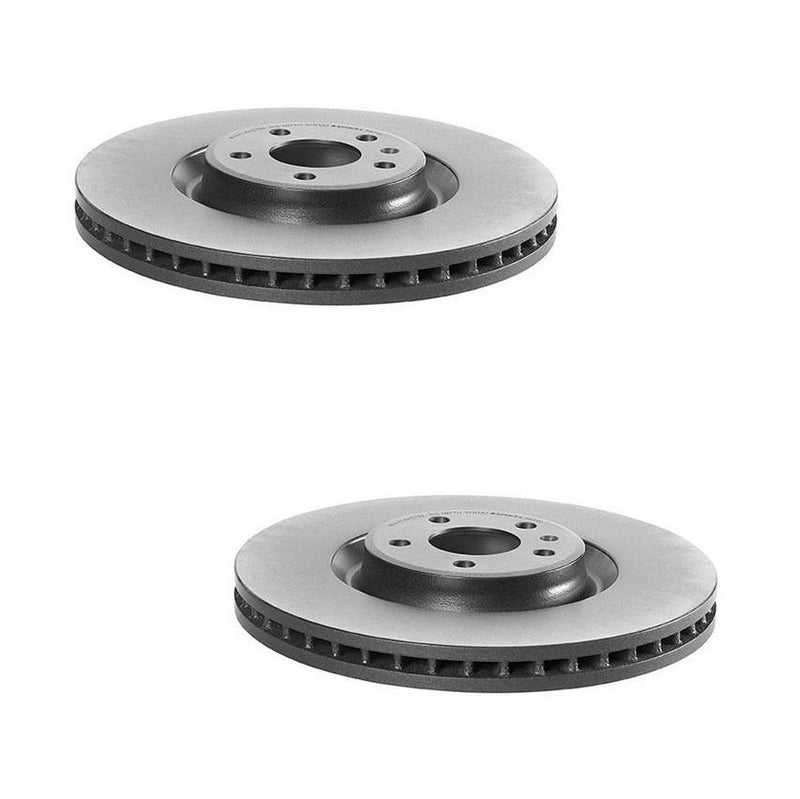

2 x Brembo 09.B971.11 Front 347x30mm Pillar (PVT) Vented Coated High Carbon 5 Lugs Rotors
| Brake System | (Front Pads) Teves |
| Brake System | (Rear Pads) Lucas |
| Centering Diameter (MM) | (Front Rotors) 68 |
| Centering Diameter (MM) | (Rear Rotors) 68 |
| Features | (Rear Pads) with hardware, with brake caliper screws |
| Fixing Screws | (Front Rotors) included |
| Fixing Screws | (Rear Rotors) included |
| Friction Material Composition | (Pads) Ceramic |
| Height (MM) | (Front Pads) 70.8 / 73.7 |
| Height (MM) | (Front Rotors) 52.1 |
| Height (MM) | (Rear Pads) 59/60 |
| Height (MM) | (Rear Rotors) 36.1 |
| Material | (Front Rotors) Grey Cast Iron |
| Material | (Rear Rotors) High Carbon |
| Minimum Thickness (MM) | (Front Rotors) 31.5 |
| Minimum Thickness (MM) | (Rear Rotors) 20 |
| Nominal Thickness (MM) | (Front Pads) 20 |
| Nominal Thickness (MM) | (Front Rotors) 34 |
| Nominal Thickness (MM) | (Rear Pads) 17.5 |
| Nominal Thickness (MM) | (Rear Rotors) 22 |
| Number of Holes | (Front Rotors) 5 |
| Number of Holes | (Rear Rotors) 5 |
| Outside Diameter (MM) | (Front Rotors) 356 |
| Outside Diameter (MM) | (Rear Rotors) 330 |
| Pad Wear Sensor Included | Yes |
| Rust Resistant Coating | (Front Rotors) UV Coated |
| Rust Resistant Coating | (Rear Rotors) UV Coated |
| Solid Or Vented Type Rotor | (Front Rotors) PVT |
| Solid Or Vented Type Rotor | (Rear Rotors) PVT |
| Suface Finishing | (Front Pads) chamfered & slotted |
| Wear Indicator | (Front Pads) prepared for wear indicator |
| Wear Indicator | (Rear Pads) with electric wear indicator |
| Width (MM) | (Front Pads) 193 / 193.2 |
| Width (MM) | (Rear Pads) 116.3 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 4G0615301A |
| Audi | 4G0615301K |
| Audi | 4G0615301T |
| Audi | 4G0698151B |
| Audi | 4G0698151G |
| Audi | 4G0698151M |
| Audi | 4G0698151R |
| Audi | 4H0615121H |
| Audi | 4H0615121J |
| Audi | 4H0615601D |
| Audi | 4H0615601H |
| Audi | 4H0615601K |
| Audi | 4H0615601Q |
| Audi | 4H0698151D |
| Audi | 4H0698151G |
| Audi | 4H0698451C |
| Audi | 4H0698451D |
| Audi | 4H0698451M |
| Audi | 8W0615601E |
| Porsche | 95B615601A |
