Description

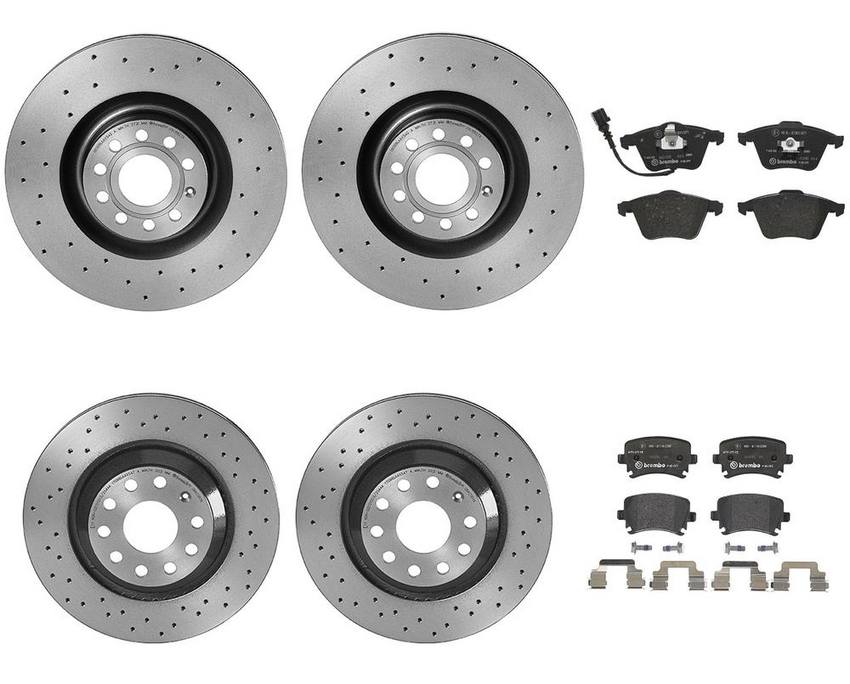

Kit Includes:

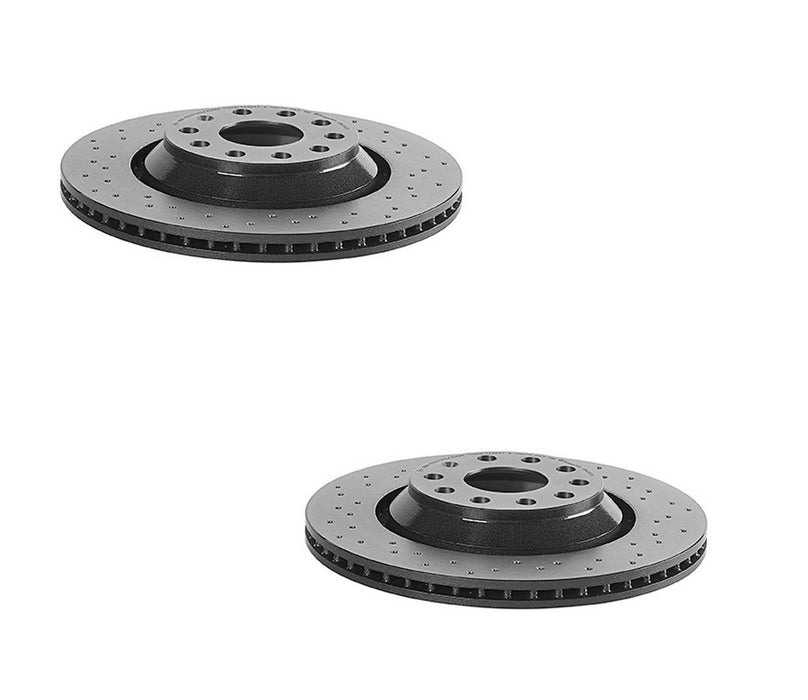

2 x Brembo 09.A200.1X Rear Disc Brake Rotors Xtra - 310mm, Drilled, Pillar Vented, Coated
1 x Brembo P85079 Front Disc Brake Pad Set Low-Met with Electric Wear Sensor

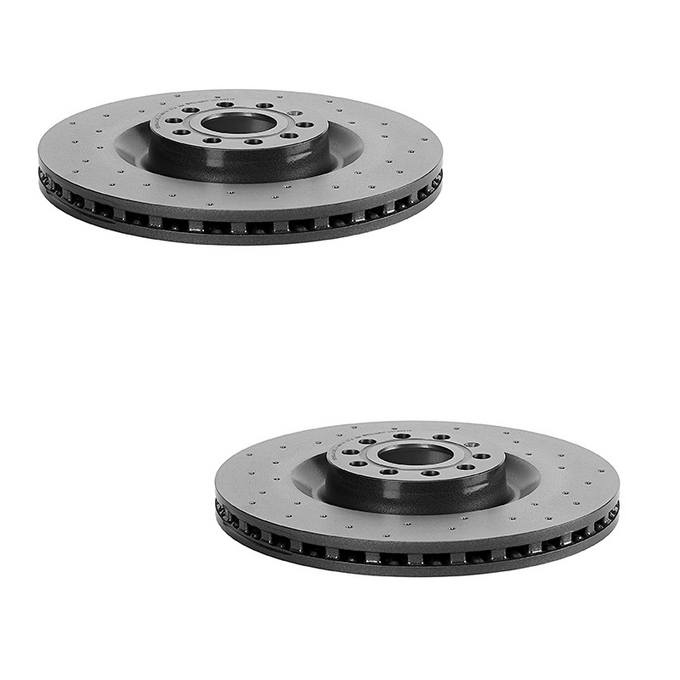

2 x Brembo 09.C892.1X Front Disc Brake Rotors Xtra - 345mm, Drilled, Pillar Vented, Coated
1 x Brembo P85095 Rear Disc Brake Pad Set Low-Met with Hardware
Brake System | (Front Pads) Teves |
Brake System | (Rear Pads) Lucas |
Braking Surface | (Front Rotors) Drilled |
Braking Surface | (Rear Rotors) Drilled |
Centering Diameter (MM) | (Rear Rotors) 65 |
Features | (Rear Pads) with hardware, with brake caliper screws |
Fixing Screws | (Front Rotors) included |
Fixing Screws | (Rear Rotors) included |
Friction Material Composition | (Pads) Low-Metallic |
Height (MM) | (Front Pads) 72.9 |
Height (MM) | (Front Rotors) 49.6 |
Height (MM) | (Rear Pads) 56.5 |
Height (MM) | (Rear Rotors) 48.2 |
Material | (Front Rotors) High Carbon Cast Iron |
Material | (Rear Rotors) High Carbon |
Minimum Thickness (MM) | (Front Rotors) 27.8 |
Minimum Thickness (MM) | (Rear Rotors) 20.5 |
Nominal Thickness (MM) | (Front Pads) 20.1 |
Nominal Thickness (MM) | (Front Rotors) 30 |
Nominal Thickness (MM) | (Rear Pads) 17.2 |
Nominal Thickness (MM) | (Rear Rotors) 22 |
Number of Holes | (Rear Rotors) 5 |
Outside Diameter (MM) | (Front Rotors) 345 |
Outside Diameter (MM) | (Rear Rotors) 310 |
Rust Resistant Coating | (Front Rotors) UV Coated |
Rust Resistant Coating | (Rear Rotors) UV Coated |
Solid Or Vented Type Rotor | (Front Rotors) PVT |
Solid Or Vented Type Rotor | (Rear Rotors) vented |
Suface Finishing | (Front Pads) chamfered |
Torque Spec(NM) | (Rear Rotors) 120 |
Wear Indicator | (Front Pads) with electric wear indicator |
Width (MM) | (Front Pads) 156.3 / 155.1 |
Width (MM) | (Rear Pads) 105.5 |
Brand | Part # |
---|
Brand | Part # |
---|---|
Audi | 1K0615601N |
Audi | 5Q0615601E |
Audi | 8J0698151A |
Audi | 8J0698151F |
Skoda | 1K0615601N |
Volkswagen | 1K0615301AR |
Volkswagen | 1K0615301M |
Volkswagen | 1K0615601N |
Volkswagen | 5Q0615601E |
