Description

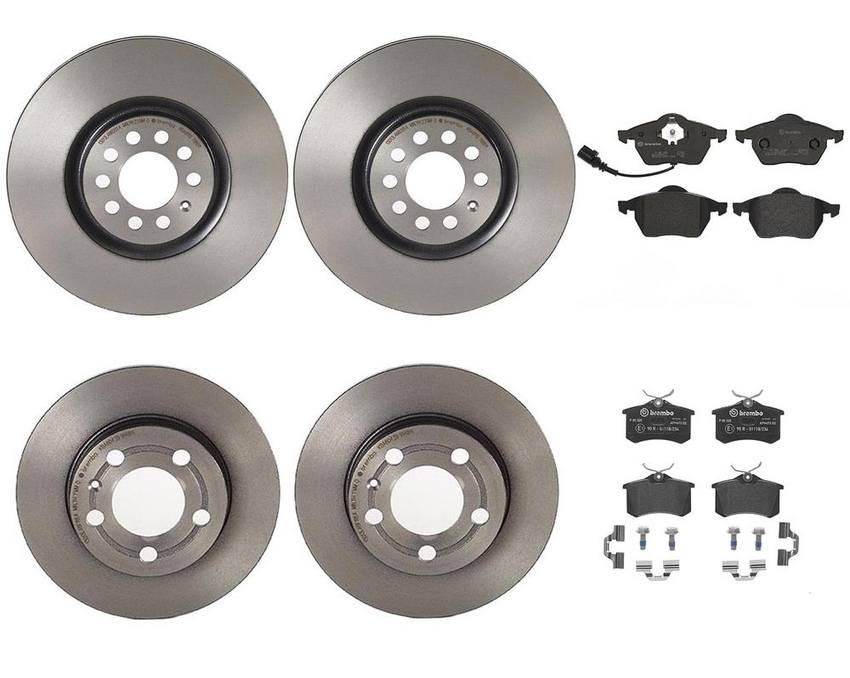

Kit Includes:

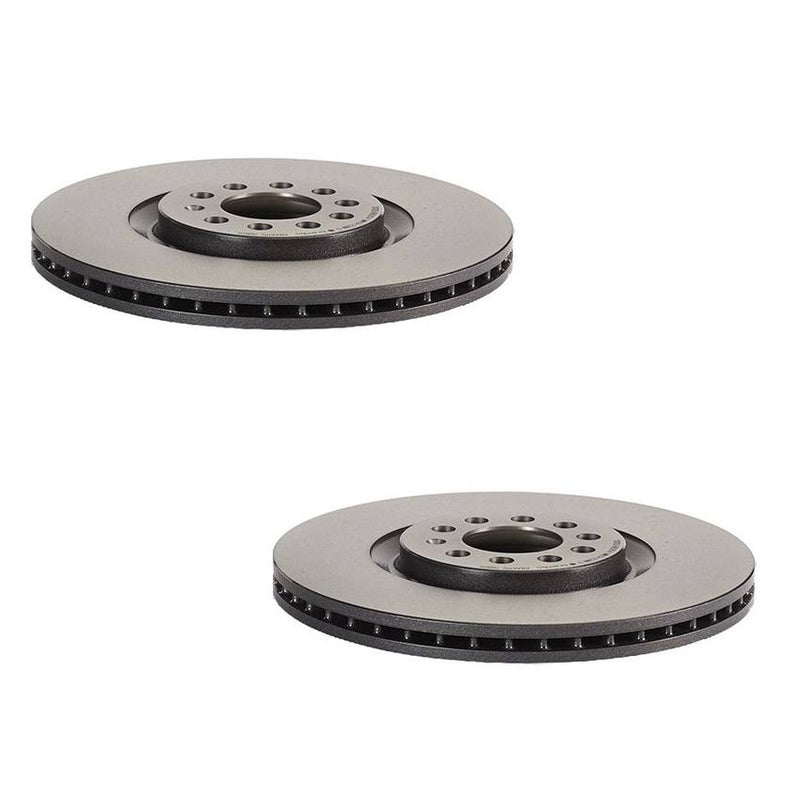

2 x Brembo 09.7880.11 Front Disc Brake Rotors - 312mm, Vented, Coated
1 x Brembo P85045 Front Disc Brake Pad Set Low-Met with Electric Wear Indicator

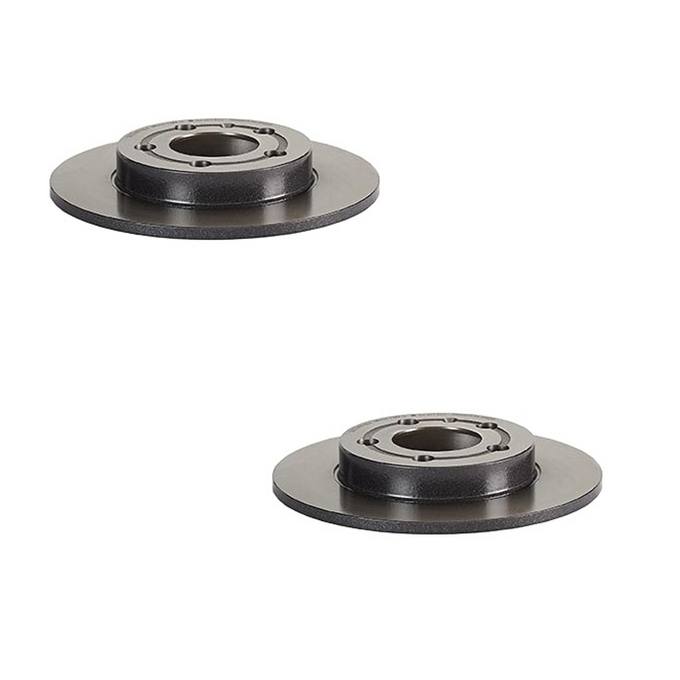

2 x Brembo 08.9148.11 Rear Disc Brake Rotors - 239mm, Solid, Coated
1 x Brembo P85020 Rear Disc Brake Pad Set Low-Met
| Brake System | (Front Pads) Teves |
| Brake System | (Rear Pads) Lucas |
| Centering Diameter (MM) | (Front Rotors) 65 |
| Centering Diameter (MM) | (Rear Rotors) 65 |
| Features | (Rear Pads) with hardware |
| Fixing Screws | (Front Rotors) included |
| Fixing Screws | (Rear Rotors) included |
| Friction Material Composition | (Pads) Low-Metallic |
| Height (MM) | (Front Pads) 74.2 |
| Height (MM) | (Front Rotors) 34.2 |
| Height (MM) | (Rear Pads) 53 |
| Height (MM) | (Rear Rotors) 40.3 |
| Material | (Front Rotors) High Carbon |
| Material | (Rear Rotors) Grey Cast Iron |
| Minimum Thickness (MM) | (Front Rotors) 23 |
| Minimum Thickness (MM) | (Rear Rotors) 7 |
| Nominal Thickness (MM) | (Front Pads) 19.6/20.8 |
| Nominal Thickness (MM) | (Front Rotors) 25 |
| Nominal Thickness (MM) | (Rear Pads) 17.2 |
| Nominal Thickness (MM) | (Rear Rotors) 9 |
| Number of Holes | (Front Rotors) 5 |
| Number of Holes | (Rear Rotors) 5 |
| Outside Diameter (MM) | (Front Rotors) 312 |
| Outside Diameter (MM) | (Rear Rotors) 239 |
| Rust Resistant Coating | (Front Rotors) UV Coated |
| Rust Resistant Coating | (Rear Rotors) UV Coated |
| Solid Or Vented Type Rotor | (Front Rotors) vented |
| Solid Or Vented Type Rotor | (Rear Rotors) solid |
| Suface Finishing | (Rear Pads) chamfered |
| Torque Spec(NM) | (Front Rotors) 120 |
| Torque Spec(NM) | (Rear Rotors) 120 |
| Wear Indicator | (Front Pads) with electric wear indicator |
| Width (MM) | (Front Pads) 156.5 |
| Width (MM) | (Rear Pads) 87 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 1J0615601D |
| Audi | 1J0698151K |
| Audi | 1J0698151L |
| Audi | 1J0698151M |
| Audi | 1J0698451D |
| Audi | 1J0698451E |
| Audi | 1J0698451J |
| Audi | 1J0698451L |
| Audi | 1J0698451N |
| Audi | 1J0698451P |
| Audi | 1K0698451J |
| Audi | 3A0615116A |
| Audi | 3A0615116B |
| Audi | 3A0615151 |
| Audi | 3A0698151 |
| Audi | 3A0698151A |
| Audi | 3B0698451 |
| Audi | 4B0698451 |
| Audi | 4B0698451B |
| Audi | 4B0698451C |
| Audi | 4B0698451E |
| Audi | 4D0698151C |
| Audi | 4D0698451C |
| Audi | 5C0698451A |
| Audi | 5K0298451B |
| Audi | 5Q0698451C |
| Audi | 6C0698451A |
| Audi | 8E0698451 |
| Audi | 8E0698451A |
| Audi | 8E0698451B |
| Audi | 8L0615301 |
| Audi | 8N0615301A |
| Audi | 8N0698151 |
| Audi | 8N0698151A |
| Audi | 8N0698151C |
| Audi | 8N0698151E |
| Seat | 8N0615301A |
| Skoda | 1J0615601D |
| Skoda | 8N0615301A |
| Volkswagen | 1E0698451 |
| Volkswagen | 1E0698451B |
| Volkswagen | 1E0698451C |
| Volkswagen | 1E0698451E |
| Volkswagen | 1E0698451G |
| Volkswagen | 1H0690451 |
| Volkswagen | 1H0690451A |
| Volkswagen | 1H0698451 |
| Volkswagen | 1H0698451A |
| Volkswagen | 1H0698451D |
| Volkswagen | 1J0615601D |
| Volkswagen | 1J0698151K |
| Volkswagen | 1J0698151L |
| Volkswagen | 1J0698151M |
| Volkswagen | 1J0698451 |
| Volkswagen | 1J0698451A |
| Volkswagen | 1J0698451B |
| Volkswagen | 1J0698451C |
| Volkswagen | 1J0698451D |
| Volkswagen | 1J0698451E |
| Volkswagen | 1J0698451F |
| Volkswagen | 1J0698451G |
| Volkswagen | 1J0698451J |
| Volkswagen | 1J0698451K |
| Volkswagen | 1J0698451P |
| Volkswagen | 1J0698451R |
| Volkswagen | 1K0698451J |
| Volkswagen | 3A0615116A |
| Volkswagen | 3A0615116B |
| Volkswagen | 3A0615151 |
| Volkswagen | 3A0698151 |
| Volkswagen | 3A0698151A |
| Volkswagen | 3B0698451 |
| Volkswagen | 425056 |
| Volkswagen | 4B0698451A |
| Volkswagen | 4B0698451B |
| Volkswagen | 4B0698451E |
| Volkswagen | 5C0698451 |
| Volkswagen | 5C0698451B |
| Volkswagen | 5C0698451C |
| Volkswagen | 5C098451A |
| Volkswagen | 5C698451A |
| Volkswagen | 5K0298451B |
| Volkswagen | 5Q0698451C |
| Volkswagen | 5Q0698451E |
| Volkswagen | 6C0698451A |
| Volkswagen | 7D0698451J |
| Volkswagen | 8E0698451 |
| Volkswagen | 8E0698451A |
| Volkswagen | 8E0698451K |
| Volkswagen | 8L0615301 |
| Volkswagen | 8N0615301A |
| Volkswagen | 8N0698151 |
| Volkswagen | 8N0698151A |
| Volkswagen | 8N0698151C |
| Volkswagen | 8N0698151E |
