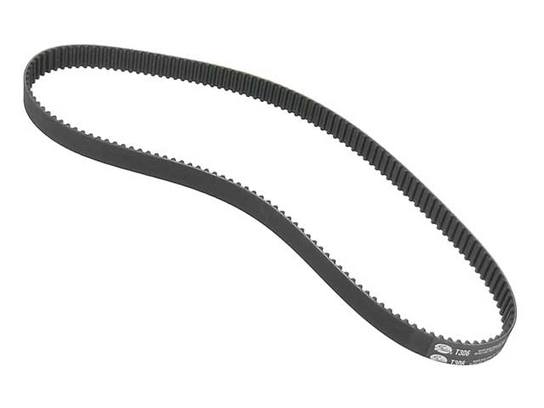

Audi VW Engine Timing Belt 06B109119A – Gates T306

SKU: BBSC_T306
No reviews

Price:
Sale price$23.49
Stock:

Description

An engine timing belt synchronizes the rotation of the crankshaft and the camshafts for proper valve timing. Proper timing prevents the engine’s pistons from striking the valves, as well as correct intake and exhaust timing during combustion. The timing belt is toothed on the inside to connect with the engine’s camshaft pulleys, rollers and tensioners. Timing belts must be replaced after a recommended amount of distance, as they stretch and fatigue with use. Failure to replace the timing belt at manual recommended intervals (generally around 60,000 miles) can result in catastrophic engine failure. euromotiv is your source for genuine and aftermarket timing belts should you need to purchase a replacement.

Belt Material HSN
Cog Quantity 150
Color Black
Cord Material Fiberglass
OE Comparison Rating OE Exact
Pitch .315
Pitch 8
Pitch Length (in) 47.26
Pitch Length (mm) 1200
Profile Type Curvilinear (II)
Timing Marks No
Top Width .906
Top Width 23
Type Automotive Timing Belt
Brand Part #
Brand Part #
ACDelco TB306
Beck/Arnley 026-1036 / 0261036
Carquest T306
Cloyes B306
Continental Belt TB306
Continental Belt TB908
ContiTech TB306
ContiTech TB908
Dayco 94777
Dayco 95306
Dayco 95306FN
Flennor TB306
Goodyear 40306
Goodyear CD-306 / CD306
NAPA Belts/Hose 250306
Size Designation OHC306
Volkswagen 06B109119A
Volkswagen 06B109119B
Volkswagen 06B109119F
