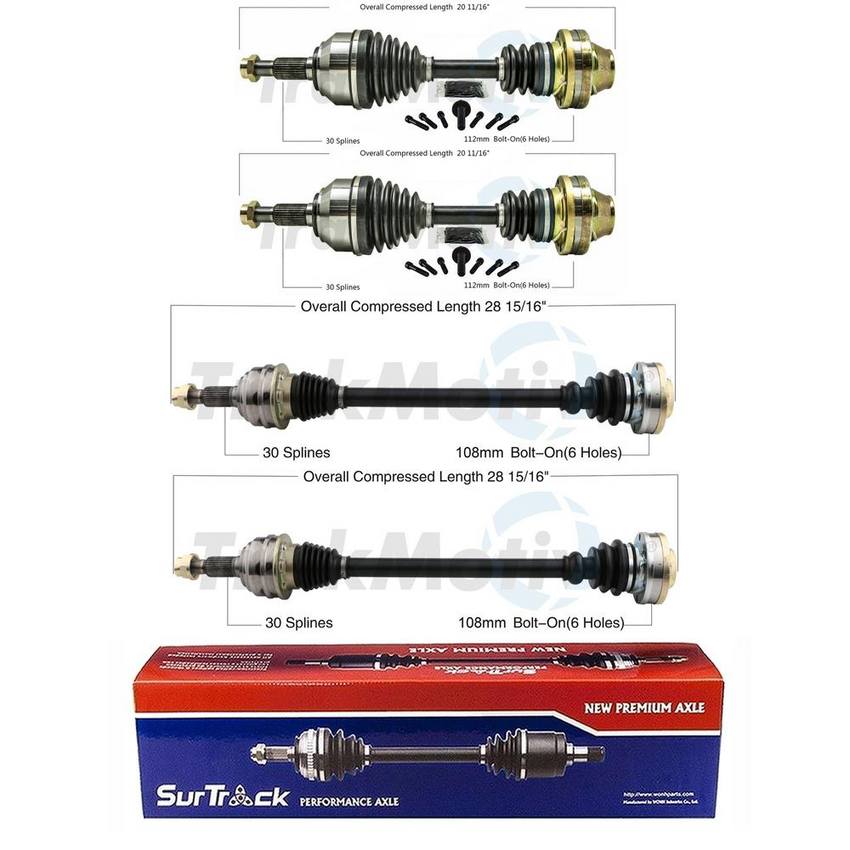

VW CV Axle Shaft Kit – Front and Rear 7L0501201B – Aftermarket 3991467KIT
$380.99
???? DIRECT SHIP
Estimated dispatch: 2-3 days
Stock for this product is located at our supplier. Please contact us directly for lead times.
EARN REWARD POINTS
Purchasing this product will earn you points to redeem on future purchases. You can check your current points here.
BEST PRICE GUARANTEE
We will meet or beat the competition!
QUESTIONS? WE'RE HERE TO HELP!
If you have any question or just need a suggestion, please contact us :)
| Abs Tone Ring Included | (Front CV Axle Shaft) No |
| Abs Tone Ring Included | (Rear CV Axle Shaft) No |
| Axle Nut Head Type | (Front CV Axle Shaft) Hex |
| Axle Nut Head Type | (Rear CV Axle Shaft) Hex |
| Axle Nut Height (in) | (Front CV Axle Shaft) 6/7 |
| Axle Nut Height (in) | (Rear CV Axle Shaft) 1 1/9 |
| Axle Nut Height (mm) | (Front CV Axle Shaft) 21.5 |
| Axle Nut Height (mm) | (Rear CV Axle Shaft) 28 |
| Axle Nut Hex Size (in) | (Front CV Axle Shaft) 1 3/7 |
| Axle Nut Hex Size (in) | (Rear CV Axle Shaft) 1 3/7 |
| Axle Nut Hex Size (mm) | (Front CV Axle Shaft) 36 |
| Axle Nut Hex Size (mm) | (Rear CV Axle Shaft) 36 |
| Axle Nut Included | (Front CV Axle Shaft) Yes |
| Axle Nut Included | (Rear CV Axle Shaft) Yes |
| Axle Nut Length (in) | (Front CV Axle Shaft) 1 5/8 |
| Axle Nut Length (in) | (Rear CV Axle Shaft) 1 5/8 |
| Axle Nut Length (mm) | (Front CV Axle Shaft) 41.5 |
| Axle Nut Length (mm) | (Rear CV Axle Shaft) 41.5 |
| Axle Nut Locking Type | (Front CV Axle Shaft) Self-Lock |
| Axle Nut Locking Type | (Rear CV Axle Shaft) Self-Lock |
| Axle Nut Thread Size | (Front CV Axle Shaft) M24*1.5 |
| Axle Nut Thread Size | (Rear CV Axle Shaft) M24*1.5 |
| Boot Material | (Front CV Axle Shaft) Neoprene |
| Boot Material | (Rear CV Axle Shaft) Neoprene |
| Inboard Bolt Head Size (in) | (Front CV Axle Shaft) 1/3 |
| Inboard Bolt Head Size (mm) | (Front CV Axle Shaft) 8 |
| Inboard Bolt Head Type | (Front CV Axle Shaft) Allen |
| Inboard Bolt Length (in) | (Front CV Axle Shaft) 2 1/6 |
| Inboard Bolt Length (mm) | (Front CV Axle Shaft) 55 |
| Inboard Bolt Thread Size | (Front CV Axle Shaft) M10*1.5 |
| Inboard Joint Type | (Front CV Axle Shaft) Bolt-On |
| Inboard Joint Type | (Rear CV Axle Shaft) Bolt-On |
| Inboard Shaft Connection Style | (Front CV Axle Shaft) Bolt-On |
| Inboard Shaft Connection Style | (Rear CV Axle Shaft) Bolt-On |
| New Or Remanufactured | (Front CV Axle Shaft) New |
| New Or Remanufactured | (Rear CV Axle Shaft) New |
| Number Of Inboard Joint Bolt Holes | (Front CV Axle Shaft) 6 |
| Number Of Inboard Shaft Bolts | (Front CV Axle Shaft) 6 |
| Number Of Outboard Splines | (Front CV Axle Shaft) 30 |
| Number Of Outboard Splines | (Rear CV Axle Shaft) 30 |
| Outboard Joint Type | (Front CV Axle Shaft) Conventional |
| Outboard Joint Type | (Rear CV Axle Shaft) Conventional |
| Outboard Shaft Connection Style | (Front CV Axle Shaft) Spline |
| Outboard Shaft Connection Style | (Rear CV Axle Shaft) Conventional |
| Overall Compressed Length (in) | (Front CV Axle Shaft) 20.67 |
| Overall Compressed Length (in) | (Rear CV Axle Shaft) 28.94 |
| Overall Compressed Length (mm) | (Front CV Axle Shaft) 525 |
| Overall Compressed Length (mm) | (Rear CV Axle Shaft) 735 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| OEM Part Number | 7L0407271E |
| OEM Part Number | 7L0407271F |
| OEM Part Number | 7L0501201B |
