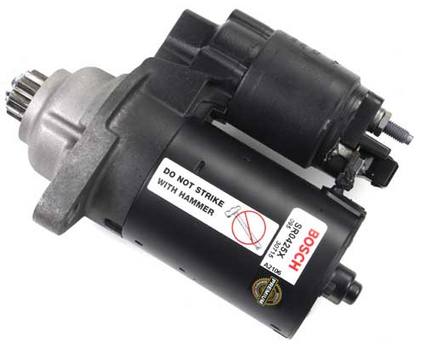

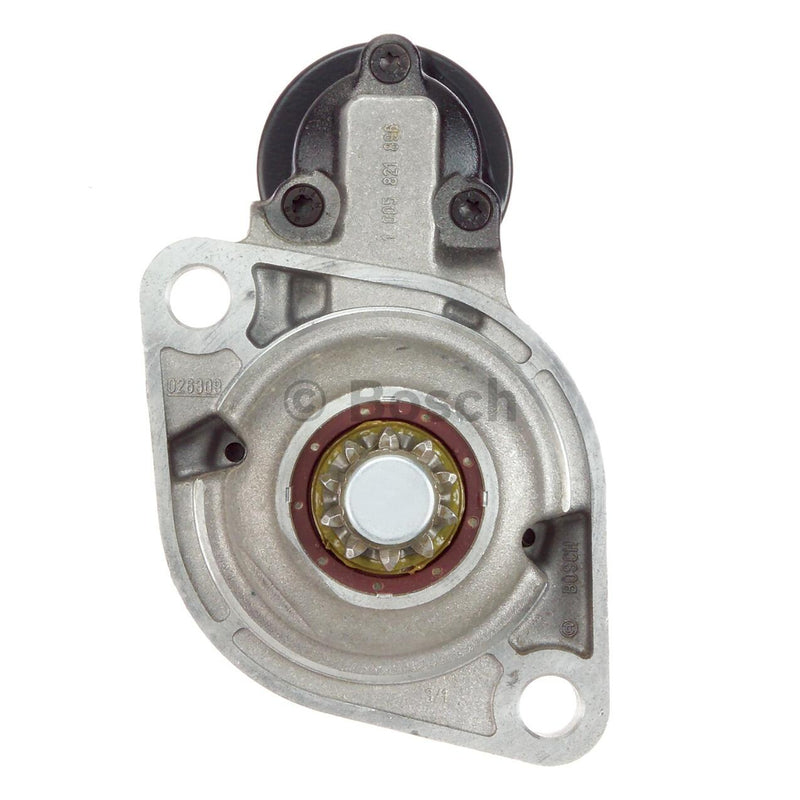

Audi VW Starter Motor (New) 02A911023LX – Bosch SR0425N

Audi VW Starter Motor (New) 02A911023LX – Bosch SR0425N

BOSCH

Stock: Out of Stock ℹ️ This item is currently unavailable. Check back later.

SKU SR0425N
Sold out
$162.09 - $162.09
$162.09
$162.09 - $162.09
$162.09

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

Are you hearing a click-click-click followed by horrible screeching when you turn your key? You probably need to replace your starter motor. When functioning properly, current from the main battery is applied to the starter motor’s solenoid, and the solenoid engages a lever that pushes out the drive pinion on the starter driveshaft to mesh the pinion with the starter ring gear on the engine flywheel. A lot going on for sure. If this process breaks down, you aren’t going anywhere without a hefty jump-start or a new starter motor. The most common reason for starter failure is electrical corrosion on the contacts, and internal motor brushes.

Cases Per Pallet (ORLY) 125
Mounting Bolt Hole Quantity 2
Mounting Hardware Included No
Mounting Shims Included No
New Or Remanufacured New
Nose Cone Material Aluminum
Nose Cone Type Closed Nose
OE Recommendation Yes
Original Equipment Manufacturer Names BO
Power Rating 1.1
Product Length 8.287402 in
Solenoid Attached Yes
Starter Finish Aluminum
Starter Rotation Counterclockwise
Tooth Quantity 10
Unit(s) per Car Qty (ORLY) 1
Voltage 12
Brand Part #
Brand Part #
Audi 02A911023L
Volkswagen 02A911023L
Volkswagen 02M911023A
Brand Part #
Audi 02A911023L
Volkswagen 02A911023L
Volkswagen 02M911023A

This part also goes by the following cross reference.

Cross Reference Part Number:
