VW Brakes Kit – Pads & Rotors Front and Rear (288mm/272mm) (Ceramic) 8V0698151G – Brembo 4055562KIT

VW Brakes Kit – Pads & Rotors Front and Rear (288mm/272mm) (Ceramic) 8V0698151G – Brembo 4055562KIT

BREMBO

Stock: Out of Stock ℹ️ This item is currently unavailable. Check back later.

SKU 4055562KIT
Sold out
$334.99 - $334.99
$334.99
$334.99 - $334.99
$334.99

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

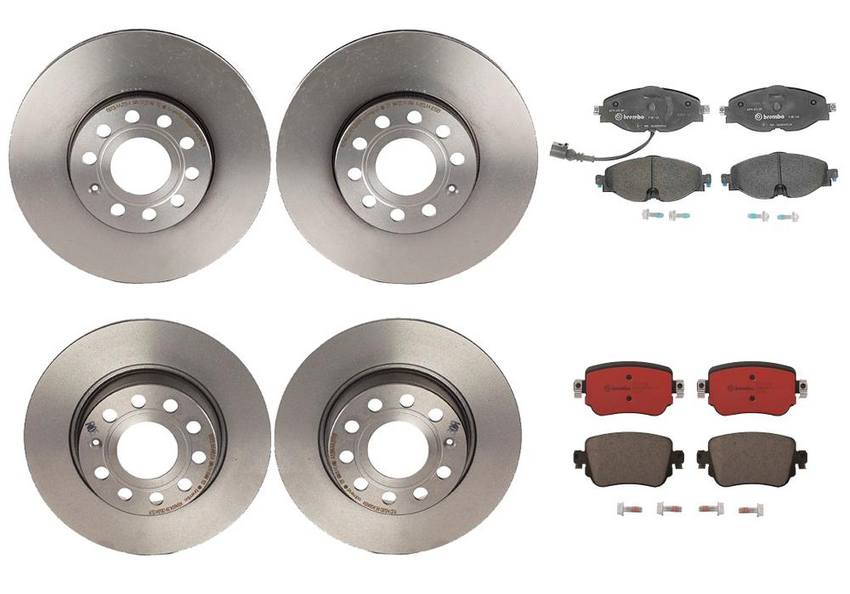

Kit Includes:

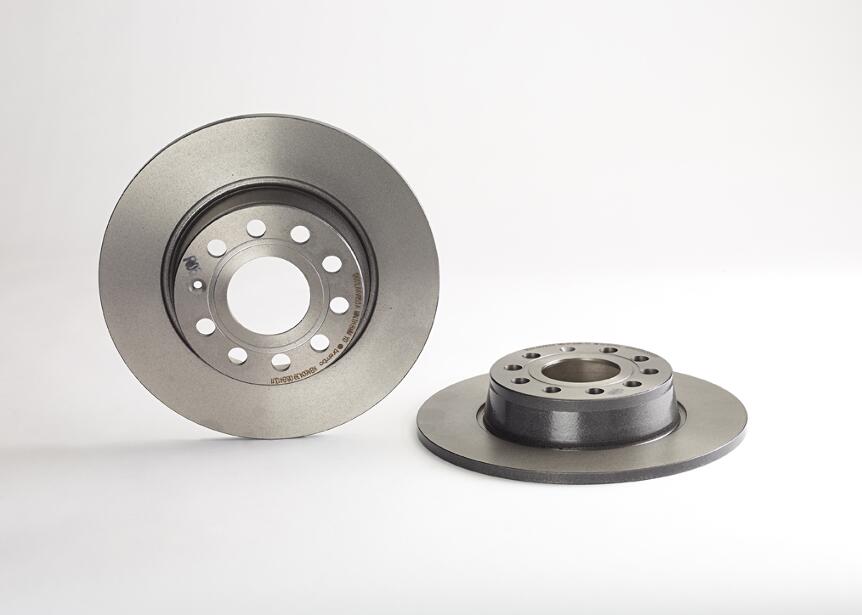

2 x Brembo 08.B413.11 Rear Disc Brake Rotors - 272mm , Solid , Coated

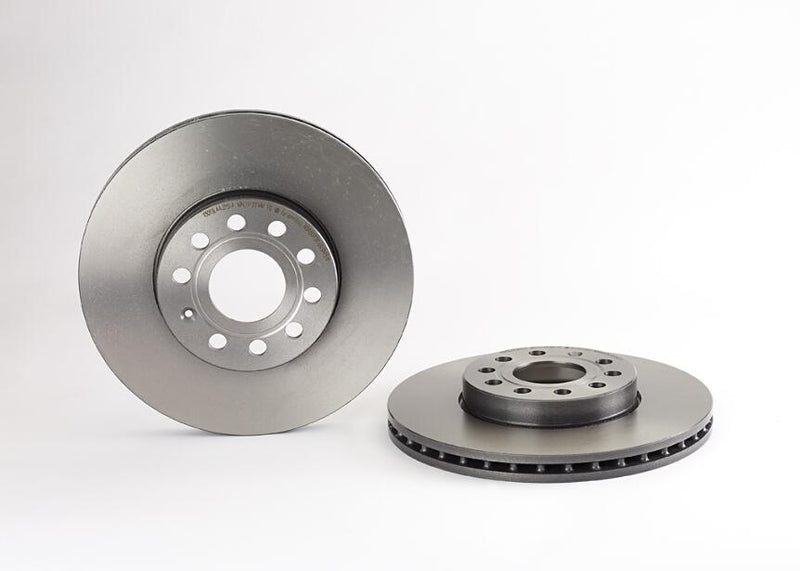

2 x Brembo 09.9145.11 Front Disc Brake Rotors - 288mm , Vented , Coated

1 x Brembo P85126N Front Disc Brake Pad Set Ceramic; with Wear Sensor

1 x Brembo P85140N Rear Disc Brake Pad Set Ceramic

Brake System (Front Pads) TRW
Brake System (Rear Pads) TRW
Centring Diameter (Front Rotors) 65
Centring Diameter (Rear Rotors) 65
Coated (Front Rotors) UV Coated
Coated (Rear Rotors) UV Coated
Diameter (mm) (Front Rotors) 288
Diameter (mm) (Rear Rotors) 272
Features (Front Pads) with hardware and brake caliprer screws
Features (Rear Pads) w/ith hardware
Fixing Screws (Front Rotors) Included
Fixing Screws (Rear Rotors) Included
FMSI Number (Front Pads) D1760 8989
FMSI Number (Rear Pads) D1779 9008
Friction Material Composition (Pads) Ceramic
Height (MM) (Front Pads) 64.5
Height (mm) (Front Rotors) 49.5
Height (MM) (Rear Pads) 52.2
Height (mm) (Rear Rotors) 48.2
Material (Front Rotors) Grey Cast Iron
Material (Rear Rotors) Grey Cast Iron
Minimum Thickness (mm) (Front Rotors) 22
Minimum Thickness (mm) (Rear Rotors) 8
Nominal Thickness (MM) (Front Pads) 20.3
Nominal Thickness (mm) (Front Rotors) 25
Nominal Thickness (MM) (Rear Pads) 17.5
Nominal Thickness (mm) (Rear Rotors) 10
Number of Holes (Front Rotors) 5
Number of Holes (Rear Rotors) 5
Suface Finishing (Rear Pads) chamfered
Torque Spec (Nm) (Front Rotors) 120
Torque Spec (Nm) (Rear Rotors) 120
Ventilation Type (Front Rotors) vented
Ventilation Type (Rear Rotors) solid
Wear Indicator (Front Pads) with Electric wear indicator
Wear Indicator (Rear Pads) with acoustic wear indicator
Width (MM) (Front Pads) 160.1
Width (MM) (Rear Pads) 104.10
Brand Part #
Brand Part #
Audi 1K0615301K
Audi 1K0615301T
Audi 1K0615601AA
Audi 5C0615301A
Audi 5C0615301D
Audi 5Q0615301H
Audi 5Q0615601D
Audi 6R0615601
Audi 7N0698451A
Audi 8U0698451F
Audi 8V0698151D
Audi 8V0698151G
Seat 1K0615301K
Seat 1K0615301T
Skoda 1K0615301K
Skoda 1K0615301T
Volkswagen 1K0615301T
Volkswagen 1K0615601AA
Volkswagen 561615601
Volkswagen 561615601A
Volkswagen 5C0615301A
Volkswagen 5C0615301D
Volkswagen 5Q0615301H
Volkswagen 5Q0615601D
Volkswagen 5Q0698451B
Volkswagen 7N0698451A
Volkswagen 8U0698451F
Volkswagen 8V0698151D
Volkswagen 8V0698151G

This part also goes by the following cross reference.

Cross Reference Part Number:
