Audi VW Brakes Kit – Pads & Rotors Front and Rear (312mm/232mm) (Ceramic) 8N0615301A – Brembo 4175550KIT

Audi VW Brakes Kit – Pads & Rotors Front and Rear (312mm/232mm) (Ceramic) 8N0615301A – Brembo 4175550KIT

BREMBO

Stock: Out of Stock ℹ️ This item is currently unavailable. Check back later.

SKU 4175550KIT
Sold out
$267.99 - $267.99
$267.99
$267.99 - $267.99
$267.99

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

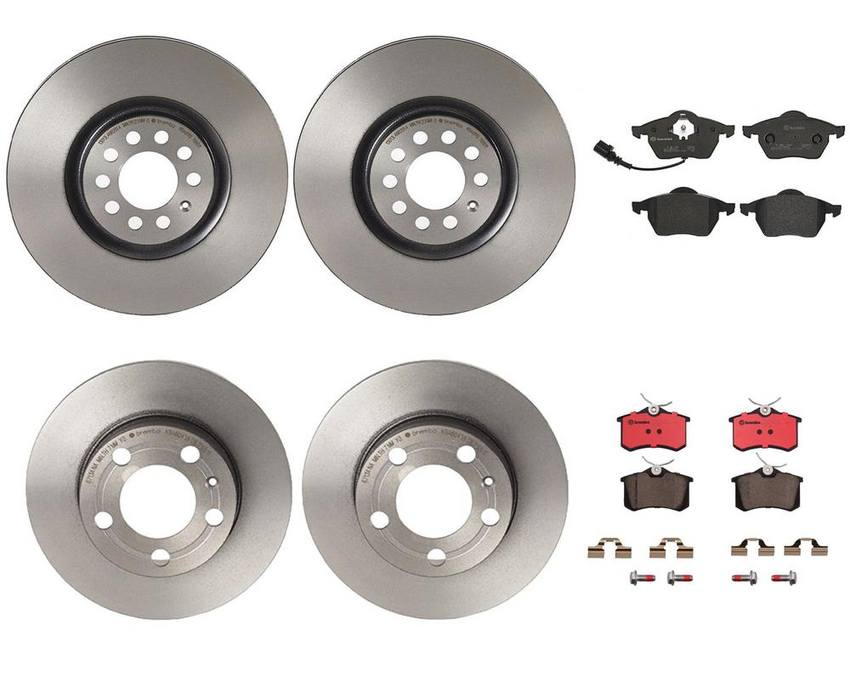

Kit Includes:

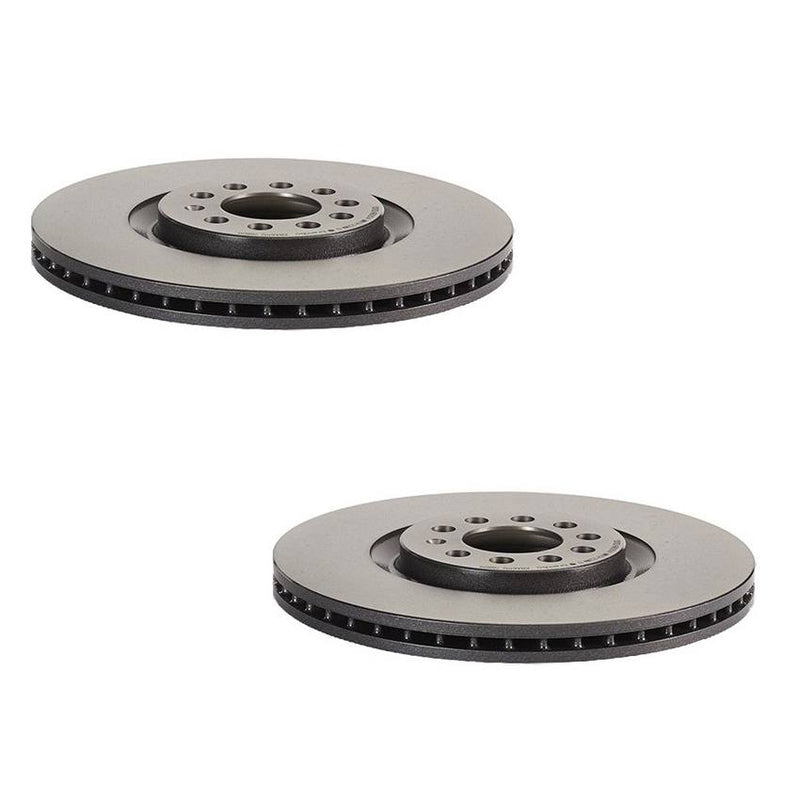

2 x Brembo 09.7880.11 Front Disc Brake Rotors - 312mm, Vented, Coated

1 x Brembo P85045N Front Ceramic Disc Brake Pad Set with Electric Wear Indicator

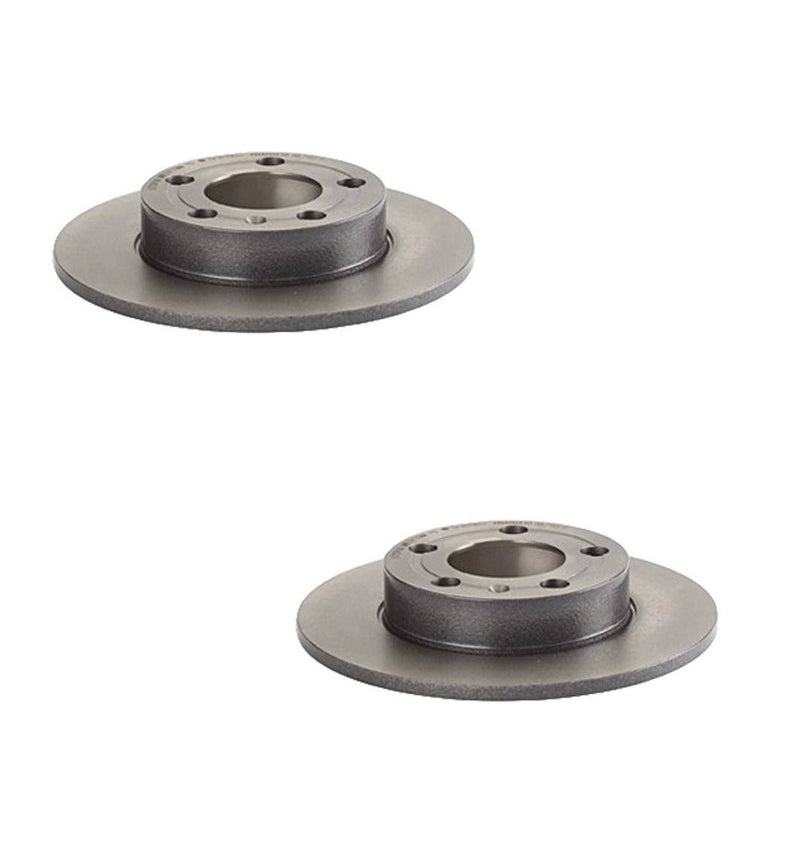

2 x Brembo 08.7165.11 Rear Disc Brake Rotors - 232mm, Solid, Coated

1 x Brembo P85020N Rear Disc Brake Pad Set Ceramic

Brake System (Front Pads) Teves
Brake System (Rear Pads) Lucas
Centering Diameter (MM) (Front Rotors) 65
Centering Diameter (MM) (Rear Rotors) 65
Features (Rear Pads) with hardware
Fixing Screws (Front Rotors) included
Fixing Screws (Rear Rotors) included
Friction Material Composition (Pads) Ceramic
Height (MM) (Front Pads) 74
Height (MM) (Front Rotors) 34.2
Height (MM) (Rear Pads) 52.8
Height (MM) (Rear Rotors) 40.3
Material (Front Rotors) High Carbon
Material (Rear Rotors) Grey Cast Iron
Minimum Thickness (MM) (Front Rotors) 23
Minimum Thickness (MM) (Rear Rotors) 7
Nominal Thickness (MM) (Front Pads) 19.6/20.8
Nominal Thickness (MM) (Front Rotors) 25
Nominal Thickness (MM) (Rear Pads) 17.2
Nominal Thickness (MM) (Rear Rotors) 9
Number of Holes (Front Rotors) 5
Number of Holes (Rear Rotors) 5
Outside Diameter (MM) (Front Rotors) 312
Outside Diameter (MM) (Rear Rotors) 232
Rust Resistant Coating (Front Rotors) UV Coated
Rust Resistant Coating (Rear Rotors) UV Coated
Solid Or Vented Type Rotor (Front Rotors) vented
Solid Or Vented Type Rotor (Rear Rotors) solid
Suface Finishing (Rear Pads) chamfered
Torque Spec(NM) (Front Rotors) 120
Torque Spec(NM) (Rear Rotors) 120
Wear Indicator (Front Pads) with electric wear indicator
Width (MM) (Front Pads) 156.4
Width (MM) (Rear Pads) 87
Brand Part #
Brand Part #
Audi 1J0615601
Audi 1J0615601C
Audi 1J0615601Q
Audi 1J0698151K
Audi 1J0698151L
Audi 1J0698151M
Audi 1J0698451D
Audi 1J0698451E
Audi 1J0698451J
Audi 1J0698451L
Audi 1J0698451N
Audi 1J0698451P
Audi 1K0698451J
Audi 3A0615116A
Audi 3A0615116B
Audi 3A0615151
Audi 3A0698151
Audi 3A0698151A
Audi 3B0698451
Audi 4B0698451
Audi 4B0698451B
Audi 4B0698451C
Audi 4B0698451E
Audi 4D0698151C
Audi 4D0698451C
Audi 5C0698451A
Audi 5K0298451B
Audi 5Q0698451C
Audi 6C0698451A
Audi 8E0698451
Audi 8E0698451A
Audi 8E0698451B
Audi 8L0615301
Audi 8N0615301A
Audi 8N0698151
Audi 8N0698151A
Audi 8N0698151C
Audi 8N0698151E
Seat 1J0615601
Seat 1J0615601C
Seat 8N0615301A
Skoda 1J0615601
Skoda 1J0615601C
Skoda 8N0615301A
Volkswagen 1E0698451
Volkswagen 1E0698451B
Volkswagen 1E0698451C
Volkswagen 1E0698451E
Volkswagen 1E0698451G
Volkswagen 1H0690451
Volkswagen 1H0690451A
Volkswagen 1H0698451
Volkswagen 1H0698451A
Volkswagen 1H0698451D
Volkswagen 1J0615601
Volkswagen 1J0615601C
Volkswagen 1J0615601P
Volkswagen 1J0698151K
Volkswagen 1J0698151L
Volkswagen 1J0698151M
Volkswagen 1J0698451
Volkswagen 1J0698451A
Volkswagen 1J0698451B
Volkswagen 1J0698451C
Volkswagen 1J0698451D
Volkswagen 1J0698451E
Volkswagen 1J0698451F
Volkswagen 1J0698451G
Volkswagen 1J0698451J
Volkswagen 1J0698451K
Volkswagen 1J0698451P
Volkswagen 1J0698451R
Volkswagen 1K0698451J
Volkswagen 2Q0615601H
Volkswagen 3A0615116A
Volkswagen 3A0615116B
Volkswagen 3A0615151
Volkswagen 3A0698151
Volkswagen 3A0698151A
Volkswagen 3B0698451
Volkswagen 425056
Volkswagen 4B0698451A
Volkswagen 4B0698451B
Volkswagen 4B0698451E
Volkswagen 5C0698451
Volkswagen 5C0698451B
Volkswagen 5C0698451C
Volkswagen 5C098451A
Volkswagen 5C698451A
Volkswagen 5K0298451B
Volkswagen 5Q0698451C
Volkswagen 5Q0698451E
Volkswagen 6C0698451A
Volkswagen 7D0698451J
Volkswagen 8E0698451
Volkswagen 8E0698451A
Volkswagen 8E0698451K
Volkswagen 8L0615301
Volkswagen 8N0615301A
Volkswagen 8N0698151
Volkswagen 8N0698151A
Volkswagen 8N0698151C
Volkswagen 8N0698151E

This part also goes by the following cross reference.

Cross Reference Part Number:
