Chassis Mounted Splitter Bracket set for VW MK7 & 7.5 GTI / R (V1)

Chassis Mounted Splitter Bracket set for VW MK7 & 7.5 GTI / R (V1)

Stock: In Stock – Available to Order ℹ️ This item is available for order and will ship soon.

SKU 2020052-7CB-SR-NB
$430.00 - $575.00
$499.00
$430.00 - $575.00
$499.00

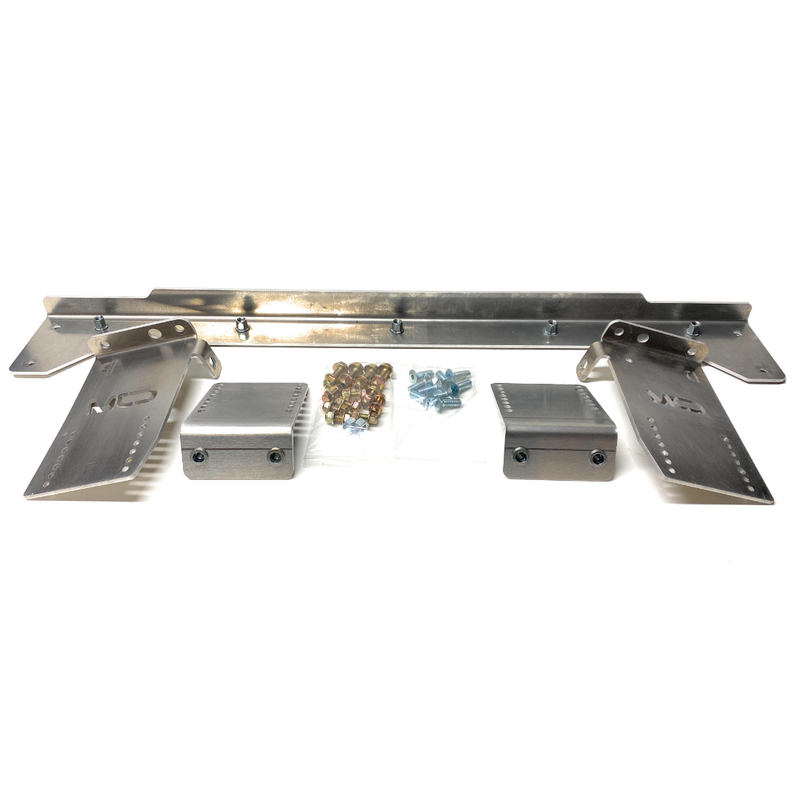

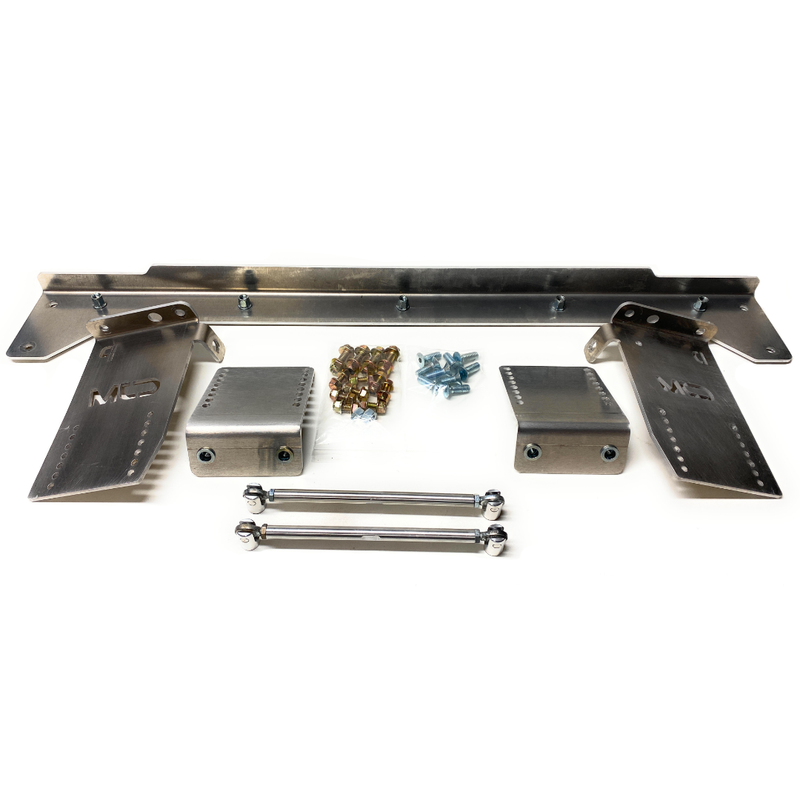

Bracket Assembly: Brackets, Hardware, Side Rods
Add coating: Raw Aluminum
Add install tools: None

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

This product ships in 3-5 business days. Made in USA - 2 year warranty on mfg defects. Wear and tear is not covered.

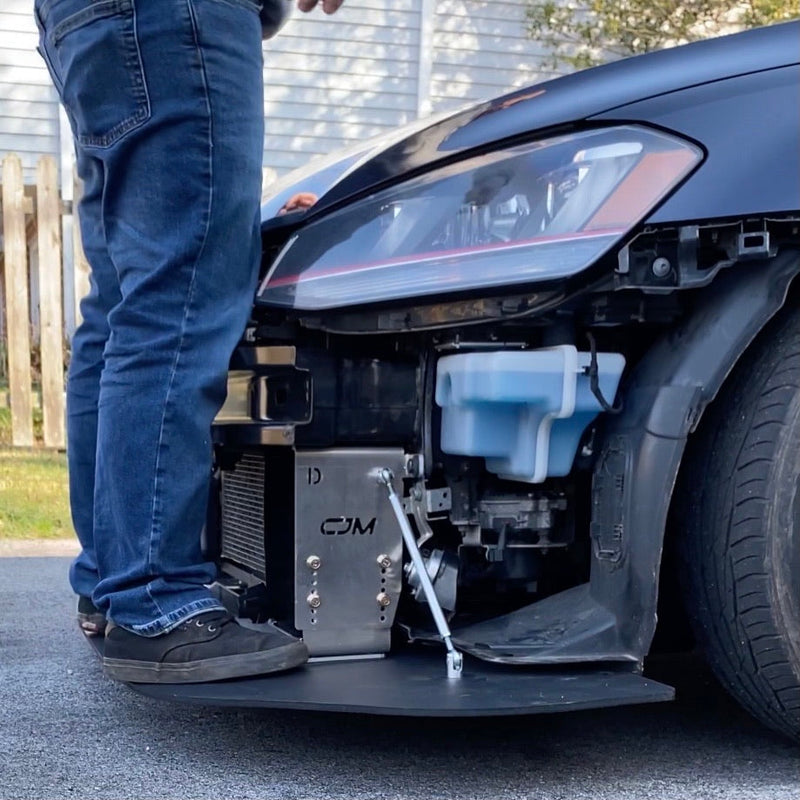

Our brackets provide an easy way for you to build your own splitter blade out of plywood or other sheet materials at home.

Product details and install notes:

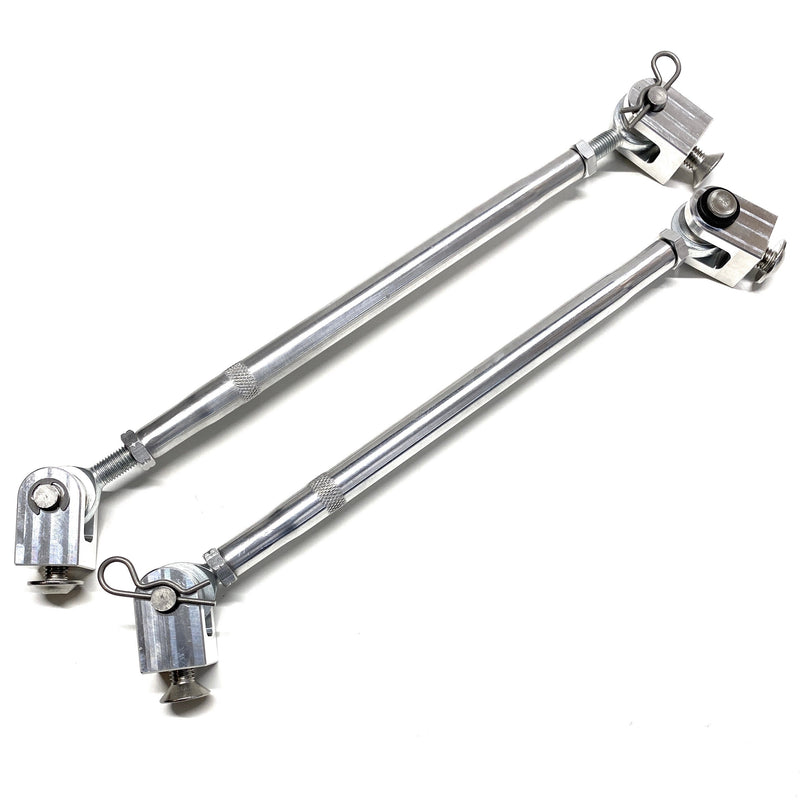

  • Brackets & rods come in raw aluminum unless powder coating option is selected. Expect some visible imperfections in the material from the cutting and bending process on raw aluminum parts.
  • This will not fit with any front mount/twin intercooler.
  • If you are on air ride, do not air-out onto these brackets, they are not designed to support the weight of an entire vehicle.
  • Requires drilling two 11mm holes in the crash bar for install.

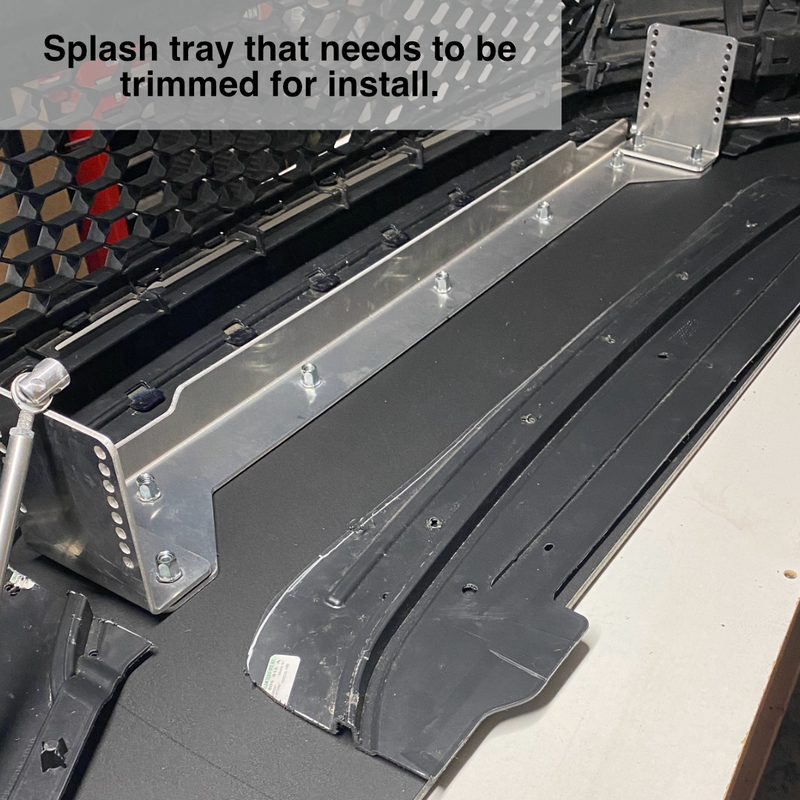

  • Trimming the factory splash guard under the bumper is required (not the bumper).
  • Brackets are made of 5052 Aluminum, these mount to 6 points of the chassis/crash bar to hold a splitter blade of your choice. They are height adjustable in 12mm increments.

Our brackets are designed to support up to 100mm of stick-out past the OEM bumper. Exceeding this size can result in damage to the brackets, impact bar or frame horn.


Weights:

Full assembly - 18 lbs

Ships in a 40'x8'x8' box



We also offer all of the parts in this kit individually here.

This part also goes by the following cross reference.

Cross Reference Part Number:
