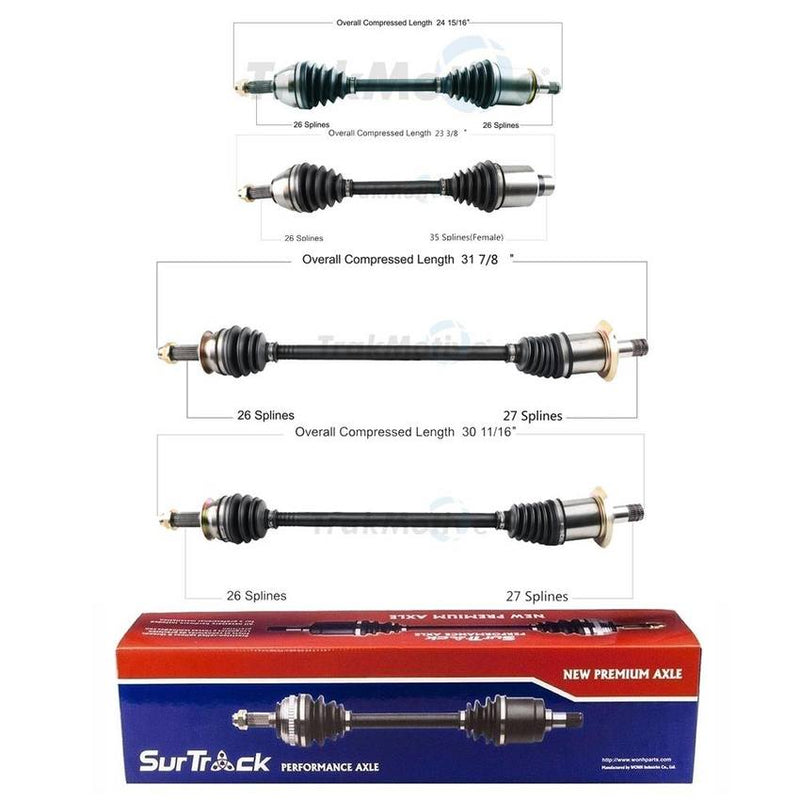

Mini CV Axle Shaft Kit – Front and Rear – Aftermarket 3991256KIT

Stock: In Stock – Available to Order ℹ️ This item is available for order and will ship soon.

SKU 3991256KIT
Original price $327.99 - Original price $327.99
Original price
$327.99
$327.99 - $327.99
Current price $327.99

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

Kit Includes:

1 x Surtrack BM-8127 Front Left AAR CV Axle Shaft

1 x Surtrack BM-8123 Front Right AAR CV Axle Shaft

1 x Surtrack BM-8125 Rear Left CV Axle Shaft

1 x Surtrack BM-8126 Rear Right CV Axle Shaft

Axle Nut Head Type (Front Left AAR CV Axle Shaft) Hex
Axle Nut Head Type (Front Right AAR CV Axle Shaft) Hex
Axle Nut Head Type (Rear Left CV Axle Shaft) Hex
Axle Nut Head Type (Rear Right CV Axle Shaft) Hex
Axle Nut Height (in) (Front Left AAR CV Axle Shaft) 0.79
Axle Nut Height (in) (Front Right AAR CV Axle Shaft) 0.79
Axle Nut Height (in) (Rear Right CV Axle Shaft) 0.79
Axle Nut Height (mm) (Front Left AAR CV Axle Shaft) 20
Axle Nut Height (mm) (Front Right AAR CV Axle Shaft) 20
Axle Nut Height (mm) (Rear Right CV Axle Shaft) 20
Axle Nut Hex Size (in) (Front Left AAR CV Axle Shaft) 1.25
Axle Nut Hex Size (in) (Front Right AAR CV Axle Shaft) 1.25
Axle Nut Hex Size (in) (Rear Left CV Axle Shaft) 1.25
Axle Nut Hex Size (in) (Rear Right CV Axle Shaft) 1.25
Axle Nut Hex Size (mm) (Front Left AAR CV Axle Shaft) 31.8
Axle Nut Hex Size (mm) (Front Right AAR CV Axle Shaft) 31.8
Axle Nut Hex Size (mm) (Rear Left CV Axle Shaft) 31.8
Axle Nut Hex Size (mm) (Rear Right CV Axle Shaft) 31.8
Axle Nut Included (Front Left AAR CV Axle Shaft) Yes
Axle Nut Included (Front Right AAR CV Axle Shaft) Yes
Axle Nut Included (Rear Left CV Axle Shaft) Yes
Axle Nut Included (Rear Right CV Axle Shaft) Yes
Axle Nut Length (in) (Front Left AAR CV Axle Shaft) 1.45
Axle Nut Length (in) (Front Right AAR CV Axle Shaft) 1.45
Axle Nut Length (in) (Rear Left CV Axle Shaft) 1.45
Axle Nut Length (in) (Rear Right CV Axle Shaft) 1.45
Axle Nut Length (mm) (Front Left AAR CV Axle Shaft) 36.72
Axle Nut Length (mm) (Front Right AAR CV Axle Shaft) 36.72
Axle Nut Length (mm) (Rear Left CV Axle Shaft) 36.72
Axle Nut Length (mm) (Rear Right CV Axle Shaft) 36.72
Axle Nut Locking Type (Front Left AAR CV Axle Shaft) Stake
Axle Nut Locking Type (Front Right AAR CV Axle Shaft) Stake
Axle Nut Locking Type (Rear Left CV Axle Shaft) Stake
Axle Nut Locking Type (Rear Right CV Axle Shaft) Stake
Axle Nut Thread Size (Front Left AAR CV Axle Shaft) M22*1.5
Axle Nut Thread Size (Front Right AAR CV Axle Shaft) M22*1.5
Axle Nut Thread Size (Rear Left CV Axle Shaft) M22*1.5
Axle Nut Thread Size (Rear Right CV Axle Shaft) M22*1.5
Boot Material (Front Left AAR CV Axle Shaft) Neoprene
Boot Material (Front Right AAR CV Axle Shaft) Neoprene
Boot Material (Rear Left CV Axle Shaft) Neoprene
Boot Material (Rear Right CV Axle Shaft) Neoprene
Inboard Joint Type (Front Left AAR CV Axle Shaft) Male
Inboard Joint Type (Front Right AAR CV Axle Shaft) Female
Inboard Joint Type (Rear Left CV Axle Shaft) Male
Inboard Joint Type (Rear Right CV Axle Shaft) Male
Inboard Shaft Connection Style (Front Left AAR CV Axle Shaft) Spline
Inboard Shaft Connection Style (Front Right AAR CV Axle Shaft) Spline
Inboard Shaft Connection Style (Rear Left CV Axle Shaft) Spline
Inboard Shaft Connection Style (Rear Right CV Axle Shaft) Spline
New Or Remanufactured (Front Left AAR CV Axle Shaft) New
New Or Remanufactured (Front Right AAR CV Axle Shaft) New
New Or Remanufactured (Rear Left CV Axle Shaft) New
New Or Remanufactured (Rear Right CV Axle Shaft) New
Number Of Inboard Splines (Front Left AAR CV Axle Shaft) 26
Number Of Inboard Splines (Front Right AAR CV Axle Shaft) 35
Number Of Inboard Splines (Rear Left CV Axle Shaft) 27
Number Of Inboard Splines (Rear Right CV Axle Shaft) 27
Number Of Outboard Splines (Front Left AAR CV Axle Shaft) 26
Number Of Outboard Splines (Front Right AAR CV Axle Shaft) 26
Number Of Outboard Splines (Rear Left CV Axle Shaft) 26
Number Of Outboard Splines (Rear Right CV Axle Shaft) 26
Outboard Joint Type (Front Left AAR CV Axle Shaft) Conventional
Outboard Joint Type (Front Right AAR CV Axle Shaft) Conventional
Outboard Joint Type (Rear Left CV Axle Shaft) Conventional
Outboard Joint Type (Rear Right CV Axle Shaft) Conventional
Outboard Shaft Connection Style (Front Left AAR CV Axle Shaft) Spline
Outboard Shaft Connection Style (Front Right AAR CV Axle Shaft) Spline
Outboard Shaft Connection Style (Rear Left CV Axle Shaft) Spline
Outboard Shaft Connection Style (Rear Right CV Axle Shaft) Spline
Overall Compressed Length (in) (Front Left AAR CV Axle Shaft) 24.96
Overall Compressed Length (in) (Front Right AAR CV Axle Shaft) 23.39
Overall Compressed Length (in) (Rear Left CV Axle Shaft) 31.85
Overall Compressed Length (in) (Rear Right CV Axle Shaft) 30.67
Overall Compressed Length (mm) (Front Left AAR CV Axle Shaft) 634
Overall Compressed Length (mm) (Front Right AAR CV Axle Shaft) 594
Overall Compressed Length (mm) (Rear Left CV Axle Shaft) 809
Overall Compressed Length (mm) (Rear Right CV Axle Shaft) 779

This part also goes by the following cross reference.

Cross Reference Part Number:
