| Abs Ring Tooth Count |
(Front Left CV Axle Shaft) 45 |
| Abs Ring Tooth Count |
(Front Right CV Axle Shaft) 45 |
| Abs Ring Tooth Count |
(Rear CV Axle Shaft) 45 |
| Abs Ring Type |
(Front Left CV Axle Shaft) Window |
| Abs Ring Type |
(Front Right CV Axle Shaft) Window |
| Abs Ring Type |
(Rear CV Axle Shaft) Window |
| Abs Tone Ring Included |
(Rear CV Axle Shaft) Yes |
| Abs Tone Ring Included |
(Front Left CV Axle Shaft) Yes |
| Abs Tone Ring Included |
(Front Right CV Axle Shaft) Yes |
| Axle Bolt Hex Size (mm) |
(Front Left CV Axle Shaft) 27 |
| Axle Bolt Hex Size (mm) |
(Front Right CV Axle Shaft) 27 |
| Axle Bolt Hex Size (mm) |
(Rear CV Axle Shaft) 23.8 |
| Axle Bolt Length (mm) |
(Front Left CV Axle Shaft) 97 |
| Axle Bolt Length (mm) |
(Front Right CV Axle Shaft) 97 |
| Axle Bolt Length (mm) |
(Rear CV Axle Shaft) 85 |
| Axle Bolt Thread Size |
(Front Left CV Axle Shaft) M16*1.5 |
| Axle Bolt Thread Size |
(Front Right CV Axle Shaft) M16*1.5 |
| Axle Bolt Thread Size |
(Rear CV Axle Shaft) M14*1.5 |
| Axle Nut Included |
(Front Left CV Axle Shaft) No |
| Axle Nut Included |
(Front Right CV Axle Shaft) No |
| Axle Nut Included |
(Rear CV Axle Shaft) No |
| Boot Material |
(Front Left CV Axle Shaft) Neoprene |
| Boot Material |
(Front Right CV Axle Shaft) Neoprene |
| Boot Material |
(Rear CV Axle Shaft) Neoprene |
| Inboard Bolt Head Size (in) |
(Rear CV Axle Shaft) 1/4 |
| Inboard Bolt Head Size (mm) |
(Rear CV Axle Shaft) 6 |
| Inboard Bolt Head Type |
(Rear CV Axle Shaft) Allen |
| Inboard Bolt Length (in) |
(Rear CV Axle Shaft) 2 2/9 |
| Inboard Bolt Length (mm) |
(Rear CV Axle Shaft) 56.5 |
| Inboard Bolt Thread Size |
(Rear CV Axle Shaft) M8*1.25 |
| Inboard Joint Type |
(Front Left CV Axle Shaft) Flange |
| Inboard Joint Type |
(Front Right CV Axle Shaft) Flange |
| Inboard Joint Type |
(Rear CV Axle Shaft) Bolt-On |
| Inboard Shaft Connection Style |
(Front Left CV Axle Shaft) Flange |
| Inboard Shaft Connection Style |
(Front Right CV Axle Shaft) Flange |
| Inboard Shaft Connection Style |
(Rear CV Axle Shaft) Bolt-On |
| New Or Remanufactured |
(Front Left CV Axle Shaft) New |
| New Or Remanufactured |
(Front Right CV Axle Shaft) New |
| New Or Remanufactured |
(Rear CV Axle Shaft) New |
| Number Of Bolt Holes |
(Front Left CV Axle Shaft) 1 |
| Number Of Bolt Holes |
(Front Right CV Axle Shaft) 1 |
| Number Of Bolt Holes |
(Rear CV Axle Shaft) 1 |
| Number Of Inboard Joint Bolt Holes |
(Rear CV Axle Shaft) 6 |
| Number Of Inboard Shaft Bolts |
(Rear CV Axle Shaft) 6 |
| Number Of Outboard Shaft Bolts |
(Front Left CV Axle Shaft) 1 |
| Number Of Outboard Shaft Bolts |
(Front Right CV Axle Shaft) 1 |
| Number Of Outboard Shaft Bolts |
(Rear CV Axle Shaft) 1 |
| Number Of Outboard Splines |
(Front Left CV Axle Shaft) 38 |
| Number Of Outboard Splines |
(Front Right CV Axle Shaft) 38 |
| Number Of Outboard Splines |
(Rear CV Axle Shaft) 33 |
| Outboard Joint Type |
(Front Left CV Axle Shaft) Audi Style Spline Bolt |
| Outboard Joint Type |
(Front Right CV Axle Shaft) Audi Style Spline Bolt |
| Outboard Joint Type |
(Rear CV Axle Shaft) Audi Style Spline Bolt |
| Outboard Shaft Connection Style |
(Front Left CV Axle Shaft) Audi Style Spline Bolt |
| Outboard Shaft Connection Style |
(Front Right CV Axle Shaft) Audi Style Spline Bolt |
| Outboard Shaft Connection Style |
(Rear CV Axle Shaft) Audi Style Spline Bolt |

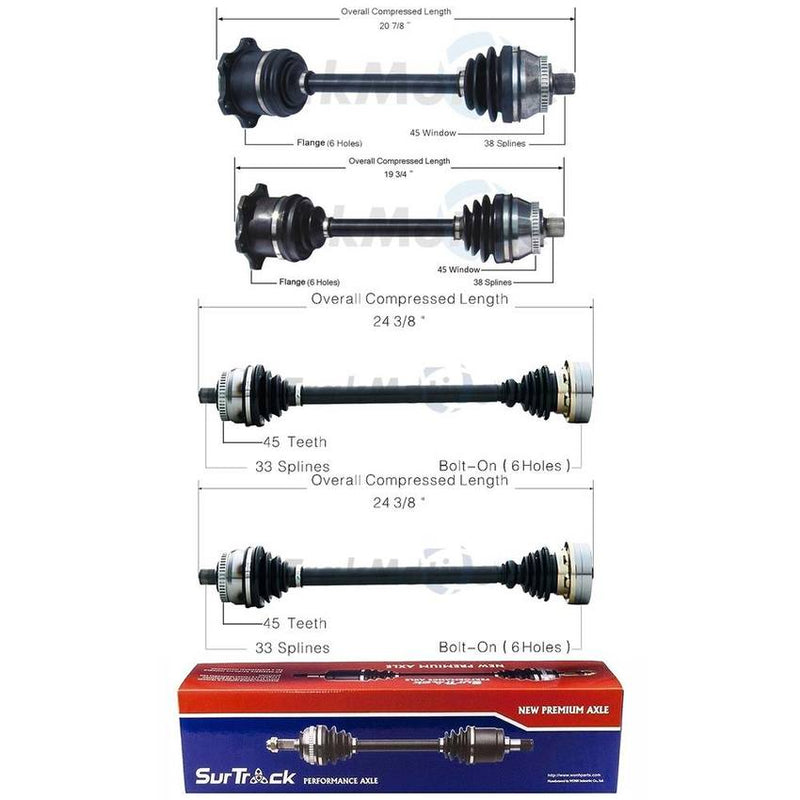

| Overall Compressed Length (in) |
(Front Left CV Axle Shaft) 20.87 |
| Overall Compressed Length (in) |
(Front Right CV Axle Shaft) 19.74 |
| Overall Compressed Length (in) |
(Rear CV Axle Shaft) 24.37 |
| Overall Compressed Length (mm) |
(Front Left CV Axle Shaft) 530 |
| Overall Compressed Length (mm) |
(Front Right CV Axle Shaft) 501.5 |
| Overall Compressed Length (mm) |
(Rear CV Axle Shaft) 619 |
