VW CV Axle Shaft Kit – Front and Rear 857407272A – Aftermarket 3991379KIT

VW CV Axle Shaft Kit – Front and Rear 857407272A – Aftermarket 3991379KIT

Stock: In Stock – Available to Order ℹ️ This item is available for order and will ship soon.

SKU 3991379KIT
$257.99 - $257.99
$257.99
$257.99 - $257.99
$257.99

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

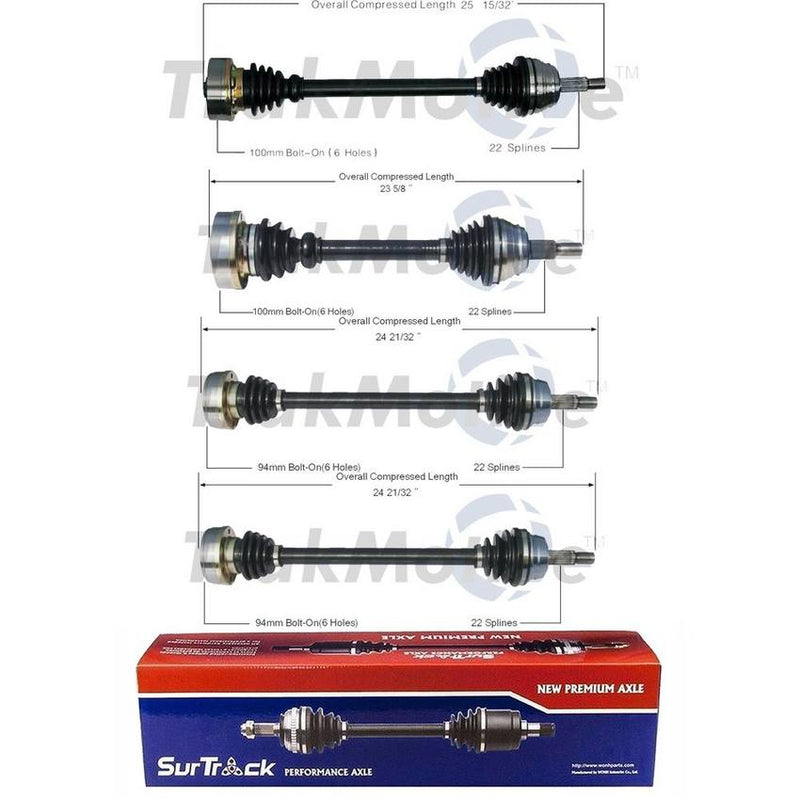

Kit Includes:

1 x Surtrack AD-8048 Front Left CV Axle Shaft

1 x Surtrack AD-8037 Rear Right CV Axle Shaft

1 x Surtrack AD-8037 Rear Left CV Axle Shaft

1 x Surtrack AD-8049 Front Right CV Axle Shaft

Abs Tone Ring Included (Front Left CV Axle Shaft) No
Abs Tone Ring Included (Front Right CV Axle Shaft) No
Abs Tone Ring Included (Rear CV Axle Shaft) No
Axle Nut Head Type (Front Left CV Axle Shaft) Hex
Axle Nut Head Type (Front Right CV Axle Shaft) Hex
Axle Nut Head Type (Rear CV Axle Shaft) Hex
Axle Nut Height (in) (Front Left CV Axle Shaft) 5/9
Axle Nut Height (in) (Front Right CV Axle Shaft) 5/9
Axle Nut Height (in) (Rear CV Axle Shaft) 5/9
Axle Nut Height (mm) (Front Left CV Axle Shaft) 14
Axle Nut Height (mm) (Front Right CV Axle Shaft) 14
Axle Nut Height (mm) (Rear CV Axle Shaft) 14
Axle Nut Hex Size (in) (Front Left CV Axle Shaft) 1 1/6
Axle Nut Hex Size (in) (Front Right CV Axle Shaft) 1 1/6
Axle Nut Hex Size (in) (Rear CV Axle Shaft) 1 1/6
Axle Nut Hex Size (mm) (Front Left CV Axle Shaft) 30
Axle Nut Hex Size (mm) (Front Right CV Axle Shaft) 30
Axle Nut Hex Size (mm) (Rear CV Axle Shaft) 30
Axle Nut Included (Front Left CV Axle Shaft) Yes
Axle Nut Included (Front Right CV Axle Shaft) Yes
Axle Nut Included (Rear CV Axle Shaft) Yes
Axle Nut Length (in) (Front Left CV Axle Shaft) 1 1/3
Axle Nut Length (in) (Front Right CV Axle Shaft) 1 1/3
Axle Nut Length (in) (Rear CV Axle Shaft) 1 1/3
Axle Nut Length (mm) (Front Left CV Axle Shaft) 34.6
Axle Nut Length (mm) (Front Right CV Axle Shaft) 34.6
Axle Nut Length (mm) (Rear CV Axle Shaft) 34.6
Axle Nut Locking Type (Front Left CV Axle Shaft) Self-Lock
Axle Nut Locking Type (Front Right CV Axle Shaft) Self-Lock
Axle Nut Locking Type (Rear CV Axle Shaft) Self-Lock
Axle Nut Thread Size (Front Left CV Axle Shaft) M20*1.5
Axle Nut Thread Size (Front Right CV Axle Shaft) M20*1.5
Axle Nut Thread Size (Rear CV Axle Shaft) M20*1.5
Boot Material (Front Left CV Axle Shaft) Neoprene
Boot Material (Front Right CV Axle Shaft) Neoprene
Boot Material (Rear CV Axle Shaft) Neoprene
Inboard Bolt Head Size (in) (Front Left CV Axle Shaft) 1/4
Inboard Bolt Head Size (in) (Front Right CV Axle Shaft) 1/4
Inboard Bolt Head Size (in) (Rear CV Axle Shaft) 1/4
Inboard Bolt Head Size (mm) (Front Left CV Axle Shaft) 6
Inboard Bolt Head Size (mm) (Front Right CV Axle Shaft) 6
Inboard Bolt Head Size (mm) (Rear CV Axle Shaft) 6
Inboard Bolt Head Type (Front Left CV Axle Shaft) Allen
Inboard Bolt Head Type (Front Right CV Axle Shaft) Allen
Inboard Bolt Head Type (Rear CV Axle Shaft) Allen
Inboard Bolt Length (in) (Front Left CV Axle Shaft) 2 2/7
Inboard Bolt Length (in) (Front Right CV Axle Shaft) 2 2/9
Inboard Bolt Length (in) (Rear CV Axle Shaft) 2 2/7
Inboard Bolt Length (mm) (Front Left CV Axle Shaft) 58
Inboard Bolt Length (mm) (Front Right CV Axle Shaft) 56.5
Inboard Bolt Length (mm) (Rear CV Axle Shaft) 58
Inboard Bolt Thread Size (Front Left CV Axle Shaft) M8*1.25
Inboard Bolt Thread Size (Front Right CV Axle Shaft) M8*1.25
Inboard Bolt Thread Size (Rear CV Axle Shaft) M8*1.25
Inboard Joint Type (Front Left CV Axle Shaft) Bolt-On
Inboard Joint Type (Front Right CV Axle Shaft) Bolt-On
Inboard Joint Type (Rear CV Axle Shaft) Bolt-On
Inboard Shaft Connection Style (Front Left CV Axle Shaft) Bolt-On
Inboard Shaft Connection Style (Front Right CV Axle Shaft) Bolt-On
Inboard Shaft Connection Style (Rear CV Axle Shaft) Bolt-On
New Or Remanufactured (Front Left CV Axle Shaft) New
New Or Remanufactured (Front Right CV Axle Shaft) New
New Or Remanufactured (Rear CV Axle Shaft) New
Number Of Inboard Joint Bolt Holes (Front Left CV Axle Shaft) 6
Number Of Inboard Joint Bolt Holes (Front Right CV Axle Shaft) 6
Number Of Inboard Joint Bolt Holes (Rear CV Axle Shaft) 6
Number Of Inboard Shaft Bolts (Front Left CV Axle Shaft) 6
Number Of Inboard Shaft Bolts (Front Right CV Axle Shaft) 6
Number Of Inboard Shaft Bolts (Rear CV Axle Shaft) 6
Number Of Outboard Splines (Front Left CV Axle Shaft) 22
Number Of Outboard Splines (Front Right CV Axle Shaft) 22
Number Of Outboard Splines (Rear CV Axle Shaft) 22
Outboard Joint Type (Front Left CV Axle Shaft) Conventional
Outboard Joint Type (Front Right CV Axle Shaft) Conventional
Outboard Joint Type (Rear CV Axle Shaft) Conventional
Outboard Shaft Connection Style (Front Left CV Axle Shaft) Conventional
Outboard Shaft Connection Style (Front Right CV Axle Shaft) Conventional
Outboard Shaft Connection Style (Rear CV Axle Shaft) Conventional
Overall Compressed Length (in) (Front Left CV Axle Shaft) 25.47
Overall Compressed Length (in) (Front Right CV Axle Shaft) 23.62
Overall Compressed Length (in) (Rear CV Axle Shaft) 24.65
Overall Compressed Length (mm) (Front Left CV Axle Shaft) 647
Overall Compressed Length (mm) (Front Right CV Axle Shaft) 600
Overall Compressed Length (mm) (Rear CV Axle Shaft) 626
Brand Part #
Brand Part #
OEM Part Number 321407271AJ
OEM Part Number 321407271AR
OEM Part Number 321407272AB
OEM Part Number 857407271A
OEM Part Number 857407272A

This part also goes by the following cross reference.

Cross Reference Part Number:
