| Abs Ring Tooth Count |
(Front Left CV Axle Shaft) 45 |
| Abs Ring Tooth Count |
(Front Right CV Axle Shaft) 45 |
| Abs Ring Tooth Count |
(Rear CV Axle Shaft) 45 |
| Abs Ring Type |
(Front Left CV Axle Shaft) Window |
| Abs Ring Type |
(Front Right CV Axle Shaft) Window |
| Abs Ring Type |
(Rear CV Axle Shaft) Window |
| Abs Tone Ring Included |
(Front Left CV Axle Shaft) Yes |
| Abs Tone Ring Included |
(Front Right CV Axle Shaft) Yes |
| Abs Tone Ring Included |
(Rear CV Axle Shaft) Yes |
| Axle Bolt Hex Size (mm) |
(Front Left CV Axle Shaft) 27 |
| Axle Bolt Hex Size (mm) |
(Front Right CV Axle Shaft) 27 |
| Axle Bolt Hex Size (mm) |
(Rear CV Axle Shaft) 17 |
| Axle Bolt Length (mm) |
(Front Left CV Axle Shaft) 97 |
| Axle Bolt Length (mm) |
(Front Right CV Axle Shaft) 97 |
| Axle Bolt Length (mm) |
(Rear CV Axle Shaft) 90 |
| Axle Bolt Thread Size |
(Front Left CV Axle Shaft) M16*1.5 |
| Axle Bolt Thread Size |
(Front Right CV Axle Shaft) M16*1.5 |
| Axle Bolt Thread Size |
(Rear CV Axle Shaft) M16*1.5 |
| Axle Nut Included |
(Front Left CV Axle Shaft) No |
| Axle Nut Included |
(Front Right CV Axle Shaft) No |
| Axle Nut Included |
(Rear CV Axle Shaft) No |
| Boot Material |
(Front Left CV Axle Shaft) Neoprene |
| Boot Material |
(Front Right CV Axle Shaft) Neoprene |
| Boot Material |
(Rear CV Axle Shaft) Neoprene |
| Inboard Joint Type |
(Front Left CV Axle Shaft) Flange |
| Inboard Joint Type |
(Front Right CV Axle Shaft) Flange |
| Inboard Joint Type |
(Rear CV Axle Shaft) Bolt-On |
| Inboard Shaft Connection Style |
(Front Left CV Axle Shaft) Flange |
| Inboard Shaft Connection Style |
(Front Right CV Axle Shaft) Flange |
| Inboard Shaft Connection Style |
(Rear CV Axle Shaft) Bolt-On |
| New Or Remanufactured |
(Front Left CV Axle Shaft) New |
| New Or Remanufactured |
(Front Right CV Axle Shaft) New |
| New Or Remanufactured |
(Rear CV Axle Shaft) New |
| Number Of Bolt Holes |
(Front Left CV Axle Shaft) 1 |
| Number Of Bolt Holes |
(Front Right CV Axle Shaft) 1 |
| Number Of Bolt Holes |
(Rear CV Axle Shaft) 6 |
| Number Of Inboard Splines |
(Rear CV Axle Shaft) / |
| Number Of Outboard Shaft Bolts |
(Front Left CV Axle Shaft) 1 |
| Number Of Outboard Shaft Bolts |
(Front Right CV Axle Shaft) 1 |
| Number Of Outboard Shaft Bolts |
(Rear CV Axle Shaft) 1 |
| Number Of Outboard Splines |
(Front Left CV Axle Shaft) 38 |
| Number Of Outboard Splines |
(Front Right CV Axle Shaft) 38 |
| Number Of Outboard Splines |
(Rear CV Axle Shaft) 38 |
| Outboard Joint Type |
(Front Left CV Axle Shaft) Audi Style Spline Bolt |
| Outboard Joint Type |
(Front Right CV Axle Shaft) Audi Style Spline Bolt |
| Outboard Joint Type |
(Rear CV Axle Shaft) Audi Style Spline Bolt |
| Outboard Shaft Connection Style |
(Front Left CV Axle Shaft) Audi Style Spline Bolt |
| Outboard Shaft Connection Style |
(Front Right CV Axle Shaft) Audi Style Spline Bolt |
| Outboard Shaft Connection Style |
(Rear CV Axle Shaft) Spline |

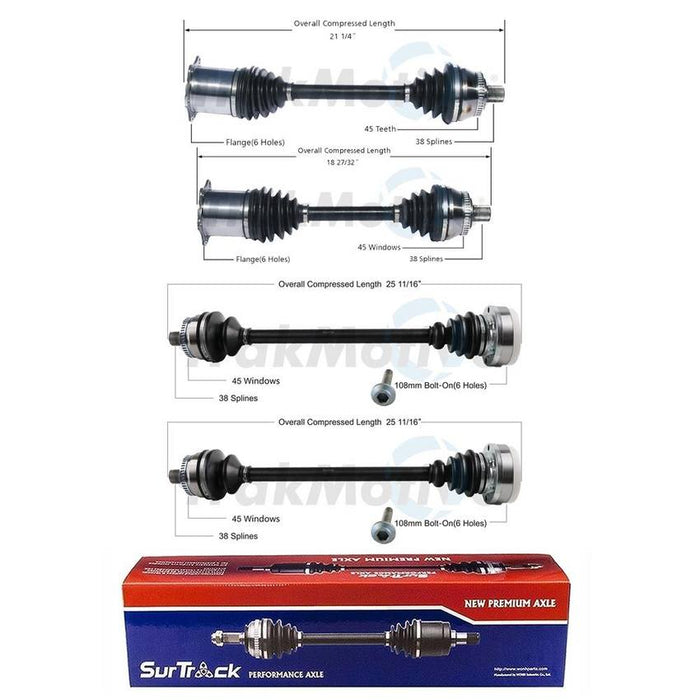

| Overall Compressed Length (in) |
(Front Left CV Axle Shaft) 21.26 |
| Overall Compressed Length (in) |
(Front Right CV Axle Shaft) 18.86 |
| Overall Compressed Length (in) |
(Rear CV Axle Shaft) 25.69 |
| Overall Compressed Length (mm) |
(Front Left CV Axle Shaft) 540 |
| Overall Compressed Length (mm) |
(Front Right CV Axle Shaft) 479 |
| Overall Compressed Length (mm) |
(Rear CV Axle Shaft) 652.5 |
