VW CV Axle Shaft Kit – Front and Rear 7L0501201B – Aftermarket 3991467KIT

VW CV Axle Shaft Kit – Front and Rear 7L0501201B – Aftermarket 3991467KIT

Stock: In Stock – Available to Order ℹ️ This item is available for order and will ship soon.

SKU 3991467KIT
$380.99 - $380.99
$380.99
$380.99 - $380.99
$380.99

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

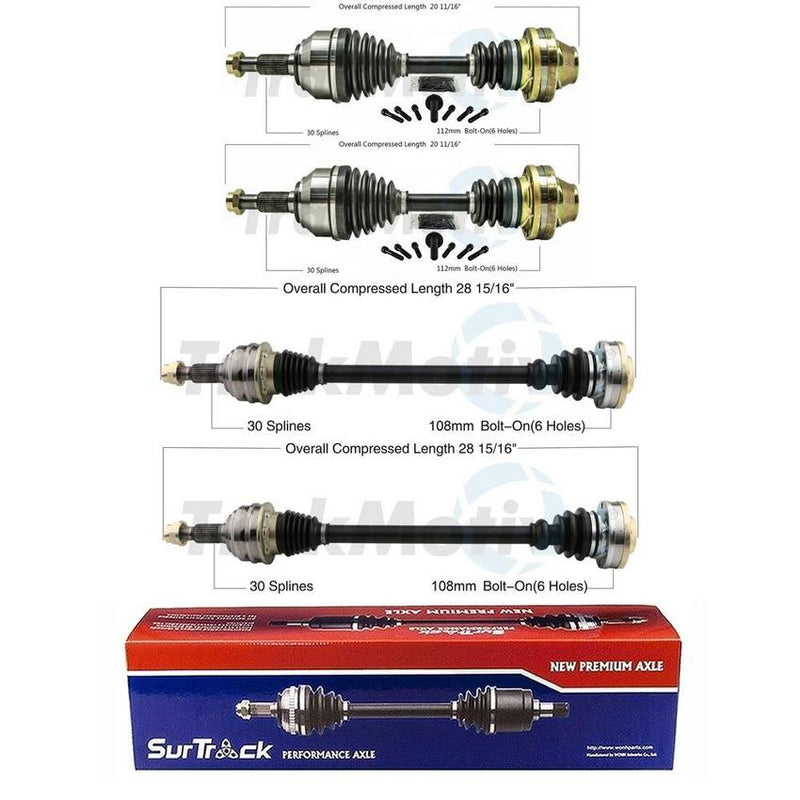

Kit Includes:

1 x Surtrack AD-8138 Front Left CV Axle Shaft

1 x Surtrack AD-8138 Front Right CV Axle Shaft

1 x Surtrack VW-8104 Rear Left CV Axle Shaft

1 x Surtrack VW-8104 Rear Right CV Axle Shaft

Abs Tone Ring Included (Front CV Axle Shaft) No
Abs Tone Ring Included (Rear CV Axle Shaft) No
Axle Nut Head Type (Front CV Axle Shaft) Hex
Axle Nut Head Type (Rear CV Axle Shaft) Hex
Axle Nut Height (in) (Front CV Axle Shaft) 6/7
Axle Nut Height (in) (Rear CV Axle Shaft) 1 1/9
Axle Nut Height (mm) (Front CV Axle Shaft) 21.5
Axle Nut Height (mm) (Rear CV Axle Shaft) 28
Axle Nut Hex Size (in) (Front CV Axle Shaft) 1 3/7
Axle Nut Hex Size (in) (Rear CV Axle Shaft) 1 3/7
Axle Nut Hex Size (mm) (Front CV Axle Shaft) 36
Axle Nut Hex Size (mm) (Rear CV Axle Shaft) 36
Axle Nut Included (Front CV Axle Shaft) Yes
Axle Nut Included (Rear CV Axle Shaft) Yes
Axle Nut Length (in) (Front CV Axle Shaft) 1 5/8
Axle Nut Length (in) (Rear CV Axle Shaft) 1 5/8
Axle Nut Length (mm) (Front CV Axle Shaft) 41.5
Axle Nut Length (mm) (Rear CV Axle Shaft) 41.5
Axle Nut Locking Type (Front CV Axle Shaft) Self-Lock
Axle Nut Locking Type (Rear CV Axle Shaft) Self-Lock
Axle Nut Thread Size (Front CV Axle Shaft) M24*1.5
Axle Nut Thread Size (Rear CV Axle Shaft) M24*1.5
Boot Material (Front CV Axle Shaft) Neoprene
Boot Material (Rear CV Axle Shaft) Neoprene
Inboard Bolt Head Size (in) (Front CV Axle Shaft) 1/3
Inboard Bolt Head Size (mm) (Front CV Axle Shaft) 8
Inboard Bolt Head Type (Front CV Axle Shaft) Allen
Inboard Bolt Length (in) (Front CV Axle Shaft) 2 1/6
Inboard Bolt Length (mm) (Front CV Axle Shaft) 55
Inboard Bolt Thread Size (Front CV Axle Shaft) M10*1.5
Inboard Joint Type (Front CV Axle Shaft) Bolt-On
Inboard Joint Type (Rear CV Axle Shaft) Bolt-On
Inboard Shaft Connection Style (Front CV Axle Shaft) Bolt-On
Inboard Shaft Connection Style (Rear CV Axle Shaft) Bolt-On
New Or Remanufactured (Front CV Axle Shaft) New
New Or Remanufactured (Rear CV Axle Shaft) New
Number Of Inboard Joint Bolt Holes (Front CV Axle Shaft) 6
Number Of Inboard Shaft Bolts (Front CV Axle Shaft) 6
Number Of Outboard Splines (Front CV Axle Shaft) 30
Number Of Outboard Splines (Rear CV Axle Shaft) 30
Outboard Joint Type (Front CV Axle Shaft) Conventional
Outboard Joint Type (Rear CV Axle Shaft) Conventional
Outboard Shaft Connection Style (Front CV Axle Shaft) Spline
Outboard Shaft Connection Style (Rear CV Axle Shaft) Conventional
Overall Compressed Length (in) (Front CV Axle Shaft) 20.67
Overall Compressed Length (in) (Rear CV Axle Shaft) 28.94
Overall Compressed Length (mm) (Front CV Axle Shaft) 525
Overall Compressed Length (mm) (Rear CV Axle Shaft) 735
Brand Part #
Brand Part #
OEM Part Number 7L0407271E
OEM Part Number 7L0407271F
OEM Part Number 7L0501201B

This part also goes by the following cross reference.

Cross Reference Part Number:
