Mini CV Axle Shaft Kit – Front and Rear 31608605467 – Aftermarket 3991529KIT

Mini CV Axle Shaft Kit – Front and Rear 31608605467 – Aftermarket 3991529KIT

Stock: In Stock – Available to Order ℹ️ This item is available for order and will ship soon.

SKU 3991529KIT
$335.99 - $335.99
$335.99
$335.99 - $335.99
$335.99

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

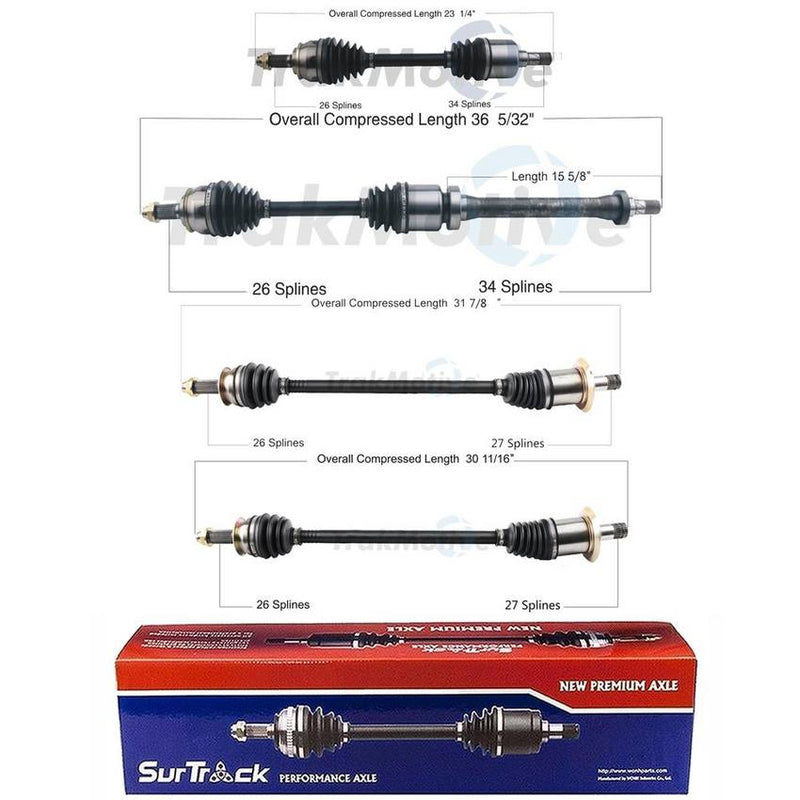

Kit Includes:

1 x Surtrack BM-8059 Front Left CV Axle Shaft

1 x Surtrack BM-8126 Rear Right CV Axle Shaft

1 x Surtrack BM-8125 Rear Left CV Axle Shaft

1 x Surtrack BM-8058 Front Right CV Axle Shaft

Abs Tone Ring Included (Front Left CV Axle Shaft) No
Abs Tone Ring Included (Front Right CV Axle Shaft) No
Axle Nut Head Type (Front Left CV Axle Shaft) Hex
Axle Nut Head Type (Front Right CV Axle Shaft) Hex
Axle Nut Head Type (Rear Left CV Axle Shaft) Hex
Axle Nut Head Type (Rear Right CV Axle Shaft) Hex
Axle Nut Height (in) (Front Left CV Axle Shaft) 4/5
Axle Nut Height (in) (Front Right CV Axle Shaft) 4/5
Axle Nut Height (in) (Rear Left CV Axle Shaft) 0.79
Axle Nut Height (in) (Rear Right CV Axle Shaft) 0.79
Axle Nut Height (mm) (Front Left CV Axle Shaft) 20
Axle Nut Height (mm) (Front Right CV Axle Shaft) 20
Axle Nut Height (mm) (Rear Left CV Axle Shaft) 20
Axle Nut Height (mm) (Rear Right CV Axle Shaft) 20
Axle Nut Hex Size (in) (Front Left CV Axle Shaft) 1 1/4
Axle Nut Hex Size (in) (Front Right CV Axle Shaft) 1 1/4
Axle Nut Hex Size (in) (Rear Left CV Axle Shaft) 1.25
Axle Nut Hex Size (in) (Rear Right CV Axle Shaft) 1.25
Axle Nut Hex Size (mm) (Front Left CV Axle Shaft) 31.8
Axle Nut Hex Size (mm) (Front Right CV Axle Shaft) 31.8
Axle Nut Hex Size (mm) (Rear Left CV Axle Shaft) 31.8
Axle Nut Hex Size (mm) (Rear Right CV Axle Shaft) 31.8
Axle Nut Included (Front Left CV Axle Shaft) Yes
Axle Nut Included (Front Right CV Axle Shaft) Yes
Axle Nut Included (Rear Left CV Axle Shaft) Yes
Axle Nut Included (Rear Right CV Axle Shaft) Yes
Axle Nut Length (in) (Front Left CV Axle Shaft) 1 1/3
Axle Nut Length (in) (Front Right CV Axle Shaft) 1 1/3
Axle Nut Length (in) (Rear Left CV Axle Shaft) 1.45
Axle Nut Length (in) (Rear Right CV Axle Shaft) 1.45
Axle Nut Length (mm) (Front Left CV Axle Shaft) 34.4
Axle Nut Length (mm) (Front Right CV Axle Shaft) 34.4
Axle Nut Length (mm) (Rear Left CV Axle Shaft) 36.72
Axle Nut Length (mm) (Rear Right CV Axle Shaft) 36.72
Axle Nut Locking Type (Front Left CV Axle Shaft) Stake
Axle Nut Locking Type (Front Right CV Axle Shaft) Stake
Axle Nut Locking Type (Rear Left CV Axle Shaft) Stake
Axle Nut Locking Type (Rear Right CV Axle Shaft) Stake
Axle Nut Thread Size (Front Left CV Axle Shaft) M22*1.5
Axle Nut Thread Size (Front Right CV Axle Shaft) M22*1.5
Axle Nut Thread Size (Rear Left CV Axle Shaft) M22*1.5
Axle Nut Thread Size (Rear Right CV Axle Shaft) M22*1.5
Boot Material (Front Left CV Axle Shaft) Neoprene
Boot Material (Front Right CV Axle Shaft) Neoprene
Boot Material (Rear Left CV Axle Shaft) Neoprene
Boot Material (Rear Right CV Axle Shaft) Neoprene
Inboard Joint Type (Front Left CV Axle Shaft) Male
Inboard Joint Type (Front Right CV Axle Shaft) Male
Inboard Joint Type (Rear Left CV Axle Shaft) Male
Inboard Joint Type (Rear Right CV Axle Shaft) Male
Inboard Shaft Connection Style (Front Left CV Axle Shaft) Male
Inboard Shaft Connection Style (Front Right CV Axle Shaft) Male
Inboard Shaft Connection Style (Rear Left CV Axle Shaft) Spline
Inboard Shaft Connection Style (Rear Right CV Axle Shaft) Spline
New Or Remanufactured (Front Left CV Axle Shaft) New
New Or Remanufactured (Front Right CV Axle Shaft) New
New Or Remanufactured (Rear Left CV Axle Shaft) New
New Or Remanufactured (Rear Right CV Axle Shaft) New
Number Of Inboard Splines (Front Left CV Axle Shaft) 34
Number Of Inboard Splines (Front Right CV Axle Shaft) 34
Number Of Inboard Splines (Rear Left CV Axle Shaft) 27
Number Of Inboard Splines (Rear Right CV Axle Shaft) 27
Number Of Outboard Splines (Front Left CV Axle Shaft) 26
Number Of Outboard Splines (Front Right CV Axle Shaft) 26
Number Of Outboard Splines (Rear Left CV Axle Shaft) 26
Number Of Outboard Splines (Rear Right CV Axle Shaft) 26
Outboard Joint Type (Front Left CV Axle Shaft) Conventional
Outboard Joint Type (Front Right CV Axle Shaft) Conventional
Outboard Joint Type (Rear Left CV Axle Shaft) Conventional
Outboard Joint Type (Rear Right CV Axle Shaft) Conventional
Outboard Shaft Connection Style (Front Left CV Axle Shaft) Conventional
Outboard Shaft Connection Style (Front Right CV Axle Shaft) Conventional
Outboard Shaft Connection Style (Rear Left CV Axle Shaft) Spline
Outboard Shaft Connection Style (Rear Right CV Axle Shaft) Spline
Overall Compressed Length (in) (Front Left CV Axle Shaft) 23.25
Overall Compressed Length (in) (Front Right CV Axle Shaft) 36.16
Overall Compressed Length (in) (Rear Left CV Axle Shaft) 31.85
Overall Compressed Length (in) (Rear Right CV Axle Shaft) 30.67
Overall Compressed Length (mm) (Front Left CV Axle Shaft) 590.5
Overall Compressed Length (mm) (Front Right CV Axle Shaft) 918.5
Overall Compressed Length (mm) (Rear Left CV Axle Shaft) 809
Overall Compressed Length (mm) (Rear Right CV Axle Shaft) 779
Brand Part #
Brand Part #
OEM Part Number 31602756339
OEM Part Number 31602756340
OEM Part Number 31604853483
OEM Part Number 31604853484
OEM Part Number 31607585381
OEM Part Number 31607585382
OEM Part Number 31607596059
OEM Part Number 31607596060
OEM Part Number 31608605466
OEM Part Number 31608605467

This part also goes by the following cross reference.

Cross Reference Part Number:
