VW CV Axle Shaft Kit – Front and Rear 251501203GX – Aftermarket 3991864KIT

VW CV Axle Shaft Kit – Front and Rear 251501203GX – Aftermarket 3991864KIT

Stock: In Stock – Available to Order ℹ️ This item is available for order and will ship soon.

SKU 3991864KIT
$237.99 - $237.99
$237.99
$237.99 - $237.99
$237.99

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

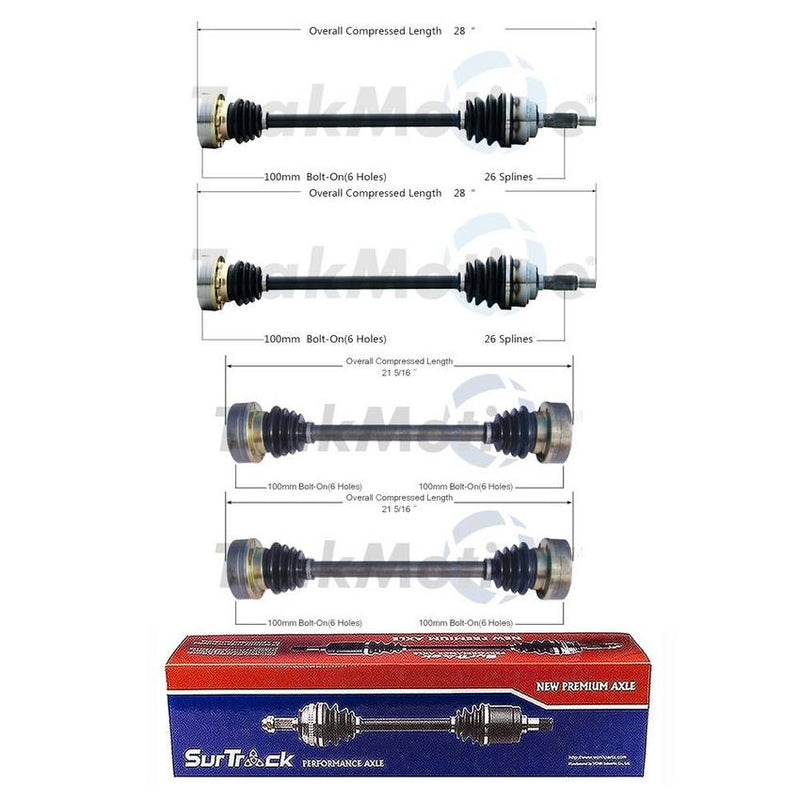

Kit Includes:

1 x Surtrack VW-8059 Front Left CV Axle Shaft

1 x Surtrack VW-8044 Rear Left CV Axle Shaft

1 x Surtrack VW-8044 Rear Right CV Axle Shaft

1 x Surtrack VW-8059 Front Right CV Axle Shaft

Abs Tone Ring Included (Front CV Axle Shaft) No
Abs Tone Ring Included (Rear CV Axle Shaft) No
Axle Nut Head Type (Front CV Axle Shaft) Hex
Axle Nut Height (in) (Front CV Axle Shaft) 5/9
Axle Nut Height (mm) (Front CV Axle Shaft) 14
Axle Nut Hex Size (in) (Front CV Axle Shaft) 1 1/6
Axle Nut Hex Size (mm) (Front CV Axle Shaft) 30
Axle Nut Included (Front CV Axle Shaft) Yes
Axle Nut Included (Rear CV Axle Shaft) No
Axle Nut Length (in) (Front CV Axle Shaft) 1 1/3
Axle Nut Length (mm) (Front CV Axle Shaft) 34.6
Axle Nut Locking Type (Front CV Axle Shaft) Self-Lock
Axle Nut Thread Size (Front CV Axle Shaft) M20*1.5
Boot Material (Front CV Axle Shaft) Neoprene
Boot Material (Rear CV Axle Shaft) Neoprene
Inboard Bolt Head Size (in) (Front CV Axle Shaft) 1/4
Inboard Bolt Head Size (in) (Rear CV Axle Shaft) 1/4
Inboard Bolt Head Size (mm) (Front CV Axle Shaft) 6
Inboard Bolt Head Size (mm) (Rear CV Axle Shaft) 6
Inboard Bolt Head Type (Front CV Axle Shaft) Allen
Inboard Bolt Head Type (Rear CV Axle Shaft) Allen
Inboard Bolt Length (in) (Front CV Axle Shaft) 2 2/9
Inboard Bolt Length (in) (Rear CV Axle Shaft) 2 2/7
Inboard Bolt Length (mm) (Front CV Axle Shaft) 56.5
Inboard Bolt Length (mm) (Rear CV Axle Shaft) 58
Inboard Bolt Thread Size (Front CV Axle Shaft) M8*1.25
Inboard Bolt Thread Size (Rear CV Axle Shaft) M8*1.25
Inboard Joint Type (Front CV Axle Shaft) Bolt-On
Inboard Joint Type (Rear CV Axle Shaft) Bolt-On
Inboard Shaft Connection Style (Front CV Axle Shaft) Bolt-On
Inboard Shaft Connection Style (Rear CV Axle Shaft) Bolt-On
New Or Remanufactured (Front CV Axle Shaft) New
New Or Remanufactured (Rear CV Axle Shaft) New
Number Of Inboard Joint Bolt Holes (Front CV Axle Shaft) 6
Number Of Inboard Joint Bolt Holes (Rear CV Axle Shaft) 6
Number Of Inboard Shaft Bolts (Front CV Axle Shaft) 6
Number Of Inboard Shaft Bolts (Rear CV Axle Shaft) 6
Number Of Outboard Joint Bolt Holes (Rear CV Axle Shaft) 6
Number Of Outboard Splines (Front CV Axle Shaft) 26
Outboard Bolt Head Size (in) (Rear CV Axle Shaft) 1/4
Outboard Bolt Head Size (mm) (Rear CV Axle Shaft) 6
Outboard Bolt Head Type (Rear CV Axle Shaft) Allen
Outboard Bolt Length (in) (Rear CV Axle Shaft) 2 2/7
Outboard Bolt Length (mm) (Rear CV Axle Shaft) 58
Outboard Joint Bolt Thread Size (Rear CV Axle Shaft) M8*1.25
Outboard Joint Type (Front CV Axle Shaft) Conventional
Outboard Joint Type (Rear CV Axle Shaft) Bolt-On
Outboard Shaft Connection Style (Front CV Axle Shaft) Conventional
Outboard Shaft Connection Style (Rear CV Axle Shaft) Bolt-On
Overall Compressed Length (in) (Front CV Axle Shaft) 27.99
Overall Compressed Length (in) (Rear CV Axle Shaft) 21.3
Overall Compressed Length (mm) (Front CV Axle Shaft) 711
Overall Compressed Length (mm) (Rear CV Axle Shaft) 541
Brand Part #
Brand Part #
OEM Part Number 251407271J
OEM Part Number 251501203G

This part also goes by the following cross reference.

Cross Reference Part Number:
