VW CV Axle Shaft Kit – Front and Rear – Aftermarket 3991867KIT

VW CV Axle Shaft Kit – Front and Rear – Aftermarket 3991867KIT

Stock: In Stock – Available to Order ℹ️ This item is available for order and will ship soon.

SKU 3991867KIT
$361.99 - $361.99
$361.99
$361.99 - $361.99
$361.99

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

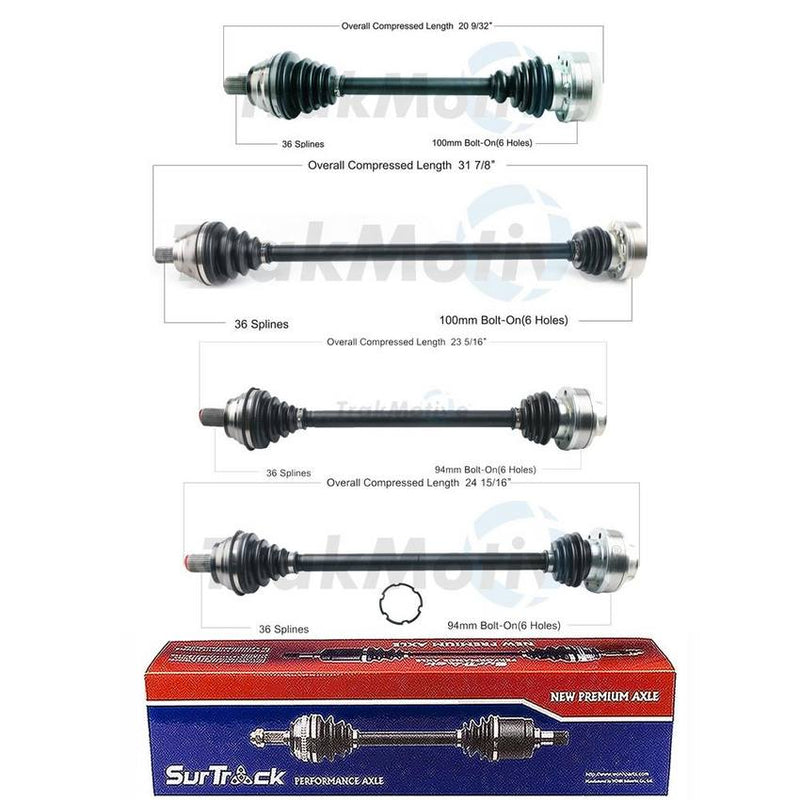

Kit Includes:

1 x Surtrack VW-8138 Front Left CV Axle Shaft

1 x Surtrack AD-8157 Rear Right CV Axle Shaft

1 x Surtrack AD-8156 Rear Left CV Axle Shaft

1 x Surtrack VW-8149 Front Right CV Axle Shaft

Abs Tone Ring Included (Front Left CV Axle Shaft) No
Abs Tone Ring Included (Front Right CV Axle Shaft) No
Abs Tone Ring Included (Rear Left CV Axle Shaft) No
Abs Tone Ring Included (Rear Right CV Axle Shaft) No
Axle Bolt Hex Size (mm) (Front Right CV Axle Shaft) 17
Axle Bolt Length (mm) (Front Right CV Axle Shaft) 90
Axle Bolt Thread Size (Front Right CV Axle Shaft) M16*1.5
Axle Nut Included (Front Left CV Axle Shaft) No
Axle Nut Included (Front Right CV Axle Shaft) No
Axle Nut Included (Rear Left CV Axle Shaft) No
Axle Nut Included (Rear Right CV Axle Shaft) No
Boot Material (Front Left CV Axle Shaft) Neoprene
Boot Material (Front Right CV Axle Shaft) Neoprene
Boot Material (Rear Left CV Axle Shaft) Neoprene
Boot Material (Rear Right CV Axle Shaft) Neoprene
Inboard Joint Type (Front Left CV Axle Shaft) Bolt-On
Inboard Joint Type (Front Right CV Axle Shaft) Bolt-On
Inboard Joint Type (Rear Left CV Axle Shaft) Bolt-On
Inboard Joint Type (Rear Right CV Axle Shaft) Bolt-on
Inboard Shaft Connection Style (Front Left CV Axle Shaft) Bolt-On
Inboard Shaft Connection Style (Front Right CV Axle Shaft) Bolt-On
Inboard Shaft Connection Style (Rear Left CV Axle Shaft) Bolt-On
Inboard Shaft Connection Style (Rear Right CV Axle Shaft) Bolt-On
New Or Remanufactured (Front Left CV Axle Shaft) New
New Or Remanufactured (Front Right CV Axle Shaft) New
New Or Remanufactured (Rear Left CV Axle Shaft) New
New Or Remanufactured (Rear Right CV Axle Shaft) New
Number Of Bolt Holes (Front Right CV Axle Shaft) 6
Number Of Inboard Splines (Front Right CV Axle Shaft) /
Number Of Outboard Shaft Bolts (Front Right CV Axle Shaft) 1
Number Of Outboard Splines (Front Left CV Axle Shaft) 36
Number Of Outboard Splines (Front Right CV Axle Shaft) 36
Number Of Outboard Splines (Rear Left CV Axle Shaft) 36
Number Of Outboard Splines (Rear Right CV Axle Shaft) 36
Outboard Joint Type (Front Left CV Axle Shaft) Audi Style Spline Bolt
Outboard Joint Type (Front Right CV Axle Shaft) Audi Style Spline Bolt
Outboard Joint Type (Rear Left CV Axle Shaft) Audi Style Spline Bolt
Outboard Joint Type (Rear Right CV Axle Shaft) Audi Style Spline Bolt
Outboard Shaft Connection Style (Front Left CV Axle Shaft) Spline
Outboard Shaft Connection Style (Front Right CV Axle Shaft) Spline
Outboard Shaft Connection Style (Rear Left CV Axle Shaft) Spline
Outboard Shaft Connection Style (Rear Right CV Axle Shaft) Spline
Overall Compressed Length (in) (Front Left CV Axle Shaft) 20.28
Overall Compressed Length (in) (Front Right CV Axle Shaft) 31.89
Overall Compressed Length (in) (Rear Left CV Axle Shaft) 23.31
Overall Compressed Length (in) (Rear Right CV Axle Shaft) 24.96
Overall Compressed Length (mm) (Front Left CV Axle Shaft) 515
Overall Compressed Length (mm) (Front Right CV Axle Shaft) 810
Overall Compressed Length (mm) (Rear Left CV Axle Shaft) 592
Overall Compressed Length (mm) (Rear Right CV Axle Shaft) 634
Brand Part #
Brand Part #
OEM Part Number 5Q6407272J

This part also goes by the following cross reference.

Cross Reference Part Number:
