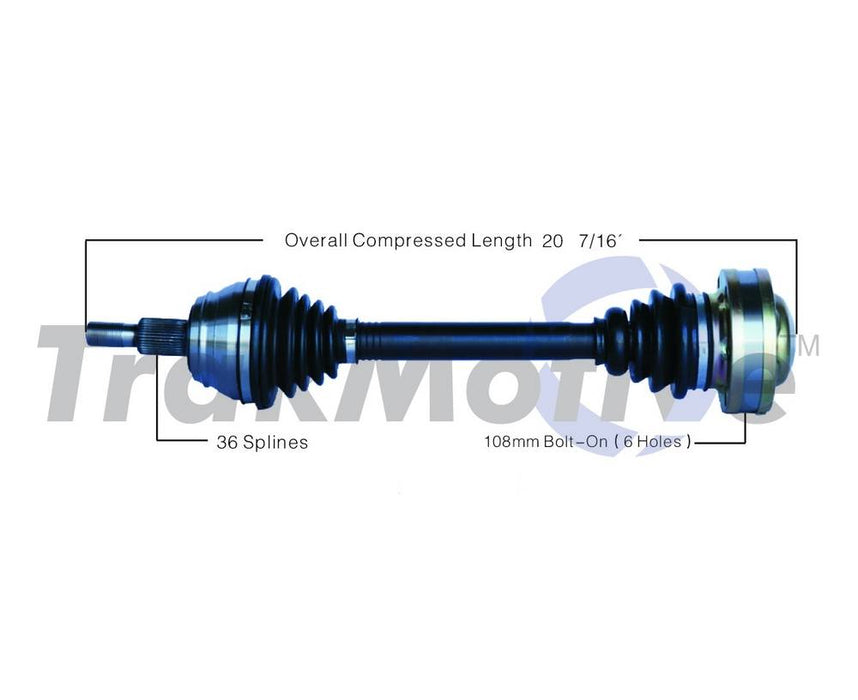

Audi VW CV Axle Shaft – Front Driver Side 8N0407451X – Aftermarket AD8089

Audi VW CV Axle Shaft – Front Driver Side 8N0407451X – Aftermarket AD8089

Stock: In Stock – Available to Order ℹ️ This item is available for order and will ship soon.

SKU AD-8089
$47.99 - $47.99
$47.99
$47.99 - $47.99
$47.99

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

The Surtrack CV Axle Shaft part number AD-8089 is a reliable replacement option for your Audi and Volkswagen. This high-quality product is compatible with other part numbers, including 1J0407271PL, 1J0407451HX, and 8N0407271E.

Crafted from durable materials, this CV Axle Shaft is built to last. It’s made to exacting standards, ensuring a perfect fit and optimal performance. With its precision engineering, the AD-8089 delivers exceptional power transfer and smooth operation.

The Surtrack CV Axle Shaft part number AD-8089 is easy to install, making it a convenient choice for those who prefer to do their own maintenance. It’s ideal for those who want to save money, without sacrificing quality.

Whether you’re driving on the highway or off-road, the AD-8089 provides superior handling and stability. It delivers excellent torque and acceleration, giving you the confidence to tackle any terrain.

Invest in the Surtrack CV Axle Shaft part number AD-8089 and enjoy the benefits of a top-quality product. It’s the perfect solution for your Audi or Volkswagen, providing reliable and long-lasting performance.

Abs Tone Ring Included (Front Left CV Axle Shaft) No
Axle Nut Head Type (Front Left CV Axle Shaft) Hex
Axle Nut Height (in) (Front Left CV Axle Shaft) 5/9
Axle Nut Height (mm) (Front Left CV Axle Shaft) 14
Axle Nut Hex Size (in) (Front Left CV Axle Shaft) 1 1/6
Axle Nut Hex Size (mm) (Front Left CV Axle Shaft) 30
Axle Nut Included (Front Left CV Axle Shaft) Yes
Axle Nut Length (in) (Front Left CV Axle Shaft) 1 1/3
Axle Nut Length (mm) (Front Left CV Axle Shaft) 34.6
Axle Nut Locking Type (Front Left CV Axle Shaft) Self-Lock
Axle Nut Thread Size (Front Left CV Axle Shaft) M20*1.5
Boot Material (Front Left CV Axle Shaft) Neoprene
Inboard Bolt Head Size (in) (Front Left CV Axle Shaft) 1/3
Inboard Bolt Head Size (mm) (Front Left CV Axle Shaft) 8
Inboard Bolt Head Type (Front Left CV Axle Shaft) Allen
Inboard Bolt Length (in) (Front Left CV Axle Shaft) 2 1/6
Inboard Bolt Length (mm) (Front Left CV Axle Shaft) 55
Inboard Bolt Thread Size (Front Left CV Axle Shaft) M10*1.5
Inboard Joint Type (Front Left CV Axle Shaft) Bolt-On
Inboard Shaft Connection Style (Front Left CV Axle Shaft) Bolt-On
New Or Remanufactured (Front Left CV Axle Shaft) New
Number Of Inboard Joint Bolt Holes (Front Left CV Axle Shaft) 6
Number Of Inboard Shaft Bolts (Front Left CV Axle Shaft) 6
Number Of Outboard Splines (Front Left CV Axle Shaft) 36
Outboard Joint Type (Front Left CV Axle Shaft) Conventional
Outboard Shaft Connection Style (Front Left CV Axle Shaft) Conventional
Overall Compressed Length (in) (Front Left CV Axle Shaft) 20.43
Overall Compressed Length (mm) (Front Left CV Axle Shaft) 519
Brand Part #
Brand Part #
OEM Part Number 1J0407271PL
OEM Part Number 1J0407451HX
OEM Part Number 8N0407271E
Brand Part #
Altrom 652761
Auto Plus 109089
AutoZone B10404N
Carquest Remanufactured 411797
Diversified Shafts Solutions 2403N
Drive Tech America VW-2515 / VW2515
Drive Tech America VW-8881 / VW8881
EMPI 80-9055 / 809055
GSP NCV23614
Heri Automotive 77973
IMC 40704069
Mega Axles MX-18815 / MX18815
ODM VW-8-8520 / VW88520
OEM Part Number 1J0407271PL
OEM Part Number 1J0407451HX
OEM Part Number 8N0407271E
ProTech AD10536
ToughOne NCV23614
USA Industries 709170
USA Industries AX-9170 / AX9170
Worldparts 109089

This part also goes by the following cross reference.

Cross Reference Part Number:
