Audi CV Axle Shaft – Front Passenger Side (Manul) – Aftermarket AD8114

Audi CV Axle Shaft – Front Passenger Side (Manul) – Aftermarket AD8114

Stock: In Stock – Available to Order ℹ️ This item is available for order and will ship soon.

SKU AD-8114
$78.99 - $78.99
$78.99
$78.99 - $78.99
$78.99

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

Only For Cars with Manual Transmission

Abs Ring Tooth Count (Front Right CV Axle Shaft) 45
Abs Ring Type (Front Right CV Axle Shaft) Window
Abs Tone Ring Included (Front Right CV Axle Shaft) Yes
Axle Bolt Hex Size (mm) (Front Right CV Axle Shaft) 27
Axle Bolt Length (mm) (Front Right CV Axle Shaft) 97
Axle Bolt Thread Size (Front Right CV Axle Shaft) M16*1.5
Axle Nut Included (Front Right CV Axle Shaft) No
Boot Material (Front Right CV Axle Shaft) Neoprene
Inboard Bolt Head Size (in) (Front Right CV Axle Shaft) 1/3
Inboard Bolt Head Size (mm) (Front Right CV Axle Shaft) 8
Inboard Bolt Head Type (Front Right CV Axle Shaft) Allen
Inboard Bolt Length (in) (Front Right CV Axle Shaft) 2 1/6
Inboard Bolt Length (mm) (Front Right CV Axle Shaft) 55
Inboard Bolt Thread Size (Front Right CV Axle Shaft) M10*1.5
Inboard Joint Type (Front Right CV Axle Shaft) Bolt-On
Inboard Shaft Connection Style (Front Right CV Axle Shaft) Bolt-On
New Or Remanufactured (Front Right CV Axle Shaft) New
Number Of Bolt Holes (Front Right CV Axle Shaft) 1
Number Of Inboard Joint Bolt Holes (Front Right CV Axle Shaft) 6
Number Of Inboard Shaft Bolts (Front Right CV Axle Shaft) 6
Number Of Outboard Shaft Bolts (Front Right CV Axle Shaft) 1
Number Of Outboard Splines (Front Right CV Axle Shaft) 38
Outboard Joint Type (Front Right CV Axle Shaft) Audi Style Spline Bolt
Outboard Shaft Connection Style (Front Right CV Axle Shaft) Audi Style Spline Bolt

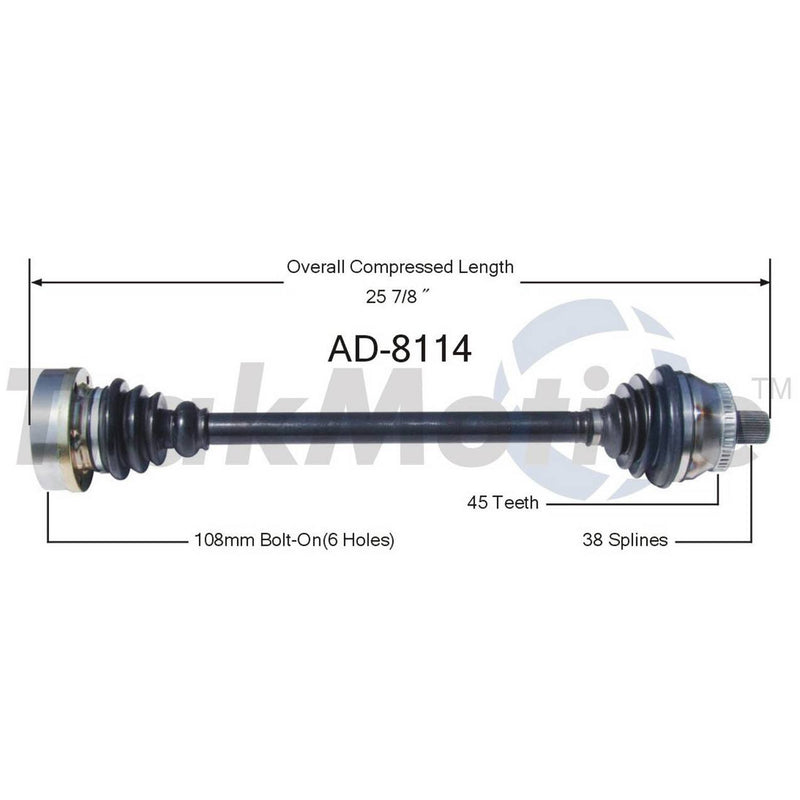

Overall Compressed Length (in) (Front Right CV Axle Shaft) 25.87
Overall Compressed Length (mm) (Front Right CV Axle Shaft) 657
Brand Part #
Brand Part #
OEM Part Number 4B0407272J
Brand Part #
ARC 80-5065 / 805065
Auto Plus 109114
AutoZone B10695N
Diversified Shafts Solutions 2334N
EMPI 80-9088 / 809088
GSP NCV23631
Mega Axles MX-17244S / MX17244S
OEM Part Number 4B0407272J
ProTech AD10515T
USA Industries AX-91429 / AX91429
Worldparts 109114

This part also goes by the following cross reference.

Cross Reference Part Number:
