Audi CV Axle Shaft – Rear Passenger Side – Aftermarket AD8118

Audi CV Axle Shaft – Rear Passenger Side – Aftermarket AD8118

Stock: In Stock – Available to Order ℹ️ This item is available for order and will ship soon.

SKU AD-8118
$40.99 - $40.99
$40.99
$40.99 - $40.99
$40.99

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

This Surtrack CV Axle Shaft part number AD-8118 is the perfect fit for Audi vehicles, along with a variety of other part numbers like 8A0501203E, 8A0501203J, and 8A0501203JX.

Crafted from high-quality materials, this CV axle shaft ensures optimal performance and durability. It is designed to withstand even the harshest of road conditions, ensuring that your vehicle runs smoothly and efficiently.

The Surtrack CV Axle Shaft part number AD-8118 offers a variety of features that make it a reliable choice for Audi drivers. It is easy to install, promoting a hassle-free installation process without the need for any additional components. This CV axle shaft also comes with a precise fit, making it easy to install without any modifications to existing parts.

With the Surtrack CV Axle Shaft part number AD-8118, you can be sure of a smooth ride and exceptional driving experience. It is specifically designed to deliver maximum torque without any vibrations, ensuring a smooth ride even at high speeds.

In summary, the Surtrack CV Axle Shaft part number AD-8118 is a reliable and durable option for Audi drivers. It offers easy installation, precise fit, and maximum torque without any vibration, providing an exceptional driving experience.

Abs Ring Tooth Count (Rear CV Axle Shaft) 45
Abs Ring Type (Rear CV Axle Shaft) Toothed
Abs Tone Ring Included (Rear CV Axle Shaft) Yes
Axle Bolt Hex Size (mm) (Rear CV Axle Shaft) 23.8
Axle Bolt Length (mm) (Rear CV Axle Shaft) 93
Axle Bolt Thread Size (Rear CV Axle Shaft) M14*1.5
Axle Nut Included (Rear CV Axle Shaft) No
Boot Material (Rear CV Axle Shaft) Neoprene
Inboard Bolt Head Size (in) (Rear CV Axle Shaft) 1/4
Inboard Bolt Head Size (mm) (Rear CV Axle Shaft) 6
Inboard Bolt Head Type (Rear CV Axle Shaft) Allen
Inboard Bolt Length (in) (Rear CV Axle Shaft) 2 2/9
Inboard Bolt Length (mm) (Rear CV Axle Shaft) 56.5
Inboard Bolt Thread Size (Rear CV Axle Shaft) M8*1.25
Inboard Joint Type (Rear CV Axle Shaft) Bolt-On
Inboard Shaft Connection Style (Rear CV Axle Shaft) Bolt-On
New Or Remanufactured (Rear CV Axle Shaft) New
Number Of Bolt Holes (Rear CV Axle Shaft) 1
Number Of Inboard Joint Bolt Holes (Rear CV Axle Shaft) 6
Number Of Inboard Shaft Bolts (Rear CV Axle Shaft) 6
Number Of Outboard Shaft Bolts (Rear CV Axle Shaft) 1
Number Of Outboard Splines (Rear CV Axle Shaft) 33
Outboard Joint Type (Rear CV Axle Shaft) Audi Style Spline Bolt
Outboard Shaft Connection Style (Rear CV Axle Shaft) Audi Style Spline Bolt

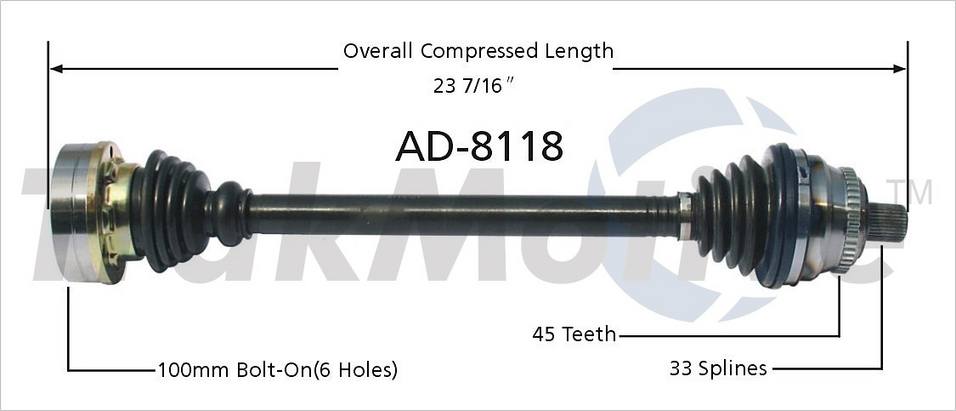

Overall Compressed Length (in) (Rear CV Axle Shaft) 23.43
Overall Compressed Length (mm) (Rear CV Axle Shaft) 595
Brand Part #
Brand Part #
OEM Part Number 8A0501203E
OEM Part Number 8A0501203J
OEM Part Number 8A0501203JX
Brand Part #
Altrom 652725
Auto Plus 109118
AutoZone 7126N
Cardone Reman 60-7070 / 607070
Cardone Reman 66-7070 / 667070
Diversified Shafts Solutions 350R
GSP NCV23900
Heri Automotive 77805
Mevotech CV1222
MPV MP-7070 / MP7070
ODM AD-8-8622A / AD88622A
OEM Part Number 8A0501203E
OEM Part Number 8A0501203J
OEM Part Number 8A0501203JX
ProTech AD10552
ToughOne NCV23900
USA Industries AX-99179 / AX99179
Worldparts 109118

This part also goes by the following cross reference.

Cross Reference Part Number:
