Audi CV Axle Shaft – Front Passenger Side – Aftermarket AD8143

Audi CV Axle Shaft – Front Passenger Side – Aftermarket AD8143

Stock: In Stock – Available to Order ℹ️ This item is available for order and will ship soon.

SKU AD-8143
$73.99 - $73.99
$73.99
$73.99 - $73.99
$73.99

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

The Surtrack CV Axle Shaft part number AD-8143 is a high-quality replacement part designed specifically for Audi vehicles. It is compatible with part number 8N0407452X, making it a perfect fit for a range of Audi models.

One of the main benefits of this CV Axle Shaft is its durability. Made from high-quality materials, it is built to withstand wear and tear over time, ensuring long-lasting performance. It is also designed to meet or exceed OEM standards, ensuring that it provides the same level of performance as the original part.

Another key feature of this CV Axle Shaft is its ease of installation. With a simple and straightforward installation process, it can be installed quickly and easily, saving you time and hassle. The precision machining and construction of the part also ensure a perfect fit, reducing the chance of any installation errors or issues.

This CV Axle Shaft is also designed to provide smooth and reliable performance. With a precision-balanced design, it reduces vibration and noise, providing a comfortable and quiet ride. It also features high-quality seals and bearings that help to prevent contamination and ensure smooth operation.

In summary, the Surtrack CV Axle Shaft part number AD-8143 is an excellent choice for Audi owners in need of a replacement part. With its high-quality construction, precise fit, and smooth performance, it offers a reliable and long-lasting solution for your vehicle.

Abs Tone Ring Included (Front Right CV Axle Shaft) No
Axle Bolt Hex Size (mm) (Front Right CV Axle Shaft) 27
Axle Bolt Length (mm) (Front Right CV Axle Shaft) 97
Axle Bolt Thread Size (Front Right CV Axle Shaft) M16*1.5
Axle Nut Included (Front Right CV Axle Shaft) No
Boot Material (Front Right CV Axle Shaft) Neoprene
Inboard Bolt Head Size (in) (Front Right CV Axle Shaft) 1/3
Inboard Bolt Head Size (mm) (Front Right CV Axle Shaft) 8
Inboard Bolt Head Type (Front Right CV Axle Shaft) Allen
Inboard Bolt Length (in) (Front Right CV Axle Shaft) 2 1/6
Inboard Bolt Length (mm) (Front Right CV Axle Shaft) 55
Inboard Bolt Thread Size (Front Right CV Axle Shaft) M10*1.5
Inboard Joint Type (Front Right CV Axle Shaft) Bolt-On
Inboard Shaft Connection Style (Front Right CV Axle Shaft) Bolt-On
New Or Remanufactured (Front Right CV Axle Shaft) New
Number Of Bolt Holes (Front Right CV Axle Shaft) 1
Number Of Inboard Joint Bolt Holes (Front Right CV Axle Shaft) 6
Number Of Inboard Shaft Bolts (Front Right CV Axle Shaft) 6
Number Of Outboard Shaft Bolts (Front Right CV Axle Shaft) 1
Number Of Outboard Splines (Front Right CV Axle Shaft) 36
Outboard Joint Type (Front Right CV Axle Shaft) Audi Style Spline Bolt
Outboard Shaft Connection Style (Front Right CV Axle Shaft) Spline

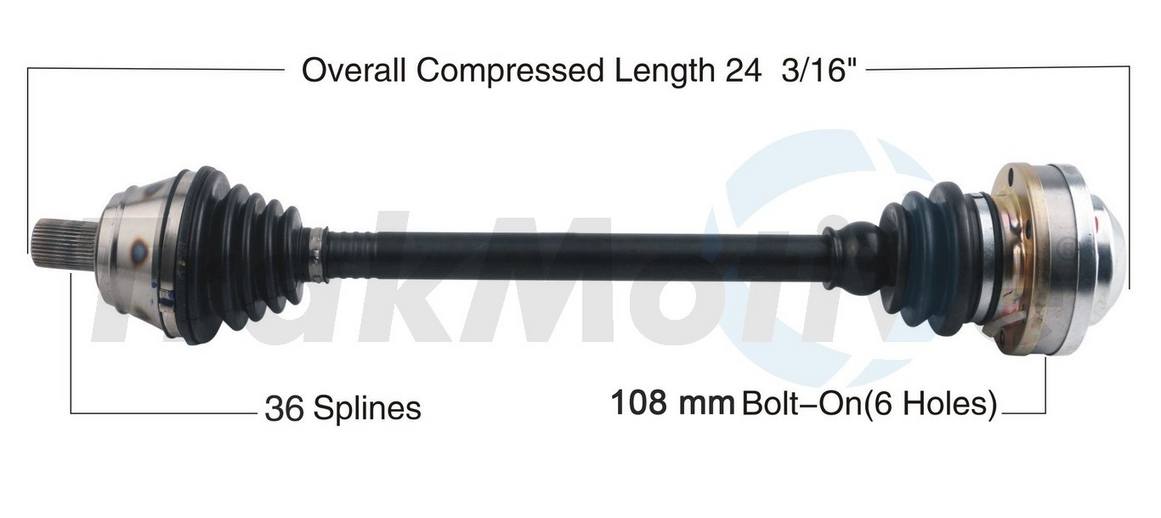

Overall Compressed Length (in) (Front Right CV Axle Shaft) 24.17
Overall Compressed Length (mm) (Front Right CV Axle Shaft) 614
Brand Part #
Brand Part #
OEM Part Number 8N0407452X
Brand Part #
Auto Plus 109143
AutoZone B14155N
Diversified Shafts Solutions 2434N
EMPI 80-9092 / 809092
GSP NCV23619
Heri Automotive 77114
OEM Part Number 8N0407452X
ProTech AD10535
USA Industries AX-9529 / AX9529
Worldparts 109143

This part also goes by the following cross reference.

Cross Reference Part Number:
