Mini CV Axle Shaft – Front Driver Side – Aftermarket BM8059

Stock: In Stock – Available to Order ℹ️ This item is available for order and will ship soon.

SKU BM-8059
Original price $60.99 - Original price $60.99
Original price
$60.99
$60.99 - $60.99
Current price $60.99

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

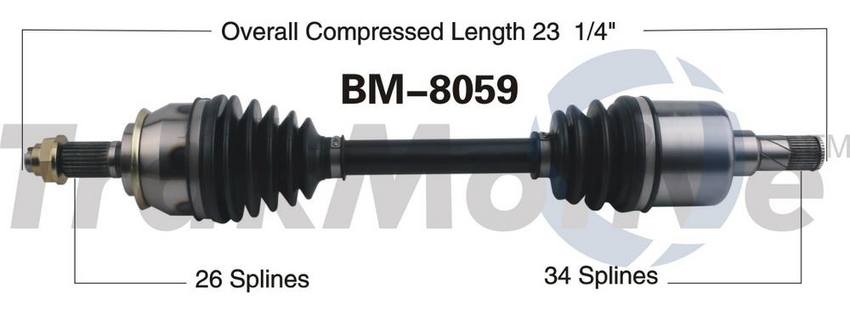

The Surtrack CV Axle Shaft part number BM-8059 is designed for Mini models and is compatible with other part numbers 31602756339, 31604853483, 31607585381, and 31607596059.

One of the key benefits of this part is its durability. Made from high-quality materials, this CV Axle Shaft is built to last, ensuring that your vehicle performs at its optimal level for longer periods of time. Additionally, it is designed to withstand harsh weather conditions and tough road environments.

The Surtrack CV Axle Shaft part features a precision CNC-machined cage and raceway, providing a smooth and efficient operation. The splines, threads, and threads are all thoroughly inspected and checked to ensure that they meet or exceed OEM specifications.

One of the most important aspects of the CV Axle Shaft is its ability to transfer torque from the transmission to the wheels. This part is responsible for delivering power to the wheels, and its failure can result in a loss of power and reduced vehicle performance. The Surtrack CV Axle Shaft is designed to provide consistent and reliable torque transfer, ensuring that your vehicle performs at its best.

Overall, the Surtrack CV Axle Shaft part number BM-8059 is an excellent choice for Mini owners who want to ensure that their vehicle runs smoothly and efficiently. Built to last, this part is designed to provide consistent and reliable performance, making it an ideal choice for those who demand the best from their vehicle.

Abs Tone Ring Included (Front Left CV Axle Shaft) No
Axle Nut Head Type (Front Left CV Axle Shaft) Hex
Axle Nut Height (in) (Front Left CV Axle Shaft) 4/5
Axle Nut Height (mm) (Front Left CV Axle Shaft) 20
Axle Nut Hex Size (in) (Front Left CV Axle Shaft) 1 1/4
Axle Nut Hex Size (mm) (Front Left CV Axle Shaft) 31.8
Axle Nut Included (Front Left CV Axle Shaft) Yes
Axle Nut Length (in) (Front Left CV Axle Shaft) 1 1/3
Axle Nut Length (mm) (Front Left CV Axle Shaft) 34.4
Axle Nut Locking Type (Front Left CV Axle Shaft) Stake
Axle Nut Thread Size (Front Left CV Axle Shaft) M22*1.5
Boot Material (Front Left CV Axle Shaft) Neoprene
Inboard Joint Type (Front Left CV Axle Shaft) Male
Inboard Shaft Connection Style (Front Left CV Axle Shaft) Male
New Or Remanufactured (Front Left CV Axle Shaft) New
Number Of Inboard Splines (Front Left CV Axle Shaft) 34
Number Of Outboard Splines (Front Left CV Axle Shaft) 26
Outboard Joint Type (Front Left CV Axle Shaft) Conventional
Outboard Shaft Connection Style (Front Left CV Axle Shaft) Conventional
Overall Compressed Length (in) (Front Left CV Axle Shaft) 23.25
Overall Compressed Length (mm) (Front Left CV Axle Shaft) 590.5
Brand Part #
Brand Part #
OEM Part Number 31602756339
OEM Part Number 31604853483
OEM Part Number 31607585381
OEM Part Number 31607596059
OEM Part Number 31608605467
Brand Part #
Auto Plus 129059
AutoZone 14157N
Cardone Reman 66-9326 / 669326
Diversified Shafts Solutions 3347N
GSP NCV49502
GSP NCV49508
Heri Automotive 78330
ODM BM-8-8551 / BM88551
ODM BM-8-8552 / BM88552
OEM Part Number 31602756339
OEM Part Number 31604853483
OEM Part Number 31607585381
OEM Part Number 31607596059
OEM Part Number 31608605467
ProTech BM10533
ProTech BM10537
Worldparts 129059

This part also goes by the following cross reference.

Cross Reference Part Number:
