Volkswagen CV Axle Shaft (Front Passenger Side) SurTrack VW-8004

Volkswagen CV Axle Shaft (Front Passenger Side) SurTrack VW-8004

Stock: In Stock – Available to Order ℹ️ This item is available for order and will ship soon.

SKU VW-8004
$50.99 - $50.99
$50.99
$50.99 - $50.99
$50.99

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

Abs Ring Tooth Count N/A
Abs Ring Type N/A
Abs Tone Ring Included No
Axle Bolt Hex Size (mm) N/A
Axle Bolt Length (mm) N/A
Axle Bolt Thread Size N/A
Axle Nut Head Type Hex
Axle Nut Height (in) 5/9
Axle Nut Height (mm) 14
Axle Nut Hex Size (in) 1 1/6
Axle Nut Hex Size (mm) 30
Axle Nut Included Yes
Axle Nut Length (in) 1 1/3
Axle Nut Length (mm) 34.6
Axle Nut Locking Type Self-Lock
Axle Nut Thread Size M20*1.5
Boot Material Neoprene
Inboard Bolt Head Size (in) 1/4
Inboard Bolt Head Size (mm) 6
Inboard Bolt Length (in) 2 2/7
Inboard Bolt Length (mm) 58
Inboard Bolt Thread Size M8*1.25
Inboard Joint Type Bolt-On
Inboard Shaft Connection Style Bolt-On
New Or Remanufactured New
Number Of Bolt Holes N/A
Number Of Inboard Joint Bolt Holes 6
Number Of Inboard Shaft Bolts 6
Number Of Inboard Splines N/A
Number Of Outboard Joint Bolt Holes N/A
Number Of Outboard Shaft Bolts N/A
Number Of Outboard Splines 36
Outboard Bolt Head Size (in) N/A
Outboard Bolt Head Size (mm) N/A
Outboard Bolt Head Type N/A
Outboard Bolt Length (in) N/A
Outboard Bolt Length (mm) N/A
Outboard Joint Bolt Thread Size N/A
Outboard Joint Type Conventional
Outboard Shaft Connection Style Conventional

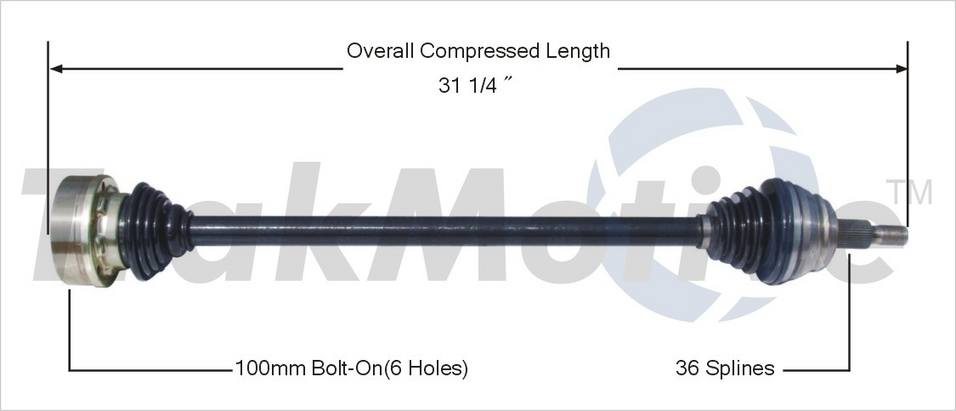

Overall Compressed Length (in) 31.26
Overall Compressed Length (mm) 794
Brand Part #
Brand Part #
OEM Part Number 1H0407272C
OEM Part Number 1HM407274B
OEM Part Number 1HM407274A
OEM Part Number 1HM407274
OEM Part Number 1HM407272A
Brand Part #
American Remanufactured 40-18862 / 4018862
OEM Part Number 1H0407272C
CARQUEST 800443
ToughOne NCV72010
ProTech VW10515T
Worldparts 349004
OEM Part Number 1HM407274B
Drive Tech America VW-8862 / VW8862
OEM Part Number 1HM407272A
OEM Part Number 1HM407274
Heri Automotive 75980
AutoZone 7524N
CarQuest NEW 800443
Cardone Reman 60-7093 / 607093
EMPI 80-6819 / 806819
Fenwick CV3030
Car Components Technologies (CCT) 7524
GSP NCV72010
Mega Axles MX-18862 / MX18862
MPV MP-7093 / MP7093
ARC 80-3169 / 803169
USA Industries AX-3225 / AX3225
OEM Part Number 1HM407274A
Altrom 652726
Mevotech CV7056
Carquest Remanufactured 410443
NAPA 942010
Diversified Shafts Solutions 2245N
Cardone Reman 66-7093 / 667093
USA Industries 703225
Auto Plus 349004
ODM VW-8-8547 / VW88547

This part also goes by the following cross reference.

Cross Reference Part Number:
