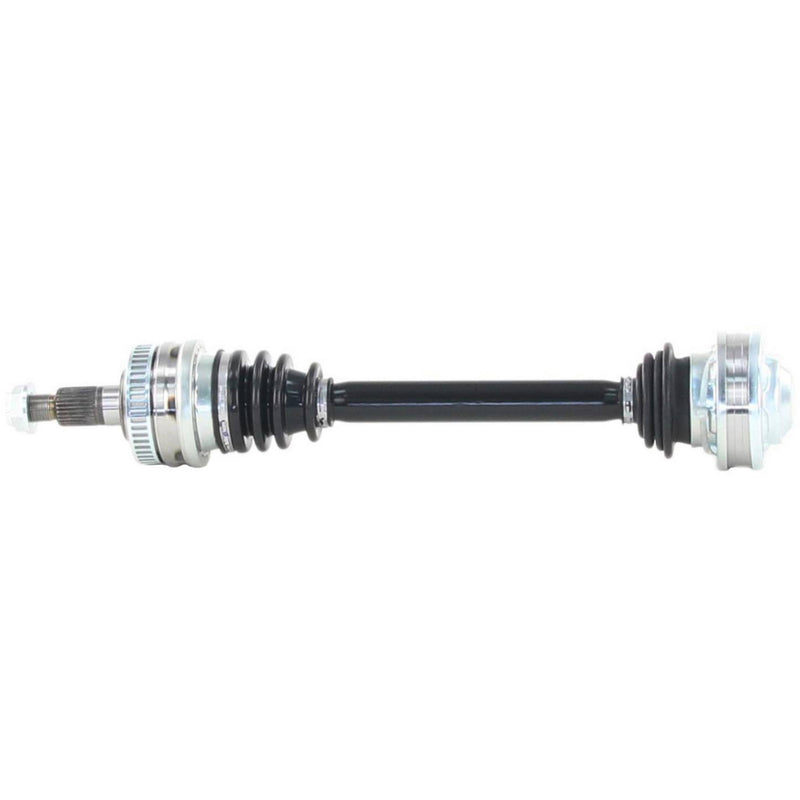

Porsche CV Axle Shaft SurTrack VW-8166

Porsche CV Axle Shaft SurTrack VW-8166

Stock: In Stock – Available to Order ℹ️ This item is available for order and will ship soon.

SKU VW-8166
$188.99 - $188.99
$188.99
$188.99 - $188.99
$188.99

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

Abs Ring Tooth Count 48
Abs Ring Type Window
Abs Tone Ring Included Yes
Axle Bolt Hex Size (mm) N/A
Axle Bolt Length (mm) N/A
Axle Bolt Thread Size N/A
Axle Nut Head Type Hex
Axle Nut Height (in) N/A
Axle Nut Height (mm) 18.9
Axle Nut Hex Size (in) 1.25
Axle Nut Hex Size (mm) 31.8
Axle Nut Included Yes
Axle Nut Length (in) N/A
Axle Nut Length (mm) 36.72
Axle Nut Locking Type Self-Lock
Axle Nut Thread Size M22*1.5
Boot Material Neoprene
Inboard Bolt Head Size (in) N/A
Inboard Bolt Head Size (mm) N/A
Inboard Bolt Length (in) N/A
Inboard Bolt Length (mm) N/A
Inboard Bolt Thread Size N/A
Inboard Joint Type Bolt-On
Inboard Shaft Connection Style Bolt-On
New Or Remanufactured New
Number Of Bolt Holes N/A
Number Of Inboard Joint Bolt Holes 6
Number Of Inboard Shaft Bolts N/A
Number Of Inboard Splines N/A
Number Of Outboard Joint Bolt Holes N/A
Number Of Outboard Shaft Bolts N/A
Number Of Outboard Splines 28
Outboard Bolt Head Size (in) N/A
Outboard Bolt Head Size (mm) N/A
Outboard Bolt Head Type N/A
Outboard Bolt Length (in) N/A
Outboard Bolt Length (mm) N/A
Outboard Joint Bolt Thread Size N/A
Outboard Joint Type Conventional
Outboard Shaft Connection Style Spline
Overall Compressed Length (in) 22.17
Overall Compressed Length (mm) 563
Overall Extended Length (in) 25
Overall Extended Length (mm) 635

This part also goes by the following cross reference.

Cross Reference Part Number:
