VW Brakes Kit – Pads & Rotors Front and Rear (312mm/272mm) (Ceramic) 5Q0615301F – Brembo 1589800KIT

VW Brakes Kit – Pads & Rotors Front and Rear (312mm/272mm) (Ceramic) 5Q0615301F – Brembo 1589800KIT

BREMBO

Stock: Out of Stock ℹ️ This item is currently unavailable. Check back later.

SKU 1589800KIT
Sold out
$326.99 - $326.99
$326.99
$326.99 - $326.99
$326.99

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

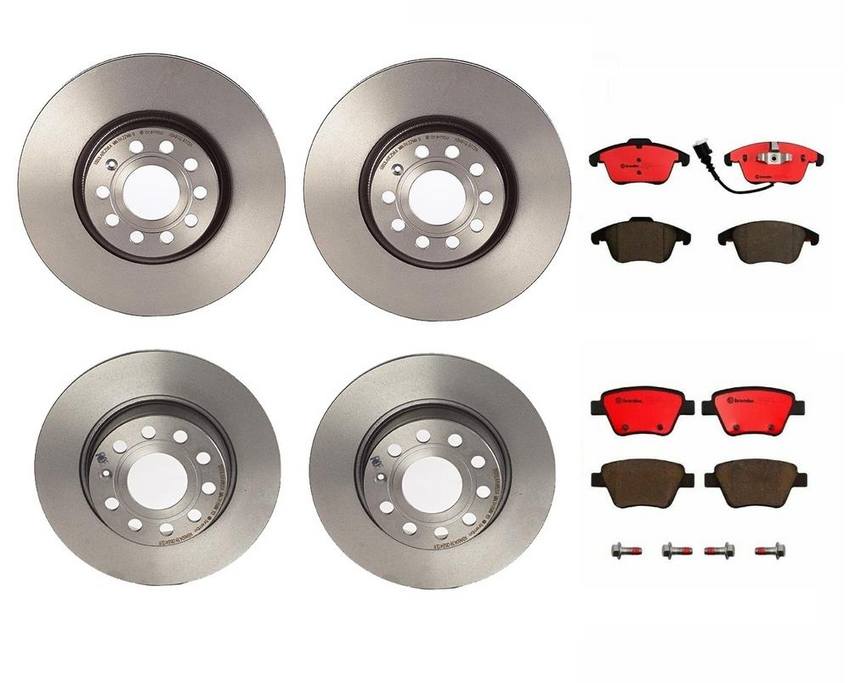

Kit Includes:

2 x Brembo 09.9772.11 Front Disc Brake Rotors

2 x Brembo 08.B413.11 Rear Disc Brake Rotors

1 x Brembo P85114N Rear Disc Brake Pad Set

1 x Brembo P85130N Front Disc Brake Pad Set

Brake System (Front Pads) Teves
Brake System (Rear pads) Bosch
Coated ( Front Rotors ) Yes
Coated ( Rear Rotors ) Yes
Features (Rear pads) with hardware
Fixing Screws ( Front Rotors ) Yes
Fixing Screws ( Rear Rotors ) Yes
Friction Material Composition Ceramic
Height (mm) (Front Pads) 72 / 66.7
Height (mm) (Rear pads) 53.5
High Carbon ( Front Rotors ) Yes
Min TH (Discs)/Max Diameter (Drums) (mm) ( Front Rotors ) 22
Min TH (Discs)/Max Diameter (Drums) (mm) ( Rear Rotors ) 8
Nominal Thickness (mm) ( Front Rotors ) 25
Nominal Thickness (mm) ( Rear Rotors ) 10
Nominal Thickness (mm) (Front Pads) 20
Nominal Thickness (mm) (Rear pads) 16.5
Outside Diameter (mm) ( Front Rotors ) 312
Outside Diameter (mm) ( Rear Rotors ) 272
Surface Finishing (Front Pads) chamfered
Surface Finishing (Rear pads) chamfered
Wear Indicator (Front Pads) with electric wear indicator
Width (mm) (Front Pads) 155.2
Width (mm) (Rear pads) 109.3
WVA (Front Pads) 24334 / 24333 / 24557
WVA (Rear pads) 24563
Brand Part #
Brand Part #
Audi 1K0 615 301A AA / 1K0615301AAA
Audi 1K0615301AA
Audi 5C0 615 301B / 5C0615301B
Audi 5C0615301B
Audi 5N0 698 151 / 5N0698151
Audi 5N0 698 151A / 5N0698151A
Audi 5N0 698 151B / 5N0698151B
Audi 5N0698151
Audi 5N0698151A
Audi 5N0698151B
Audi 5Q0 615 301F / 5Q0615301F
Audi 5Q0615301F
Seat 1K0615301AA
Skoda 1K0615301AA
Volkswagen 1K0 615 301 AA / 1K0615301AA
Volkswagen 1K0615301AA
Volkswagen 561 615 301A / 561615301A
Volkswagen 561615301A
Volkswagen 5C0 615 301B / 5C0615301B
Volkswagen 5C0615301B
Volkswagen 5K0 698 451 / 5K0698451
Volkswagen 5K0 698 451A / 5K0698451A
Volkswagen 5K0698451
Volkswagen 5K0698451A
Volkswagen 5Q0 615 301F / 5Q0615301F
Volkswagen 5Q0615301F

This part also goes by the following cross reference.

Cross Reference Part Number:
