VW Brakes Kit – Pads & Rotors Front and Rear (312mm/272mm) (Low-Met) 5Q0615301F – Brembo 1589852KIT

VW Brakes Kit – Pads & Rotors Front and Rear (312mm/272mm) (Low-Met) 5Q0615301F – Brembo 1589852KIT

BREMBO

Stock: Out of Stock ℹ️ This item is currently unavailable. Check back later.

SKU 1589852KIT
Sold out
$399.99 - $399.99
$399.99
$399.99 - $399.99
$399.99

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

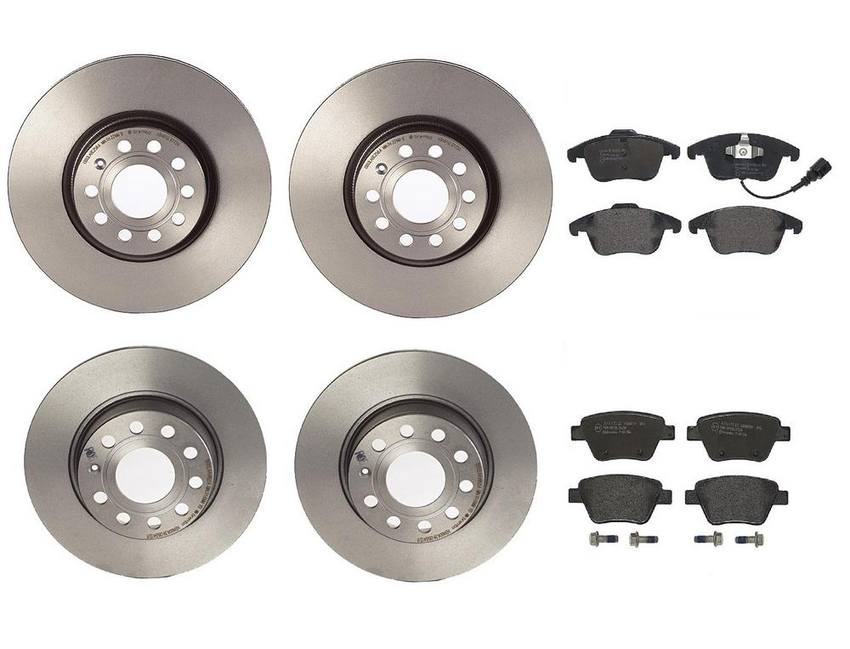

Kit Includes:

2 x Brembo 09.9772.11 Front Disc Brake Rotors

2 x Brembo 08.B413.11 Rear Disc Brake Rotors

1 x Brembo P85114 Rear Disc Brake Pad Set

1 x Brembo P85130 Front Disc Brake Pad Set

Brake System (Front pads) Teves
Brake System (Rear Pads) Bosch
Coated ( Front Rotors ) Yes
Coated ( Rear Rotors ) Yes
Features (Rear Pads) with hardware
Fixing Screws ( Front Rotors ) Yes
Fixing Screws ( Rear Rotors ) Yes
Friction Material Composition Low-Met
Height (mm) (Front pads) 66.4 / 71.9
Height (mm) (Rear Pads) 53.3
High Carbon ( Front Rotors ) Yes
Min TH (Discs)/Max Diameter (Drums) (mm) ( Front Rotors ) 22
Min TH (Discs)/Max Diameter (Drums) (mm) ( Rear Rotors ) 8
Nominal Thickness (mm) ( Front Rotors ) 25
Nominal Thickness (mm) ( Rear Rotors ) 10
Outside Diameter (mm) ( Front Rotors ) 312
Outside Diameter (mm) ( Rear Rotors ) 272
Wear Indicator (Front pads) with electric wear indicator
Width (mm) (Front pads) 155.2
Width (mm) (Rear Pads) 109.2
WVA (Front pads) 24334 / 24333 / 24557
WVA (Rear Pads) 24563
Brand Part #
Brand Part #
Audi 1K0 615 301A AA / 1K0615301AAA
Audi 1K0615301AA
Audi 5C0 615 301B / 5C0615301B
Audi 5C0615301B
Audi 5N0 698 151 / 5N0698151
Audi 5N0 698 151A / 5N0698151A
Audi 5N0 698 151B / 5N0698151B
Audi 5N0698151
Audi 5N0698151A
Audi 5N0698151B
Audi 5Q0 615 301F / 5Q0615301F
Audi 5Q0615301F
Seat 1K0615301AA
Skoda 1K0615301AA
Volkswagen 1K0 615 301 AA / 1K0615301AA
Volkswagen 1K0615301AA
Volkswagen 561 615 301A / 561615301A
Volkswagen 561615301A
Volkswagen 5C0 615 301B / 5C0615301B
Volkswagen 5C0615301B
Volkswagen 5K0 698 451 / 5K0698451
Volkswagen 5K0 698 451A / 5K0698451A
Volkswagen 5K0698451
Volkswagen 5K0698451A
Volkswagen 5Q0 615 301F / 5Q0615301F
Volkswagen 5Q0615301F

This part also goes by the following cross reference.

Cross Reference Part Number:
