Audi Brake Kit – Pads and Rotors Front and Rear (347mm/302mm) (Ceramic) 8E0698451J – Brembo 1631868KIT

Audi Brake Kit – Pads and Rotors Front and Rear (347mm/302mm) (Ceramic) 8E0698451J – Brembo 1631868KIT

BREMBO

Stock: Out of Stock ℹ️ This item is currently unavailable. Check back later.

SKU 1631868KIT
Sold out
$371.99 - $371.99
$371.99
$371.99 - $371.99
$371.99

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

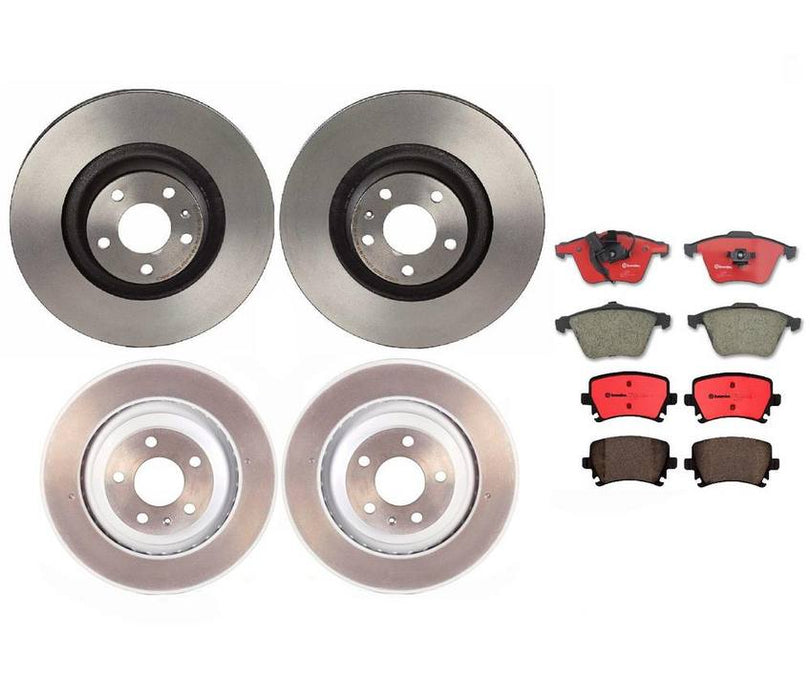

Kit Includes:

2 x Brembo 09.8841.31 Front Disc Brake Rotors

2 x Brembo 08.8843.21 Rear Disc Brake Rotors

1 x Brembo P85084N Front Disc Brake Pad Set

1 x Brembo P85073N Rear Disc Brake Pad Set

Brake System (Front Pads) Teves
Brake System (Rear Pads) Lucas
Centring Diameter (Front Rotors) 68
Centring Diameter (Rear Rotors) 68
Coated (Front Rotors) UV Coated
Coated (Rear Rotors) UV Coated
Diameter (mm) (Front Rotors) 347
Diameter (mm) (Rear Rotors) 302
Features (Rear Pads) with hardware
Fixing Screws (Front Rotors) Included
Fixing Screws (Rear Rotors) Included
Friction Material Composition Ceramic
Height (mm) (Front Pads) 72.8
Height (mm) (Front Rotors) 59.4
Height (mm) (Rear Pads) 56
Height (mm) (Rear Rotors) 49.2
Material (Front Rotors) High Carbon
Material (Rear Rotors) Grey Cast Iron
Minimum Thickness (mm) (Front Rotors) 28
Minimum Thickness (mm) (Rear Rotors) 10
Nominal Thickness (mm) (Front Pads) 20.3
Nominal Thickness (mm) (Front Rotors) 30
Nominal Thickness (mm) (Rear Pads) 17.2
Nominal Thickness (mm) (Rear Rotors) 12
Number of Holes (Front Rotors) 5
Number of Holes (Rear Rotors) 5
Surface Finishing (Front Pads) chamfered
Surface Finishing (Rear Pads) chamfered
Torque Spec (Nm) (Front Rotors) 120
Torque Spec (Nm) (Rear Rotors) 120
Ventilation Type (Front Rotors) PVT
Ventilation Type (Rear Rotors) solid
Wear Indicator (Front Pads) with electric wear indicator
Wear Indicator (Rear Pads) prepared for wear indicator
Width (mm) (Front Pads) 155.1 / 156.4
Width (mm) (Rear Pads) 105.3
Brand Part #
Brand Part #
Audi 1K0 698 451D / 1K0698451D
Audi 1K0 698 451G / 1K0698451G
Audi 1K0 698 451K / 1K0698451K
Audi 3AA 698 451 / 3AA698451
Audi 4F0 615 301G / 4F0615301G
Audi 4F0 615 601E / 4F0615601E
Audi 4F0 698 151D / 4F0698151D
Audi 4F0 698 151K / 4F0698151K
Audi 4F0 698 451A / 4F0698451A
Audi 4F0 698 451D / 4F0698451D
Audi 4F0615301G
Audi 4F0615601E
Audi 8E0 698 151G / 8E0698151G
Audi 8E0 698 451F / 8E0698451F
Audi 8E0 698 451J / 8E0698451J
Audi 8E0 698 451M / 8E0698451M
Volkswagen 1K0 698 451E / 1K0698451E
Volkswagen 1K0 698 451F / 1K0698451F
Volkswagen 1K0 698 451G / 1K0698451G
Volkswagen 1K0 698 451H / 1K0698451H
Volkswagen 1K0 698 451K / 1K0698451K
Volkswagen 3C0 698 451 / 3C0698451
Volkswagen 3C0 698 451A / 3C0698451A
Volkswagen 3C0 698 451B / 3C0698451B
Volkswagen 3C0 698 451C / 3C0698451C
Volkswagen 3C0 698 451D / 3C0698451D
Volkswagen 3C0 698 451E / 3C0698451E
Volkswagen 3C0 698 451F / 3C0698451F
Volkswagen 5N0 698 451 / 5N0698451

This part also goes by the following cross reference.

Cross Reference Part Number:
