Audi Brake Kit – Pads and Rotors Front and Rear (345mm/300mm) (Ceramic) 8E0698451P – Brembo 1632854KIT

Audi Brake Kit – Pads and Rotors Front and Rear (345mm/300mm) (Ceramic) 8E0698451P – Brembo 1632854KIT

BREMBO

Stock: Out of Stock ℹ️ This item is currently unavailable. Check back later.

SKU 1632854KIT
Sold out
$405.99 - $405.99
$405.99
$405.99 - $405.99
$405.99

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

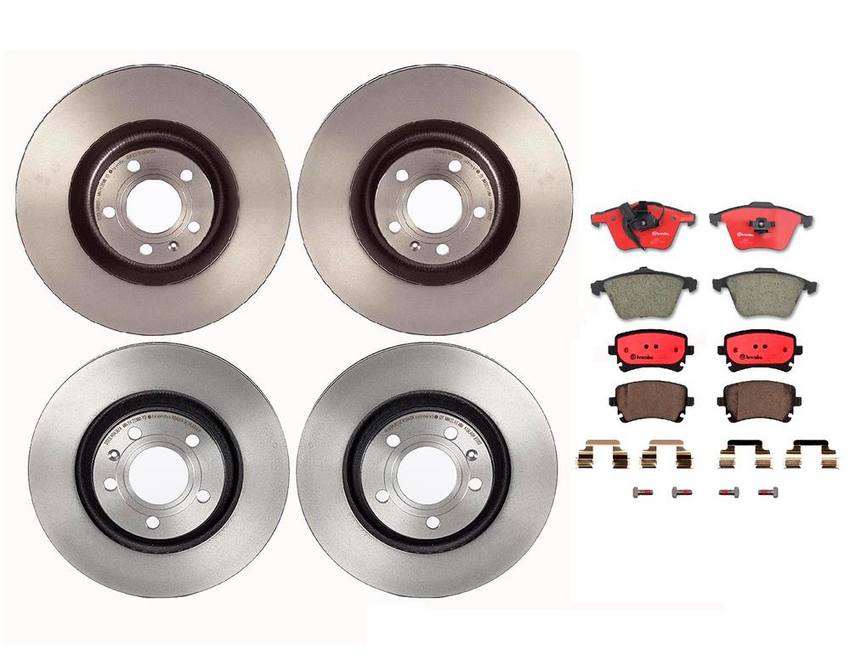

Kit Includes:

2 x Brembo 09.A815.11 Front Disc Brake Rotors

2 x Brembo 09.A814.11 Rear Disc Brake Rotors

1 x Brembo P85084N Front Disc Brake Pad Set

1 x Brembo P85076N Rear Disc Brake Pad Set

Abutment Clips Included (Rear) Yes
Brake System (Front Pads) Teves
Brake System (Rear Pads) Lucas
Coated (Front Rotors) Yes
Coated (Rear Rotors) Yes
Disc Brake Rotor Construction Vented
Features (Rear Pads) with hardware
Fixing Screws (Front Rotors) Yes
Fixing Screws (Rear Rotors) Yes
Friction Material Composition Ceramic
Height (mm) (Front Pads) 72.8
Height (mm) (Rear Pads) 58.7
High Carbon (Front Rotors) Yes
High Carbon (Rear Rotors) Yes
Min TH (Discs)/Max Diameter (Drums) (mm) (Front Rotors) 28
Min TH (Discs)/Max Diameter (Drums) (mm) (Rear Rotors) 20
Nominal Thickness (mm) (Front Pads) 20.3
Nominal Thickness (mm) (Front Rotors) 39
Nominal Thickness (mm) (Rear Pads) 17.4
Nominal Thickness (mm) (Rear Rotors) 22
Outside Diameter (mm) (Front Rotors) 345
Outside Diameter (mm) (Rear Rotors) 300
Pad Wear Sensor Included (Front) Yes
Surface Finishing (Front Pads) chamfered
Surface Finishing (Rear Pads) chamfered
Wear Indicator (Front Pads) with electric wear indicator
Width (mm) (Front Pads) 155.1 / 156.4
Width (mm) (Rear Pads) 116.1
WVA (Front Pads) 23763 / 23801
WVA (Rear Pads) 23326
Brand Part #
Brand Part #
Audi 3D0 698 451A / 3D0698451A
Audi 3D0698451A
Audi 4B3 698 451 / 4B3698451
Audi 4B3 698 451A / 4B3698451A
Audi 4B3698451
Audi 4B3698451A
Audi 4F0 698 151D / 4F0698151D
Audi 4F0 698 151K / 4F0698151K
Audi 4F0 698 451 / 4F0698451
Audi 4F0 698 451F / 4F0698451F
Audi 4F0 698 451H / 4F0698451H
Audi 4F0698151D
Audi 4F0698151K
Audi 4F0698451
Audi 4F0698451F
Audi 4F0698451H
Audi 8E0 615 301K / 8E0615301K
Audi 8E0 615 301T / 8E0615301T
Audi 8E0 615 601K / 8E0615601K
Audi 8E0 615 601R / 8E0615601R
Audi 8E0 698 151G / 8E0698151G
Audi 8E0 698 451C / 8E0698451C
Audi 8E0 698 451H / 8E0698451H
Audi 8E0 698 451N / 8E0698451N
Audi 8E0 698 451P / 8E0698451P
Audi 8E0615301K
Audi 8E0615301T
Audi 8E0615601K
Audi 8E0615601R
Audi 8E0698151G
Audi 8E0698451C
Audi 8E0698451H
Audi 8E0698451N
Audi 8E0698451P

This part also goes by the following cross reference.

Cross Reference Part Number:
