Audi Brake Kit – Pads and Rotors Front and Rear (312mm/256mm) (Xtra) (Ceramic) 8N0615601B – Brembo 1634217KIT

Audi Brake Kit – Pads and Rotors Front and Rear (312mm/256mm) (Xtra) (Ceramic) 8N0615601B – Brembo 1634217KIT

BREMBO

Stock: Out of Stock ℹ️ This item is currently unavailable. Check back later.

SKU 1634217KIT
Sold out
$550.99 - $550.99
$550.99
$550.99 - $550.99
$550.99

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

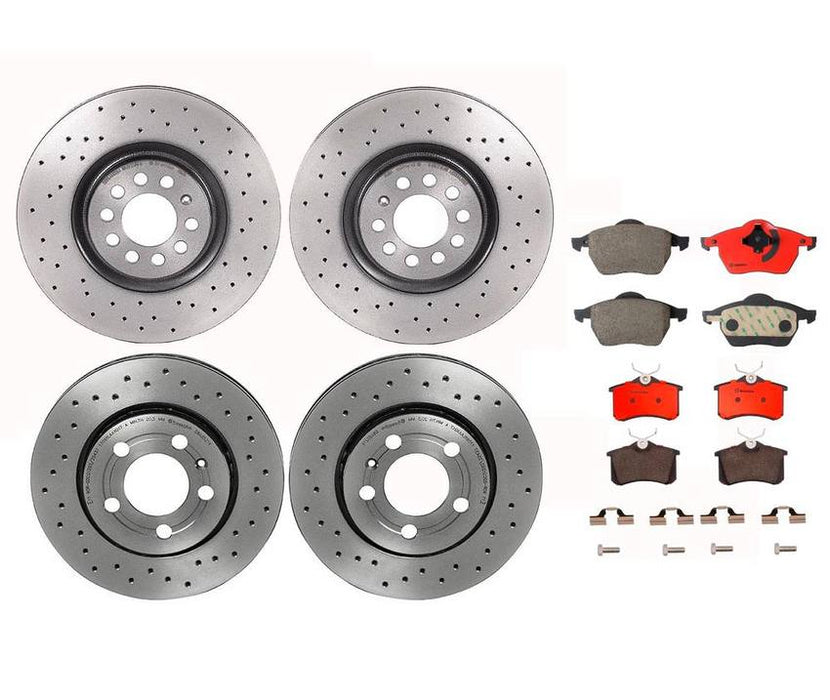

Kit Includes:

2 x Brembo 09.7880.1X Front Disc Brake Rotors

2 x Brembo 09.A652.1X Rear Disc Brake Rotors

1 x Brembo P85039N Front Disc Brake Pad Set

1 x Brembo P61088N Rear Disc Brake Pad Set

Brake System (Front Pads) Teves
Brake System (Rear Pads) Lucas
Coated (Front Rotors) Yes
Coated (Rear Rotors) Yes
Features (Rear Pads) with hardware
Fixing Screws (Front Rotors) Yes
Friction Material Composition Ceramic
Height (mm) (Front Pads) 74
Height (mm) (Rear Pads) 52.8
High Carbon (Front Rotors) Yes
Min TH (Discs)/Max Diameter (Drums) (mm) (Front Rotors) 23
Min TH (Discs)/Max Diameter (Drums) (mm) (Rear Rotors) 20
Nominal Thickness (mm) (Front Pads) 20
Nominal Thickness (mm) (Front Rotors) 25
Nominal Thickness (mm) (Rear Pads) 15
Nominal Thickness (mm) (Rear Rotors) 20
Outside Diameter (mm) (Front Rotors) 312
Outside Diameter (mm) (Rear Rotors) 256
Surface Finishing (Front Pads) chamfered
Surface Type (Front Rotors) Drilled
Surface Type (Rear Rotors) Drilled
Torque Spec (DaNm) (Front Rotors) 12
Wear Indicator (Front Pads) with electric wear indicator
Width (mm) (Front Pads) 156.3
Width (mm) (Rear Pads) 87
WVA (Front Pads) 21848 / 21849
WVA (Rear Pads) 20961
Brand Part #
Brand Part #
Audi 1J0 698 151K / 1J0698151K
Audi 1J0 698 151L / 1J0698151L
Audi 1J0 698 151M / 1J0698151M
Audi 1J0 698 451H / 1J0698451H
Audi 8L0 615 301 / 8L0615301
Audi 8L0615301
Audi 8N0 615 301A / 8N0615301A
Audi 8N0 698 151A / 8N0698151A
Audi 8N0 698 151C / 8N0698151C
Audi 8N0 698 151E / 8N0698151E
Audi 8N0615301A
Seat 8N0615301A
Skoda 8N0615301A
Volkswagen 191 698 451C / 191698451C
Volkswagen 191 698 451D / 191698451D
Volkswagen 1H0 698 451E / 1H0698451E
Volkswagen 1H0 698 451F / 1H0698451F
Volkswagen 8L0 615 301 / 8L0615301
Volkswagen 8L0 615 601 / 8L0615601
Volkswagen 8L0615301
Volkswagen 8L0615601
Volkswagen 8N0 615 301A / 8N0615301A
Volkswagen 8N0 615 601B / 8N0615601B
Volkswagen 8N0615301A
Volkswagen 8N0615601B

This part also goes by the following cross reference.

Cross Reference Part Number:
