VW Brakes Kit – Pads & Rotors Front and Rear (312mm/282mm) (Xtra) (Ceramic) 5Q0615601G – Brembo 1635114KIT

VW Brakes Kit – Pads & Rotors Front and Rear (312mm/282mm) (Xtra) (Ceramic) 5Q0615601G – Brembo 1635114KIT

BREMBO

Stock: Out of Stock ℹ️ This item is currently unavailable. Check back later.

SKU 1635114KIT
Sold out
$469.99 - $469.99
$469.99
$469.99 - $469.99
$469.99

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

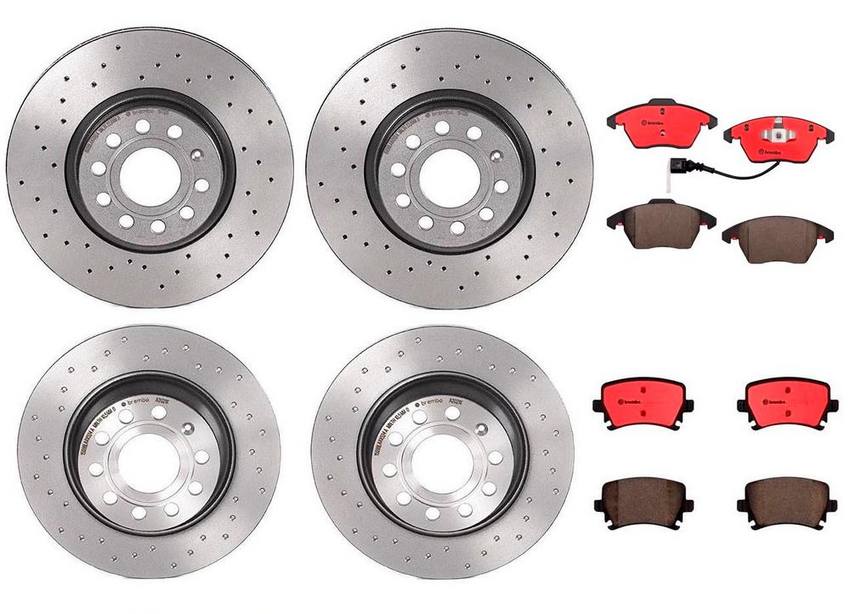

Kit Includes:

2 x Brembo 09.9772.1X Front Disc Brake Rotors

2 x Brembo 08.A202.1X Rear Disc Brake Rotors

1 x Brembo P85075N Front Disc Brake Pad Set

1 x Brembo P85073N Rear Disc Brake Pad Set

Brake System (Front Pads) Teves
Brake System (Rear Pads) Lucas
Braking Surface (Front Rotors) Drilled
Braking Surface (Rear Rotors) Drilled
Centring Diameter (Front Rotors) 65
Centring Diameter (Rear Rotors) 65
Coated (Front Rotors) UV Coated
Coated (Rear Rotors) UV Coated
Diameter (mm) (Front Rotors) 312
Diameter (mm) (Rear Rotors) 282
Fixing Screws (Front Rotors) Included
Fixing Screws (Rear Rotors) Included
Friction Material Composition (Front and Rear Pads) Ceramic
Height (mm) (Front Pads) 66 / 71.5
Height (mm) (Front Rotors) 49.5
Height (mm) (Rear Pads) 56
Height (mm) (Rear Rotors) 48.2
Material (Front Rotors) High Carbon
Material (Rear Rotors) Grey Cast Iron
Minimum Thickness (mm) (Front Rotors) 22.8
Minimum Thickness (mm) (Rear Rotors) 10.5
Nominal Thickness (mm) (Front Pads) 20.1
Nominal Thickness (mm) (Front Rotors) 25
Nominal Thickness (mm) (Rear Pads) 17.2
Nominal Thickness (mm) (Rear Rotors) 12
Number of Holes (Front Rotors) 5
Number of Holes (Rear Rotors) 5
Surface Finishing (Front Pads) chamfered
Surface Finishing (Rear Pads) chamfered
Torque Spec (Nm) (Front Rotors) 120
Torque Spec (Nm) (Rear Rotors) 120
Ventilation Type (Front Rotors) vented
Ventilation Type (Rear Rotors) solid
Wear Indicator (Front Pads) with electric wear indicator
Wear Indicator (Rear Pads) prepared for wear indicator
Width (mm) (Front Pads) 155.2 / 156.5
Width (mm) (Rear Pads) 105.3
WVA (Front Pads) 23587 / 23588 / 23589
WVA (Rear Pads) 23914
Brand Part #
Brand Part #
Audi 1K0 615 301A AA / 1K0615301AAA
Audi 1K0 615 601M / 1K0615601M
Audi 1K0615301AA
Audi 1K0615601M
Audi 5C0 615 301B / 5C0615301B
Audi 5C0615301B
Audi 5Q0 615 301F / 5Q0615301F
Audi 5Q0615301F
Seat 1K0615301AA
Skoda 1K0615301AA
Volkswagen 1K0 615 301 AA / 1K0615301AA
Volkswagen 1K0 615 601 AD / 1K0615601AD
Volkswagen 1K0615301AA
Volkswagen 1K0615601AD
Volkswagen 561 615 301A / 561615301A
Volkswagen 561615301A
Volkswagen 5C0 615 301B / 5C0615301B
Volkswagen 5C0615301B
Volkswagen 5Q0 615 301F / 5Q0615301F
Volkswagen 5Q0615301F

This part also goes by the following cross reference.

Cross Reference Part Number:
