Audi Brake Kit – Pads and Rotors Front and Rear (312mm/245mm) (Xtra) (Ceramic) 8E0698451L – Brembo 3003101KIT

Audi Brake Kit – Pads and Rotors Front and Rear (312mm/245mm) (Xtra) (Ceramic) 8E0698451L – Brembo 3003101KIT

BREMBO

Stock: Out of Stock ℹ️ This item is currently unavailable. Check back later.

SKU 3003101KIT
Sold out
$455.99 - $455.99
$455.99
$455.99 - $455.99
$455.99

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

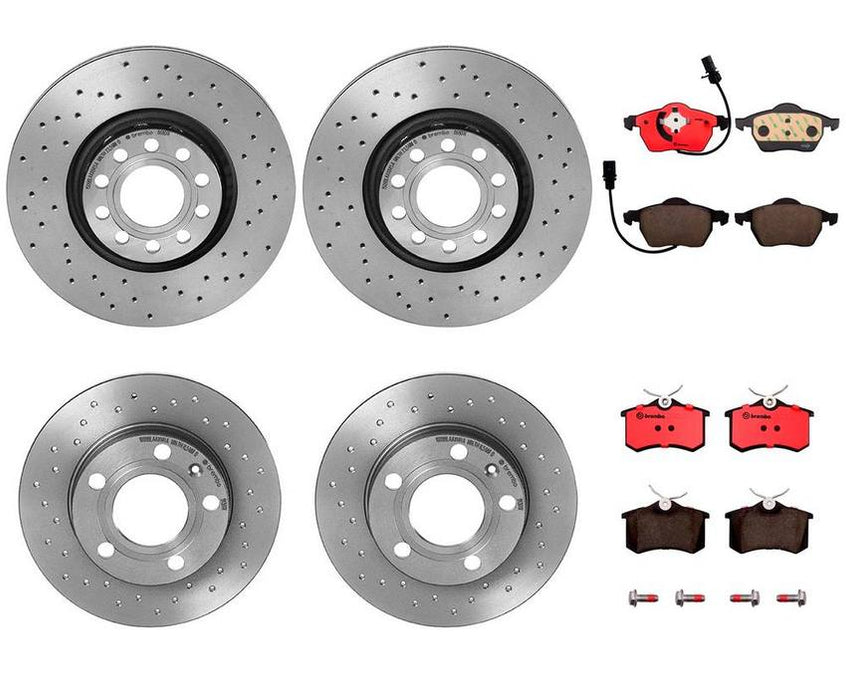

Kit Includes:

2 x Brembo 09.8690.1X Front Disc Brake Rotors Drilled Xtra

2 x Brembo 08.9136.1X Rear Disc Brake Rotors Drilled Xtra

1 x Brembo P85017N Rear Disc Brake Pad Set Ceramic

1 x Brembo P85085N Front Disc Brake Pad Set Ceramic

Brake System (Front Pads) Teves
Brake System (Rear Pads) Lucas
Braking Surface (Front Rotors) Drilled
Braking Surface (Rear Rotors) drilled
Centring Diameter (Front Rotors) 68
Centring Diameter (Rear Rotors) 68
Coated (Front Rotors) UV Coated
Coated (Rear Rotors) UV Coated
Diameter (mm) (Front Rotors) 312
Diameter (mm) (Rear Rotors) 245
Features (Rear Pads) with hardware
Fixing Screws (Front Rotors) Included
Fixing Screws (Rear Rotors) Included
Friction Material Composition (Pads) Ceramic
Height (mm) (Front Pads) 74
Height (mm) (Front Rotors) 46.2
Height (mm) (Rear Pads) 52.8
Height (mm) (Rear Rotors) 39.8
Material (Front Rotors) High Carbon
Material (Rear Rotors) Grey Cast Iron
Minimum Thickness (mm) (Front Rotors) 23.5
Minimum Thickness (mm) (Rear Rotors) 8
Nominal Thickness (mm) (Front Pads) 20.4 / 19.6
Nominal Thickness (mm) (Front Rotors) 25
Nominal Thickness (mm) (Rear Pads) 15.2
Nominal Thickness (mm) (Rear Rotors) 10
Number of Holes (Front Rotors) 5
Number of Holes (Rear Rotors) 5
Surface Finishing (Front Pads) chamfered
Surface Finishing (Rear Pads) chamfered
Torque Spec (Nm) (Front Rotors) 120
Torque Spec (Nm) (Rear Rotors) 120
Ventilation Type (Front Rotors) vented
Ventilation Type (Rear Rotors) solid
Wear Indicator (Front Pads) with electric wear indicator
Width (mm) (Front Pads) 156.3 / 156.4
Width (mm) (Rear Pads) 87.1
WVA (Front Pads) 20676 / 23018 / 23019
WVA (Rear Pads) 20961 / 23554
Brand Part #
Brand Part #
Audi 1K0698151B
Audi 3B0 615 301B / 3B0615301B
Audi 3B0615301B
Audi 440 602 070R / 440602070R
Audi 440 607 960R / 440607960R
Audi 440602070R
Audi 440607960R
Audi 4A0 615 601A / 4A0615601A
Audi 4A0615601A
Audi 4B0 615 301A / 4B0615301A
Audi 4B0 698 151A AB / 4B0698151AAB
Audi 4B0 698 151A AF / 4B0698151AAF
Audi 4B0 698 151E / 4B0698151E
Audi 4B0 698 151K / 4B0698151K
Audi 4B0615301A
Audi 4B0698151AB
Audi 4B0698151AC
Audi 4B0698151AD
Audi 4B0698151AF
Audi 4B0698151E
Audi 4B0698151K
Audi 4B0698151R
Audi 4D0 698 151J / 4D0698151J
Audi 4D0698151J
Audi 4F0698151A
Audi 8D0 615 301J / 8D0615301J
Audi 8D0615301J
Audi 8E0 615 301R / 8E0615301R
Audi 8E0 698 451D / 8E0698451D
Audi 8E0 698 451E / 8E0698451E
Audi 8E0 698 451L / 8E0698451L
Audi 8E0615301R
Audi 8E0615601B
Audi 8E0615601P
Audi 8E0698151C
Audi 8E0698451D
Audi 8E0698451E
Audi 8E0698451L
Skoda 4A0615601A
Skoda 4B0615301A
Skoda 8D0615301J
Skoda 8E0615301R
Volkswagen 4A0 615 601A / 4A0615601A
Volkswagen 4A0615601A
Volkswagen 4B0 615 301A / 4B0615301A
Volkswagen 4B0 698 151 AF / 4B0698151AF
Volkswagen 4B0 698 151K / 4B0698151K
Volkswagen 4B0 698 151N / 4B0698151N
Volkswagen 4B0615301A
Volkswagen 4B0698151AF
Volkswagen 4B0698151K
Volkswagen 4B0698151N
Volkswagen 8D0 615 301J / 8D0615301J
Volkswagen 8D0615301J
Volkswagen 8E0 615 301R / 8E0615301R
Volkswagen 8E0 615 601 / 8E0615601
Volkswagen 8E0615301R
Volkswagen 8E0615601

This part also goes by the following cross reference.

Cross Reference Part Number:
