VW Brakes Kit – Pads & Rotors Front and Rear (312mm/272mm) (Ceramic) 7N0698451A – Brembo 3269317KIT

VW Brakes Kit – Pads & Rotors Front and Rear (312mm/272mm) (Ceramic) 7N0698451A – Brembo 3269317KIT

BREMBO

Stock: Out of Stock ℹ️ This item is currently unavailable. Check back later.

SKU 3269317KIT
Sold out
$334.99 - $334.99
$334.99
$334.99 - $334.99
$334.99

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

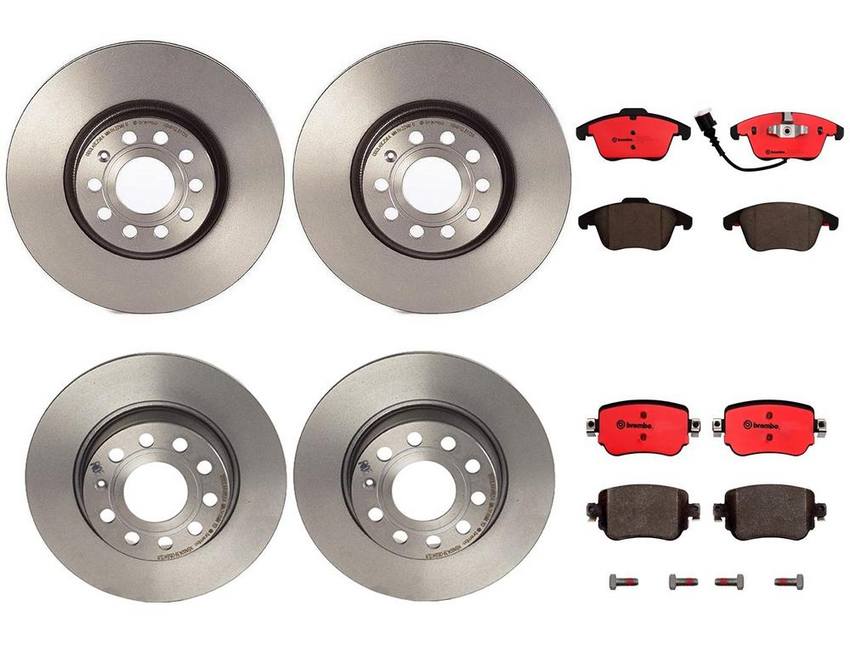

Kit Includes:

2 x Brembo 09.9772.11 Front Disc Brake Rotors

2 x Brembo 08.B413.11 Rear Disc Brake Rotors

1 x Brembo P85130N Front Disc Brake Pad Set Ceramic

1 x Brembo P85140N Rear Disc Brake Pad Set Ceramic

Brake Type (Front Pads) Teves
Brake Type (Rear Pads) TRW
Center Diameter (Front Rotors) 65
Center Diameter (Rear Rotors) 65
Coated (Front Rotors) UV Coated
Coated (Rear Rotors) UV Coated
Diameter (Front Rotors) 312
Diameter (Rear Rotors) 272
Friction Material Composition (Pads) Ceramic
Hardware Material (Rear Pads) w/ith hardware
Height (Front Pads) 72 / 66.7
Height (Front Rotors) 49.5
Height (Rear Pads) 52.2
Height (Rear Rotors) 48.2
Indicator Type (Front Pads) with electric wear indicator
Indicator Type (Rear Pads) w/ acoustic wear indicator
Material (Front Rotors) High Carbon
Material (Rear Rotors) Grey Cast Iron
Minimum Thickness (Front Rotors) 22
Minimum Thickness (Rear Rotors) 8
Nominal Thickness (Front Pads) 20
Nominal Thickness (Front Rotors) 25
Nominal Thickness (Rear Pads) 17.5
Nominal Thickness (Rear Rotors) 10
Quantity (Front Rotors) 5
Quantity (Rear Rotors) 5
Screw Material (Front Rotors) Included
Screw Material (Rear Rotors) Included
Solid Or Vented Type Rotor (Front Rotors) vented
Solid Or Vented Type Rotor (Rear Rotors) solid
Surface Type (Front Pads) chamfered
Surface Type (Rear Pads) chamfered
Torque Increments (Front Rotors) 120
Torque Increments (Rear Rotors) 120
Width (Front Pads) 155.2
Width (Rear Pads) 104.10
Brand Part #
Brand Part #
Audi 1K0615301AA
Audi 1K0615601AA
Audi 5C0615301B
Audi 5C0615301E
Audi 5N0698151
Audi 5N0698151A
Audi 5N0698151B
Audi 5N0698151C
Audi 5Q0615301F
Audi 5Q0615601D
Audi 6R0615601
Audi 7N0698451A
Audi 8U0698451F
Seat 1K0615301AA
Skoda 1K0615301AA
Volkswagen 1K0615301AA
Volkswagen 1K0615601AA
Volkswagen 561615301
Volkswagen 561615301A
Volkswagen 561615301B
Volkswagen 561615601
Volkswagen 561615601A
Volkswagen 5C0615301B
Volkswagen 5C0615301E
Volkswagen 5N0698151
Volkswagen 5N0698151A
Volkswagen 5N0698151B
Volkswagen 5N0698151C
Volkswagen 5Q0615301F
Volkswagen 5Q0615601D
Volkswagen 7N0698451A
Volkswagen 8U0698451F

This part also goes by the following cross reference.

Cross Reference Part Number:
