VW Brakes Kit – Pads & Rotors Front and Rear (312mm/272mm) (Ceramic) 8J0698151C – Brembo 4166781KIT

VW Brakes Kit – Pads & Rotors Front and Rear (312mm/272mm) (Ceramic) 8J0698151C – Brembo 4166781KIT

BREMBO

Stock: Out of Stock ℹ️ This item is currently unavailable. Check back later.

SKU 4166781KIT
Sold out
$350.99 - $350.99
$350.99
$350.99 - $350.99
$350.99

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

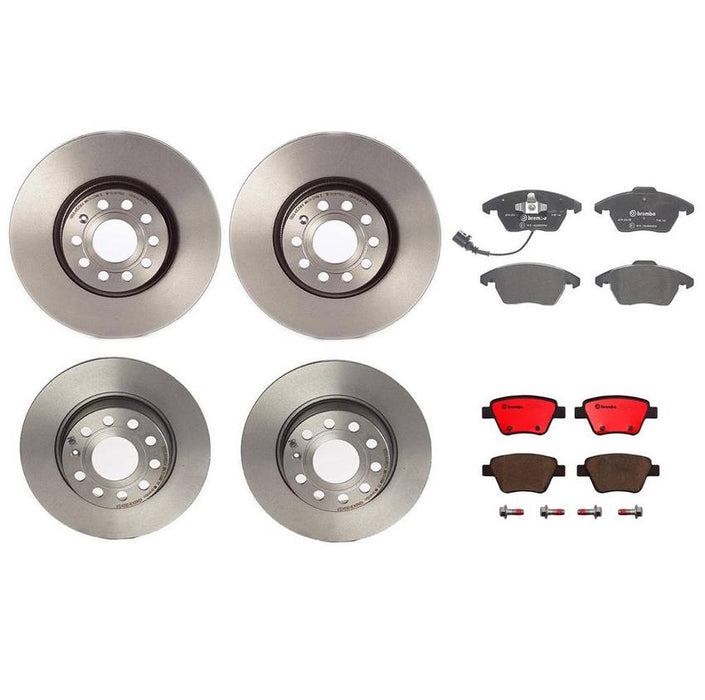

Kit Includes:

1 x Brembo P85146N Front Ceramic Disc Brake Pad Set with electric wear indicator

1 x Brembo P85114N Rear Ceramic Disc Brake Pad Set with hardware

2 x Brembo 09.9772.11 Front Coated Vented High Carbon 312x25mm 5 Lugs Disc Brake Rotors

2 x Brembo 08.B413.11 Rear Solid & Coated Grey Cast Iron 272mm Disc Brake Rotors

Brake System (Front Pads) Teves
Brake System (Rear Pads) Bosch
Centering Diameter (MM) (Front Rotors) 65
Centering Diameter (MM) (Rear Rotors) 65
Features (Rear Pads) with hardware
Fixing Screws (Front Rotors) included
Fixing Screws (Rear Rotors) included
Friction Material Composition (Pads) Ceramic
Height (MM) (Front Pads) 66/71.5
Height (MM) (Front Rotors) 49.5
Height (MM) (Rear Pads) 53.5
Height (MM) (Rear Rotors) 48.2
Material (Front Rotors) High Carbon
Material (Rear Rotors) Grey Cast Iron
Minimum Thickness (MM) (Front Rotors) 22
Minimum Thickness (MM) (Rear Rotors) 8
Nominal Thickness (MM) (Front Pads) 20.3
Nominal Thickness (MM) (Front Rotors) 25
Nominal Thickness (MM) (Rear Pads) 16.5
Nominal Thickness (MM) (Rear Rotors) 10
Number of Holes (Front Rotors) 5
Number of Holes (Rear Rotors) 5
Outside Diameter (MM) (Front Rotors) 312
Outside Diameter (MM) (Rear Rotors) 272
Rust Resistant Coating (Front Rotors) UV Coated
Rust Resistant Coating (Rear Rotors) UV Coated
Solid Or Vented Type Rotor (Front Rotors) vented
Solid Or Vented Type Rotor (Rear Rotors) solid
Suface Finishing (Rear Pads) chamfered
Torque Spec(NM) (Front Rotors) 120
Torque Spec(NM) (Rear Rotors) 120
Wear Indicator (Front Pads) with electric wear indicator
Width (MM) (Front Pads) 155.2
Width (MM) (Rear Pads) 109.3
Brand Part #
Brand Part #
Audi 1K0615301AA
Audi 1K0615601AA
Audi 3C0698151A
Audi 3C0698151C
Audi 3C0698151D
Audi 3C0698151J
Audi 5C0615301B
Audi 5C0615301E
Audi 5Q0615301F
Audi 5Q0615601D
Audi 6R0615601
Audi 8J0698151
Audi 8J0698151C
Seat 1K0615301AA
Skoda 1K0615301AA
Volkswagen 1K0615301AA
Volkswagen 1K0615601AA
Volkswagen 3C0698151A
Volkswagen 3C0698151C
Volkswagen 3C0698151D
Volkswagen 3C0698151J
Volkswagen 561615301
Volkswagen 561615301A
Volkswagen 561615301B
Volkswagen 561615601
Volkswagen 561615601A
Volkswagen 5C0615301B
Volkswagen 5C0615301E
Volkswagen 5K0698451
Volkswagen 5K0698451A
Volkswagen 5K0698451C
Volkswagen 5Q0615301F
Volkswagen 5Q0615601D
Volkswagen 8J0698151
Volkswagen 8J0698151C

This part also goes by the following cross reference.

Cross Reference Part Number:
