Full subframe + wishbones PQ35 FWD set

PQ35 (Audi TT, TTS, TTRS, S3, RS3, VW Golf 5, 6) front wheel drive full suspension kit.

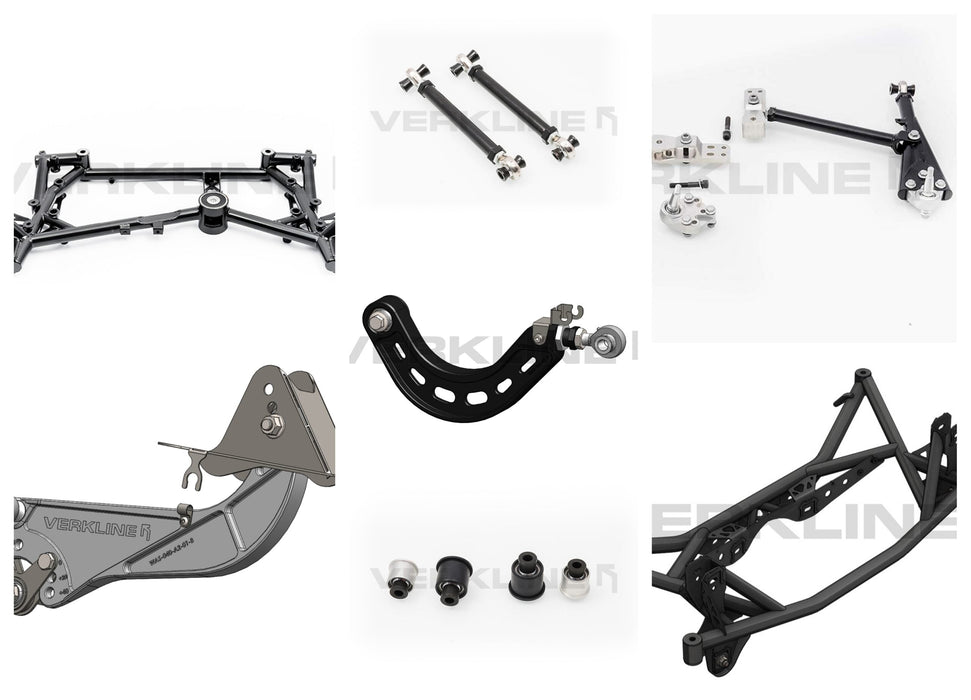

The kit consists of (you can click bellow on the name of the item to view detail product description):
– Front Light Weight Tubular Subframe.
– Rear Light weight Tubular Subframe.
– Adjustable tubular front race wishbones with modified kinematics.
– Spherical adjustable MQB Rear Trailing Arm Kit with rear anti-roll bar link.
– Rear fully adjustable control arms uniball.
– Adjustable rear toe links metal rod ends.
– Rear spring sitting wishbone and wheel bearing housing inserts.

Technical details
– Mountings to the chassis using are on standard attachment points.
– Full 3D CAD designed.
– FEA Tested and additional reinforcement to the original design was made.
– Manufactured fully from T45 tubing and S355 steel to the ultimate strength.
– Tig Welded.
– Motorsport quality Rod Ends

Used in PQ35 platform cars (Type numbers in brackets):
Audi A3 Mk2 (8P) (2004-2013) FWD
Seat Leon Mk2 (1P) (2005-2011) FWD
Volkswagen Golf Mk5 (1K) (2003-2007) FWD
Volkswagen Golf Mk6 (5K) (2008-2014) FWD

Notice: Sold for off road, track and racing applications only. Installation of this product will introduce some additional NVH (noise, vibration, and harshness) transfer into the cabin. We strongly advice to mount the subframe in qualified and experienced workshop that would know what are doing.
