Wilwood Proportioning Valve - Knob Adjust

Wilwood Proportioning Valve - Knob Adjust

WILWOOD

Stock: In Stock – Ready to Ship ℹ️ This item is in stock and will ship immediately.

SKU WIL260-8419
Save 7% Save 7%
$52.32
$52.32 - $52.32
$52.32
$48.44
$48.44 - $48.44
$48.44

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

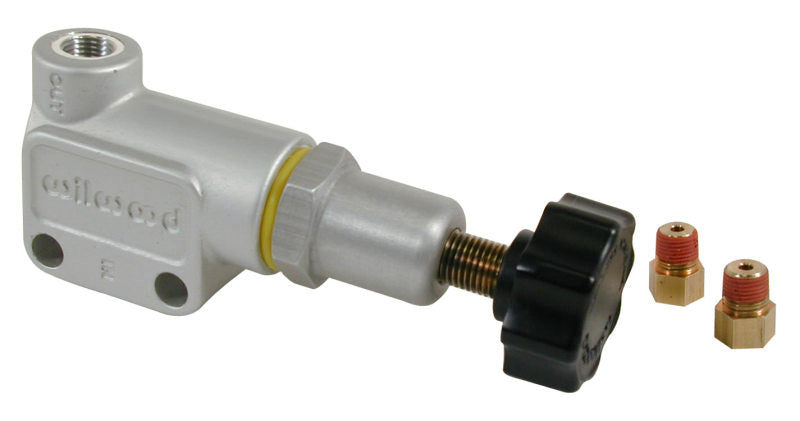

The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 100-1000 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. Adjuster knob with fine thread tuning provides precise pressure adjustment. Valves weigh only 5.2 ounces and have two .25” side mounting holes spaced 1.00” apart. Inlet / outlet ports are 1/8-27 NPT and valves are supplied with two 1/8-27 NPT to 3/8-24 inverted flare female fittings that will fit most domestic 3/16th hard brake lines.

This part also goes by the following cross reference.

Cross Reference Part Number:
