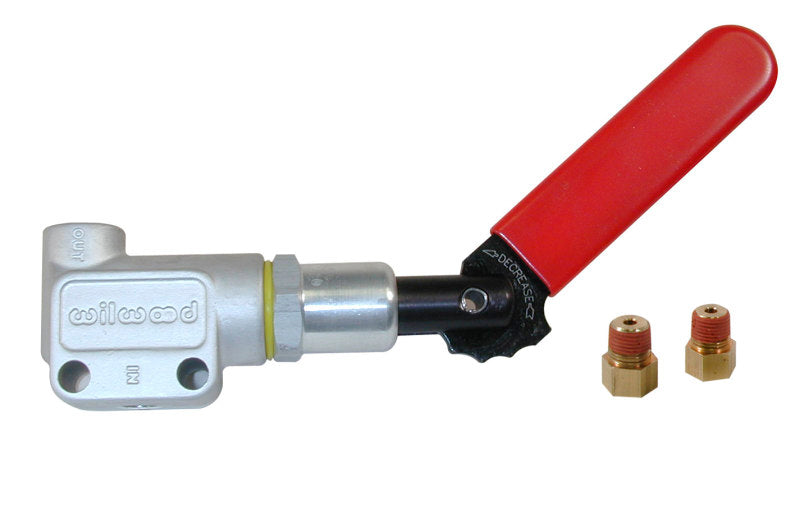

Wilwood Proportioning Valve - Lever Adjust

Wilwood Proportioning Valve - Lever Adjust

WILWOOD

Stock: In Stock – Ready to Ship ℹ️ This item is in stock and will ship immediately.

SKU WIL260-8420
Save 7% Save 7%
$103.88
$103.88 - $103.88
$103.88
$96.18
$96.18 - $96.18
$96.18

We show live inventory for in-stock items. Products may sell out due to high demand but are restocked regularly. Out-of-stock items can still be ordered and usually arrive within a few weeks.

The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 100-1000 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. This proportioning valve has six preset points actuated by moving a lever allowing racers to quickly adjust brake bias during a race. The lever “clicks” into the six positions for positive adjustment. Valves weigh only 6.1 ounces (lever), and have two .25” side mounting holes spaced 1.00” apart. Inlet / outlet ports are 1/8-27 NPT and valves are supplied with two 1/8-27 NPT to 3/8-24 inverted flare female fittings that will fit most domestic 3/16th hard brake lines.

This part also goes by the following cross reference.

Cross Reference Part Number:
