Description

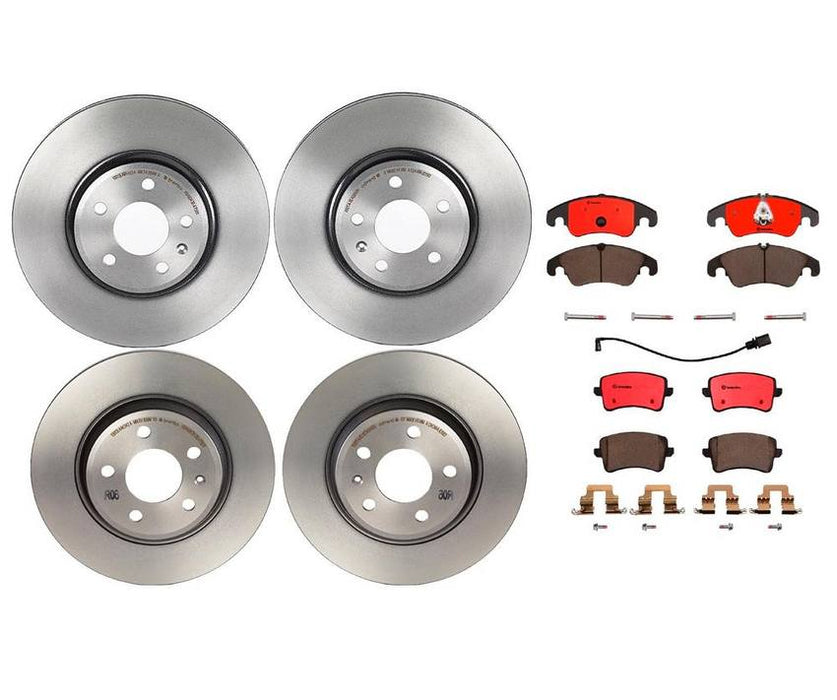

Kit Includes:
2 x Brembo 09.A758.11 Front Disc Brake Rotors
2 x Brembo 08.A759.11 Rear Disc Brake Rotors
1 x Brembo P85099N Rear Disc Brake Pad Set Ceramic
1 x Brembo P85098N Front Disc Brake Pad Set Ceramic
| Brake System | (Front Pads) Lucas |
| Brake System | (Rear Pads) Lucas |
| Centring Diameter | (Front Rotors) 68 |
| Centring Diameter | (Rear Rotors) 68 |
| Coated | (Front Rotors) UV Coated |
| Coated | (Rear Rotors) UV Coated |
| Diameter (mm) | (Front Rotors) 320 |
| Diameter (mm) | (Rear Rotors) 300 |
| Features | (Front Pads) with hardware |
| Features | (Rear Pads) with hardware |
| Fixing Screws | (Front Rotors) Included |
| Fixing Screws | (Rear Rotors) Included |
| Friction Material Composition | (Front and Rear Pads) Ceramic |
| Height (mm) | (Front Pads) 72.9 / 73.5 |
| Height (mm) | (Front Rotors) 52.2 |
| Height (mm) | (Rear Pads) 58.6 |
| Height (mm) | (Rear Rotors) 36.2 |
| Material | (Front Rotors) High Carbon |
| Material | (Rear Rotors) Grey Cast Iron |
| Minimum Thickness (mm) | (Front Rotors) 28 |
| Minimum Thickness (mm) | (Rear Rotors) 10 |
| Nominal Thickness (mm) | (Front Pads) 18.3 / 18.8 |
| Nominal Thickness (mm) | (Front Rotors) 30 |
| Nominal Thickness (mm) | (Rear Pads) 17.5 |
| Nominal Thickness (mm) | (Rear Rotors) 12 |
| Number of Holes | (Front Rotors) 5 |
| Number of Holes | (Rear Rotors) 5 |
| Surface Finishing | (Front Pads) chamfered; slotted |
| Surface Finishing | (Rear Pads) chamfered |
| Torque Spec (Nm) | (Front Rotors) 120 |
| Torque Spec (Nm) | (Rear Rotors) 120 |
| Ventilation Type | (Front Rotors) PVT |
| Ventilation Type | (Rear Rotors) solid |
| Wear Indicator | (Front Pads) with electric wear indicator |
| Width (mm) | (Front Pads) 188 |
| Width (mm) | (Rear Pads) 116.1 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 4G0 698 151D / 4G0698151D |
| Audi | 4G0698151D |
| Audi | 8K0 69 8 45 51 / 8K06984551 |
| Audi | 8K0 615 301A / 8K0615301A |
| Audi | 8K0 615 601B / 8K0615601B |
| Audi | 8K0 698 151 / 8K0698151 |
| Audi | 8K0 698 151B / 8K0698151B |
| Audi | 8K0 698 151C / 8K0698151C |
| Audi | 8K0 698 151D / 8K0698151D |
| Audi | 8K0 698 151E / 8K0698151E |
| Audi | 8K0 698 151G / 8K0698151G |
| Audi | 8K0 698 151H / 8K0698151H |
| Audi | 8K0 698 151J / 8K0698151J |
| Audi | 8K0 698 151K / 8K0698151K |
| Audi | 8K0 698 151L / 8K0698151L |
| Audi | 8K0 698 451 / 8K0698451 |
| Audi | 8K0 698 451A / 8K0698451A |
| Audi | 8K0 698 451B / 8K0698451B |
| Audi | 8K0 698 451C / 8K0698451C |
| Audi | 8K0 698 451D / 8K0698451D |
| Audi | 8K0615301A |
| Audi | 8K0615601B |
| Audi | 8K0698151 |
| Audi | 8K0698151B |
| Audi | 8K0698151C |
| Audi | 8K0698151D |
| Audi | 8K0698151E |
| Audi | 8K0698151G |
| Audi | 8K0698151H |
| Audi | 8K0698151J |
| Audi | 8K0698151K |
| Audi | 8K0698151L |
| Audi | 8R0 698 151 / 8R0698151 |
| Audi | 8R0 698 151A / 8R0698151A |
| Audi | 8R0698151 |
| Audi | 8R0698151A |
