Description

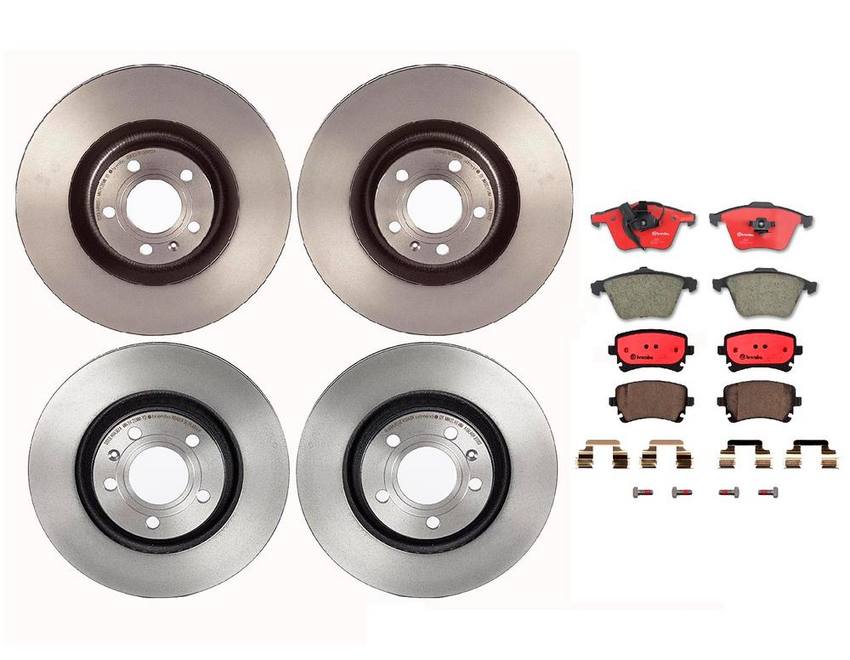

Kit Includes:

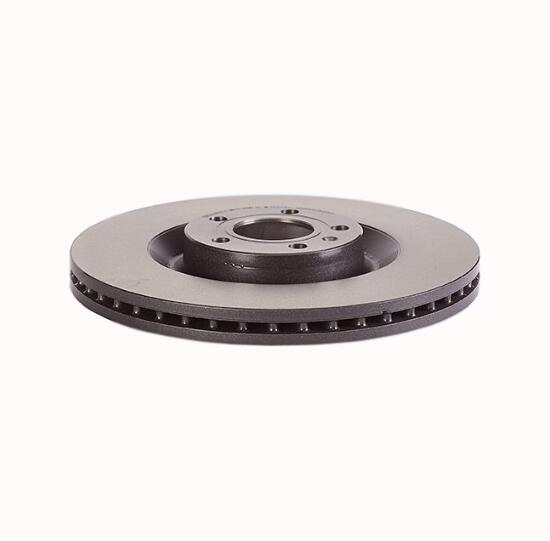

2 x Brembo 09.A815.11 Front Disc Brake Rotors

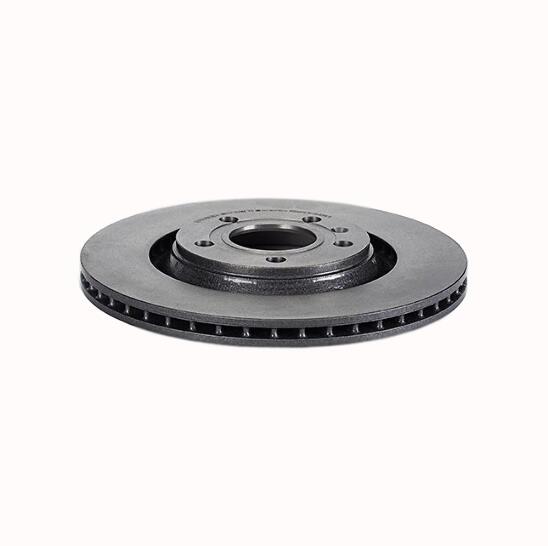

2 x Brembo 09.A814.11 Rear Disc Brake Rotors
1 x Brembo P85084N Front Disc Brake Pad Set
1 x Brembo P85076N Rear Disc Brake Pad Set
| Abutment Clips Included | (Rear) Yes |
| Brake System | (Front Pads) Teves |
| Brake System | (Rear Pads) Lucas |
| Coated | (Front Rotors) Yes |
| Coated | (Rear Rotors) Yes |
| Disc Brake Rotor Construction | Vented |
| Features | (Rear Pads) with hardware |
| Fixing Screws | (Front Rotors) Yes |
| Fixing Screws | (Rear Rotors) Yes |
| Friction Material Composition | Ceramic |
| Height (mm) | (Front Pads) 72.8 |
| Height (mm) | (Rear Pads) 58.7 |
| High Carbon | (Front Rotors) Yes |
| High Carbon | (Rear Rotors) Yes |
| Min TH (Discs)/Max Diameter (Drums) (mm) | (Front Rotors) 28 |
| Min TH (Discs)/Max Diameter (Drums) (mm) | (Rear Rotors) 20 |
| Nominal Thickness (mm) | (Front Pads) 20.3 |
| Nominal Thickness (mm) | (Front Rotors) 39 |
| Nominal Thickness (mm) | (Rear Pads) 17.4 |
| Nominal Thickness (mm) | (Rear Rotors) 22 |
| Outside Diameter (mm) | (Front Rotors) 345 |
| Outside Diameter (mm) | (Rear Rotors) 300 |
| Pad Wear Sensor Included | (Front) Yes |
| Surface Finishing | (Front Pads) chamfered |
| Surface Finishing | (Rear Pads) chamfered |
| Wear Indicator | (Front Pads) with electric wear indicator |
| Width (mm) | (Front Pads) 155.1 / 156.4 |
| Width (mm) | (Rear Pads) 116.1 |
| WVA | (Front Pads) 23763 / 23801 |
| WVA | (Rear Pads) 23326 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 3D0 698 451A / 3D0698451A |
| Audi | 3D0698451A |
| Audi | 4B3 698 451 / 4B3698451 |
| Audi | 4B3 698 451A / 4B3698451A |
| Audi | 4B3698451 |
| Audi | 4B3698451A |
| Audi | 4F0 698 151D / 4F0698151D |
| Audi | 4F0 698 151K / 4F0698151K |
| Audi | 4F0 698 451 / 4F0698451 |
| Audi | 4F0 698 451F / 4F0698451F |
| Audi | 4F0 698 451H / 4F0698451H |
| Audi | 4F0698151D |
| Audi | 4F0698151K |
| Audi | 4F0698451 |
| Audi | 4F0698451F |
| Audi | 4F0698451H |
| Audi | 8E0 615 301K / 8E0615301K |
| Audi | 8E0 615 301T / 8E0615301T |
| Audi | 8E0 615 601K / 8E0615601K |
| Audi | 8E0 615 601R / 8E0615601R |
| Audi | 8E0 698 151G / 8E0698151G |
| Audi | 8E0 698 451C / 8E0698451C |
| Audi | 8E0 698 451H / 8E0698451H |
| Audi | 8E0 698 451N / 8E0698451N |
| Audi | 8E0 698 451P / 8E0698451P |
| Audi | 8E0615301K |
| Audi | 8E0615301T |
| Audi | 8E0615601K |
| Audi | 8E0615601R |
| Audi | 8E0698151G |
| Audi | 8E0698451C |
| Audi | 8E0698451H |
| Audi | 8E0698451N |
| Audi | 8E0698451P |
