Description

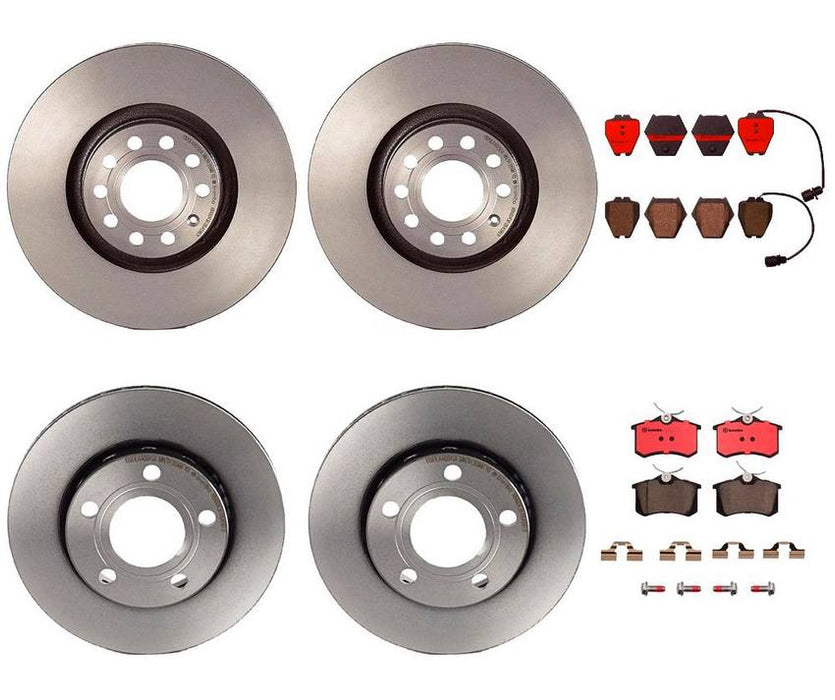

Kit Includes:
2 x Brembo 09.A598.11 Front Disc Brake Rotors
2 x Brembo 09.A597.11 Rear Disc Brake Rotors
1 x Brembo P85054N Front Disc Brake Pad Set
1 x Brembo P85020N Rear Disc Brake Pad Set
| Brake System | ( Front Pads ) Lucas |
| Brake System | ( Rear Pads ) Lucas |
| Centring Diameter | ( Front Rotors ) 68 |
| Centring Diameter | ( Rear Rotors ) 68 |
| Coated | ( Front Rotors ) UV Coated |
| Coated | ( Rear Rotors ) UV Coated |
| Diameter (mm) | ( Front Rotors ) 320 |
| Diameter (mm) | ( Rear Rotors ) 256 |
| Features | ( Rear Pads ) with hardware |
| Fixing Screws | ( Front Rotors ) Included |
| Friction Material Composition | Ceramic |
| Height (mm) | ( Front Pads ) 74.6 / 75.4 |
| Height (mm) | ( Front Rotors ) 46.2 |
| Height (mm) | ( Rear Pads ) 52.8 |
| Height (mm) | ( Rear Rotors ) 47.8 |
| Material | ( Front Rotors ) High Carbon |
| Material | ( Rear Rotors ) High Carbon |
| Minimum Thickness (mm) | ( Front Rotors ) 28 |
| Minimum Thickness (mm) | ( Rear Rotors ) 20 |
| Nominal Thickness (mm) | ( Front Pads ) 17.5 |
| Nominal Thickness (mm) | ( Front Rotors ) 29.9 |
| Nominal Thickness (mm) | ( Rear Pads ) 17.2 |
| Nominal Thickness (mm) | ( Rear Rotors ) 22 |
| Number of Holes | ( Front Rotors ) 5 |
| Number of Holes | ( Rear Rotors ) 5 |
| Surface Finishing | ( Front Pads ) chamfered |
| Surface Finishing | ( Rear Pads ) chamfered |
| Torque Spec (Nm) | ( Front Rotors ) 120 |
| Torque Spec (Nm) | ( Rear Rotors ) 120 |
| Ventilation Type | ( Front Rotors ) vented |
| Ventilation Type | ( Rear Rotors ) vented |
| Wear Indicator | ( Front Pads ) with electric wear indicator |
| Width (mm) | ( Front Pads ) 63.5 / 77.7 |
| Width (mm) | ( Rear Pads ) 87 |
| WVA | ( Front Pads ) 23119 / 23280 / 23828 |
| WVA | ( Rear Pads ) 20961 / 23554 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 1J0 698 451E / 1J0698451E |
| Audi | 1J0 698 451J / 1J0698451J |
| Audi | 1J0 698 451L / 1J0698451L |
| Audi | 1J0 698 451N / 1J0698451N |
| Audi | 1K0 698 451J / 1K0698451J |
| Audi | 3B0 698 451 / 3B0698451 |
| Audi | 4B0 698 151S / 4B0698151S |
| Audi | 4B0 698 451 / 4B0698451 |
| Audi | 4B0 698 451B / 4B0698451B |
| Audi | 4B0 698 451C / 4B0698451C |
| Audi | 4B0 698 451E / 4B0698451E |
| Audi | 4B3 698 151 / 4B3698151 |
| Audi | 4B3 698 151B / 4B3698151B |
| Audi | 4D0 698 151A AC / 4D0698151AAC |
| Audi | 4D0 698 151C / 4D0698151C |
| Audi | 4D0 698 151S / 4D0698151S |
| Audi | 4D0 698 451C / 4D0698451C |
| Audi | 8D0 615 301M / 8D0615301M |
| Audi | 8D0 615 601D / 8D0615601D |
| Audi | 8D0615301M |
| Audi | 8D0615601D |
| Audi | 8E0 615 301A AD / 8E0615301AAD |
| Audi | 8E0 698 451 / 8E0698451 |
| Audi | 8E0 698 451A / 8E0698451A |
| Audi | 8E0 698 451B / 8E0698451B |
| Audi | 8E0615301AD |
| Seat | 8D0615301M |
| Seat | 8E0615301AD |
| Volkswagen | 1E0 698 451 / 1E0698451 |
| Volkswagen | 1E0 698 451B / 1E0698451B |
| Volkswagen | 1E0 698 451C / 1E0698451C |
| Volkswagen | 1E0 698 451E / 1E0698451E |
| Volkswagen | 1E0 698 451G / 1E0698451G |
| Volkswagen | 1H0 690 451 / 1H0690451 |
| Volkswagen | 1H0 690 451A / 1H0690451A |
| Volkswagen | 1H0 698 451 / 1H0698451 |
| Volkswagen | 1H0 698 451A / 1H0698451A |
| Volkswagen | 1H0 698 451C / 1H0698451C |
| Volkswagen | 1H0 698 451D / 1H0698451D |
| Volkswagen | 1H0 698 451G / 1H0698451G |
| Volkswagen | 1J0 698 451 / 1J0698451 |
| Volkswagen | 1J0 698 451A / 1J0698451A |
| Volkswagen | 1J0 698 451B / 1J0698451B |
| Volkswagen | 1J0 698 451C / 1J0698451C |
| Volkswagen | 1J0 698 451D / 1J0698451D |
| Volkswagen | 1J0 698 451E / 1J0698451E |
| Volkswagen | 1J0 698 451F / 1J0698451F |
| Volkswagen | 1J0 698 451G / 1J0698451G |
| Volkswagen | 1J0 698 451J / 1J0698451J |
| Volkswagen | 1J0 698 451K / 1J0698451K |
| Volkswagen | 1J0 698 451P / 1J0698451P |
| Volkswagen | 1J0 698 451R / 1J0698451R |
| Volkswagen | 1K0 698 451J / 1K0698451J |
| Volkswagen | 3B0 698 451 / 3B0698451 |
| Volkswagen | 4B0 698 451A / 4B0698451A |
| Volkswagen | 4B0 698 451B / 4B0698451B |
| Volkswagen | 4B0 698 451E / 4B0698451E |
| Volkswagen | 7D0 698 451J / 7D0698451J |
| Volkswagen | 8D0 615 601D / 8D0615601D |
| Volkswagen | 8D0615601D |
| Volkswagen | 8E0 698 451 / 8E0698451 |
| Volkswagen | 8E0 698 451A / 8E0698451A |
| Volkswagen | 8E0 698 451K / 8E0698451K |
