Description

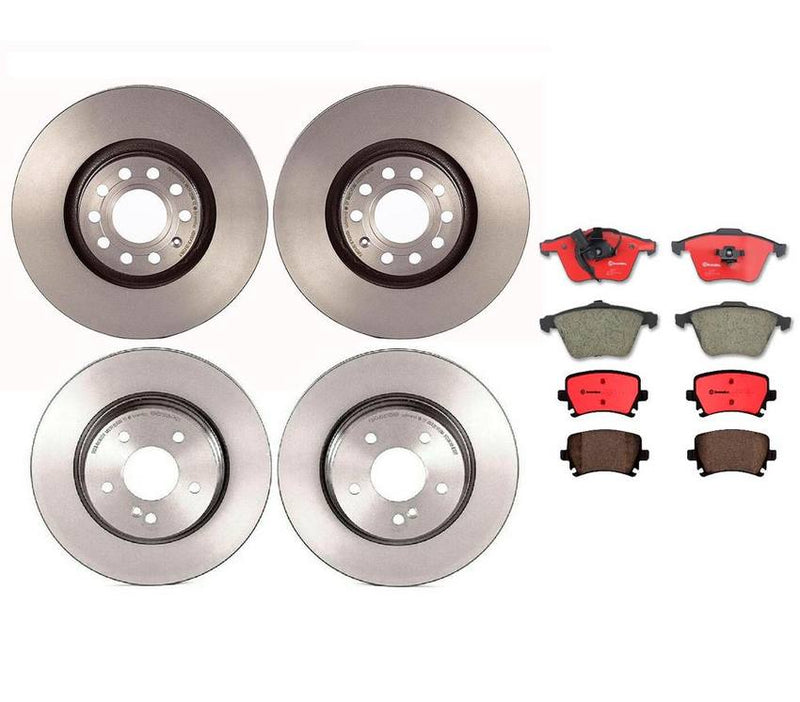

Kit Includes:
2 x Brembo 09.A598.11 Front Disc Brake Rotors
2 x Brembo 08.A332.11 Rear Disc Brake Rotors
1 x Brembo P85084N Front Disc Brake Pad Set
1 x Brembo P85073N Rear Disc Brake Pad Set
| Brake System | ( Front Pads ) Teves |
| Brake System | ( Rear Pads ) Lucas |
| Centring Diameter | ( Front Rotors ) 68 |
| Centring Diameter | ( Rear Rotors ) 68 |
| Coated | ( Front Rotors ) UV Coated |
| Coated | ( Rear Rotors ) UV Coated |
| Diameter (mm) | ( Front Rotors ) 320 |
| Diameter (mm) | ( Rear Rotors ) 288 |
| Features | ( Rear Pads ) with hardware |
| Fixing Screws | ( Front Rotors ) Included |
| Fixing Screws | ( Rear Rotors ) Included |
| Friction Material Composition | Ceramic |
| Height (mm) | ( Front Pads ) 72.8 |
| Height (mm) | ( Front Rotors ) 46.2 |
| Height (mm) | ( Rear Pads ) 56 |
| Height (mm) | ( Rear Rotors ) 35.9 |
| Material | ( Front Rotors ) High Carbon |
| Material | ( Rear Rotors ) Grey Cast Iron |
| Minimum Thickness (mm) | ( Front Rotors ) 28 |
| Minimum Thickness (mm) | ( Rear Rotors ) 10 |
| Nominal Thickness (mm) | ( Front Pads ) 20.3 |
| Nominal Thickness (mm) | ( Front Rotors ) 29.9 |
| Nominal Thickness (mm) | ( Rear Pads ) 17.2 |
| Nominal Thickness (mm) | ( Rear Rotors ) 12 |
| Number of Holes | ( Front Rotors ) 5 |
| Number of Holes | ( Rear Rotors ) 5 |
| Surface Finishing | ( Front Pads ) chamfered |
| Surface Finishing | ( Rear Pads ) chamfered |
| Torque Spec (Nm) | ( Front Rotors ) 120 |
| Torque Spec (Nm) | ( Rear Rotors ) 120 |
| Ventilation Type | ( Front Rotors ) vented |
| Ventilation Type | ( Rear Rotors ) solid |
| Wear Indicator | ( Front Pads ) with electric wear indicator |
| Wear Indicator | ( Rear Pads ) prepared for wear indicator |
| Width (mm) | ( Front Pads ) 155.1 / 156.4 |
| Width (mm) | ( Rear Pads ) 105.3 |
| WVA | ( Front Pads ) 23763 / 23801 |
| WVA | ( Rear Pads ) 23914 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 1K0 698 451D / 1K0698451D |
| Audi | 1K0 698 451G / 1K0698451G |
| Audi | 1K0 698 451K / 1K0698451K |
| Audi | 3AA 698 451 / 3AA698451 |
| Audi | 4F0 698 151D / 4F0698151D |
| Audi | 4F0 698 151K / 4F0698151K |
| Audi | 4F0 698 451A / 4F0698451A |
| Audi | 4F0 698 451D / 4F0698451D |
| Audi | 8D0 615 301M / 8D0615301M |
| Audi | 8D0615301M |
| Audi | 8E0 615 301A AD / 8E0615301AAD |
| Audi | 8E0 615 601M / 8E0615601M |
| Audi | 8E0 698 151G / 8E0698151G |
| Audi | 8E0 698 451F / 8E0698451F |
| Audi | 8E0 698 451J / 8E0698451J |
| Audi | 8E0 698 451M / 8E0698451M |
| Audi | 8E0615301AD |
| Audi | 8E0615601M |
| Seat | 8D0615301M |
| Seat | 8E0615301AD |
| Seat | 8E0615601M |
| Volkswagen | 1K0 698 451E / 1K0698451E |
| Volkswagen | 1K0 698 451F / 1K0698451F |
| Volkswagen | 1K0 698 451G / 1K0698451G |
| Volkswagen | 1K0 698 451H / 1K0698451H |
| Volkswagen | 1K0 698 451K / 1K0698451K |
| Volkswagen | 3C0 698 451 / 3C0698451 |
| Volkswagen | 3C0 698 451A / 3C0698451A |
| Volkswagen | 3C0 698 451B / 3C0698451B |
| Volkswagen | 3C0 698 451C / 3C0698451C |
| Volkswagen | 3C0 698 451D / 3C0698451D |
| Volkswagen | 3C0 698 451E / 3C0698451E |
| Volkswagen | 3C0 698 451F / 3C0698451F |
| Volkswagen | 5N0 698 451 / 5N0698451 |
