Description

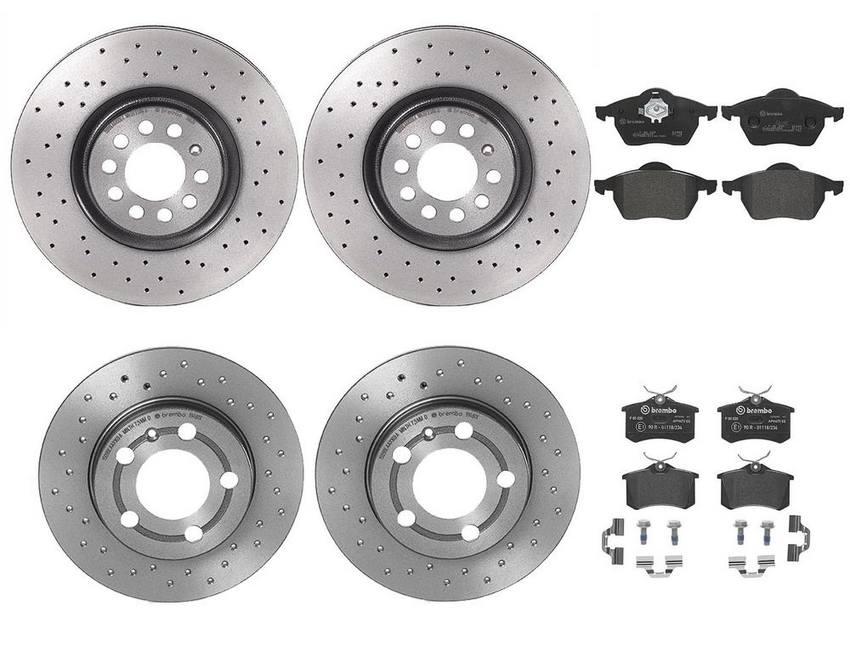

Kit Includes:

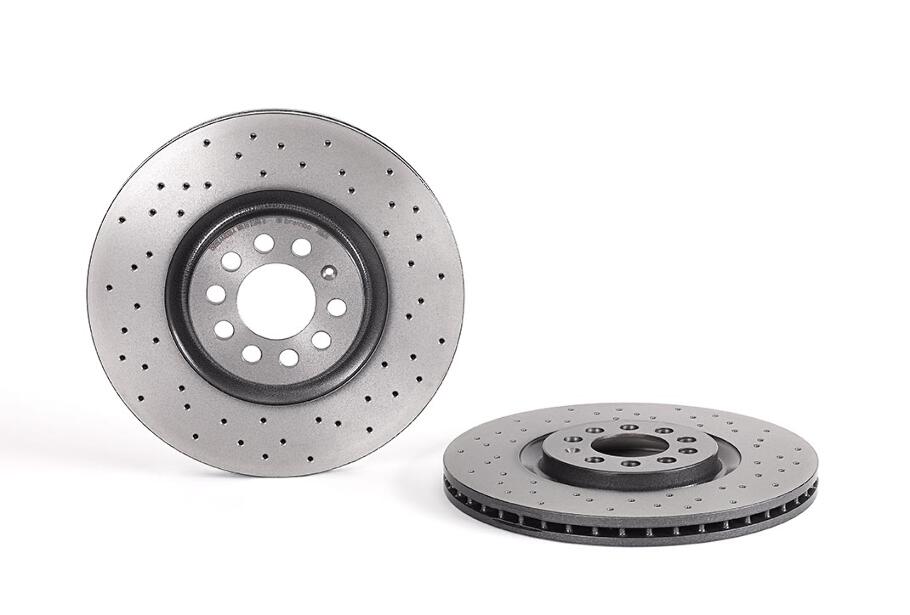

2 x Brembo 09.7880.1X Front Disc Brake Rotors Drilled Xtra

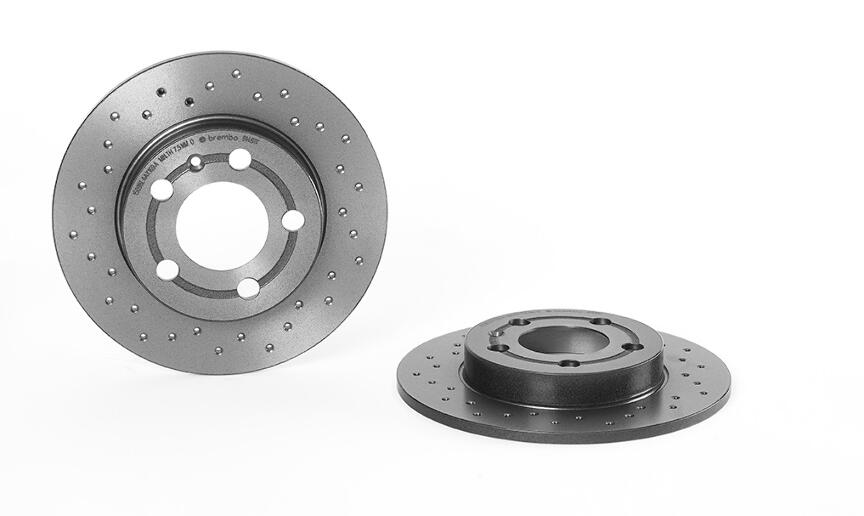

2 x Brembo 08.9148.1X Rear Disc Brake Rotors Drilled Xtra
1 x Brembo P85036 Front Disc Brake Pad Set Low-Met
1 x Brembo P85020 Rear Disc Brake Pad Set Low-Met
| Brake System | (Front Pads) Teves |
| Brake System | (Rear Pads) Lucas |
| Coated | (Front Rotors) Yes |
| Coated | (Rear Rotors) Yes |
| Features | (Rear Pads) with hardware |
| Fixing Screws | (Front Rotors) Yes |
| Fixing Screws | (Rear Rotors) Yes |
| Friction Material Composition | (Pads) Low-Met |
| Height (mm) | (Front Pads) 74 |
| Height (mm) | (Rear Pads) 52.8 |
| High Carbon | (Front Rotors) Yes |
| Min TH (Discs)/Max Diameter (Drums) (mm) | (Front Rotors) 23.5 |
| Min TH (Discs)/Max Diameter (Drums) (mm) | (Rear Rotors) 7.5 |
| Nominal Thickness (mm) | (Front Pads) 20.2 |
| Nominal Thickness (mm) | (Front Rotors) 25 |
| Nominal Thickness (mm) | (Rear Pads) 17.2 |
| Nominal Thickness (mm) | (Rear Rotors) 9 |
| Outside Diameter (mm) | (Front Rotors) 312 |
| Outside Diameter (mm) | (Rear Rotors) 239 |
| Surface Finishing | (Front Pads) chamfered |
| Surface Finishing | (Rear Pads) chamfered |
| Surface Type | (Front & Rear Rotors) Drilled |
| Torque Spec (DaNm) | (Front Rotors) 12 |
| Torque Spec (DaNm) | (Rear Rotors) 12 |
| Width (mm) | (Front Pads) 156.4 |
| Width (mm) | (Rear Pads) 87 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 1J0615601D |
| Audi | 1J0698451D |
| Audi | 1J0698451E |
| Audi | 1J0698451J |
| Audi | 1J0698451L |
| Audi | 1J0698451N |
| Audi | 1J0698451P |
| Audi | 1K0698451J |
| Audi | 3B0698451 |
| Audi | 4B0698451 |
| Audi | 4B0698451B |
| Audi | 4B0698451C |
| Audi | 4B0698451E |
| Audi | 4D0698151C |
| Audi | 4D0698451C |
| Audi | 5K0298451B |
| Audi | 5Q0698451C |
| Audi | 5Q0698451N |
| Audi | 6C0698451A |
| Audi | 8D0698151A |
| Audi | 8D0698151C |
| Audi | 8D0698151E |
| Audi | 8E0698451 |
| Audi | 8E0698451A |
| Audi | 8E0698451B |
| Audi | 8L0615301 |
| Audi | 8N0615301A |
| Audi | 8N0698151 |
| Seat | 8N0615301A |
| Skoda | 1J0615601D |
| Skoda | 8N0615301A |
| Volkswagen | 1E0698451 |
| Volkswagen | 1E0698451B |
| Volkswagen | 1E0698451C |
| Volkswagen | 1E0698451E |
| Volkswagen | 1E0698451G |
| Volkswagen | 1H0690451 |
| Volkswagen | 1H0690451A |
| Volkswagen | 1H0698451 |
| Volkswagen | 1H0698451A |
| Volkswagen | 1H0698451C |
| Volkswagen | 1H0698451D |
| Volkswagen | 1H0698451G |
| Volkswagen | 1J0615601D |
| Volkswagen | 1J0698451 |
| Volkswagen | 1J0698451A |
| Volkswagen | 1J0698451B |
| Volkswagen | 1J0698451C |
| Volkswagen | 1J0698451D |
| Volkswagen | 1J0698451E |
| Volkswagen | 1J0698451F |
| Volkswagen | 1J0698451G |
| Volkswagen | 1J0698451J |
| Volkswagen | 1J0698451K |
| Volkswagen | 1J0698451P |
| Volkswagen | 1J0698451R |
| Volkswagen | 1K0698451J |
| Volkswagen | 3A0698151A |
| Volkswagen | 3B0698451 |
| Volkswagen | 425056 |
| Volkswagen | 4B0698451A |
| Volkswagen | 4B0698451B |
| Volkswagen | 4B0698451E |
| Volkswagen | 5K0298451B |
| Volkswagen | 5Q0698451C |
| Volkswagen | 5Q0698451E |
| Volkswagen | 5Q0698451N |
| Volkswagen | 6C0698451A |
| Volkswagen | 7D0698451J |
| Volkswagen | 8D0698151A |
| Volkswagen | 8D0698151C |
| Volkswagen | 8E0698451 |
| Volkswagen | 8E0698451A |
| Volkswagen | 8E0698451K |
| Volkswagen | 8L0615301 |
| Volkswagen | 8N0615301A |
| Volkswagen | 8N0698151 |
