Description

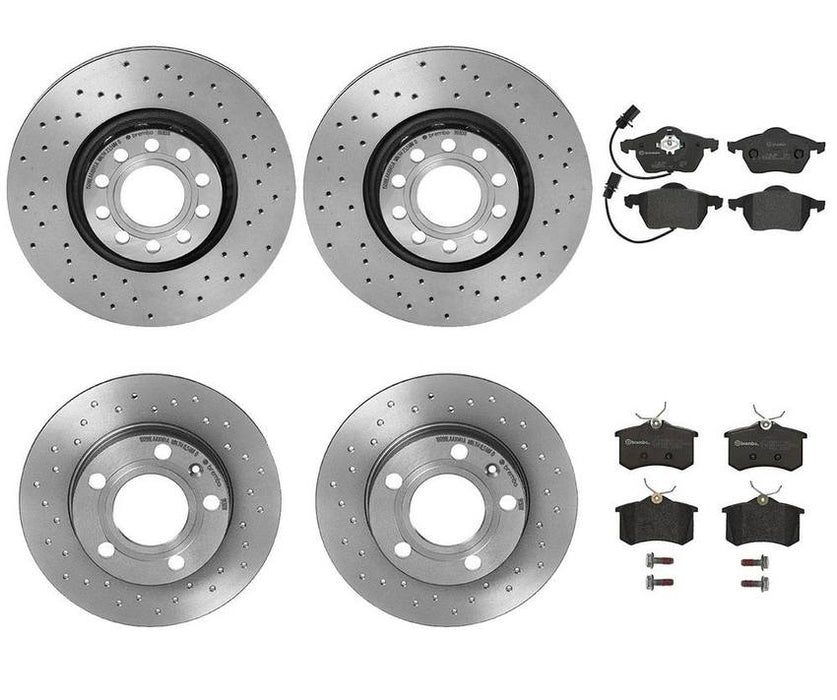

Kit Includes:

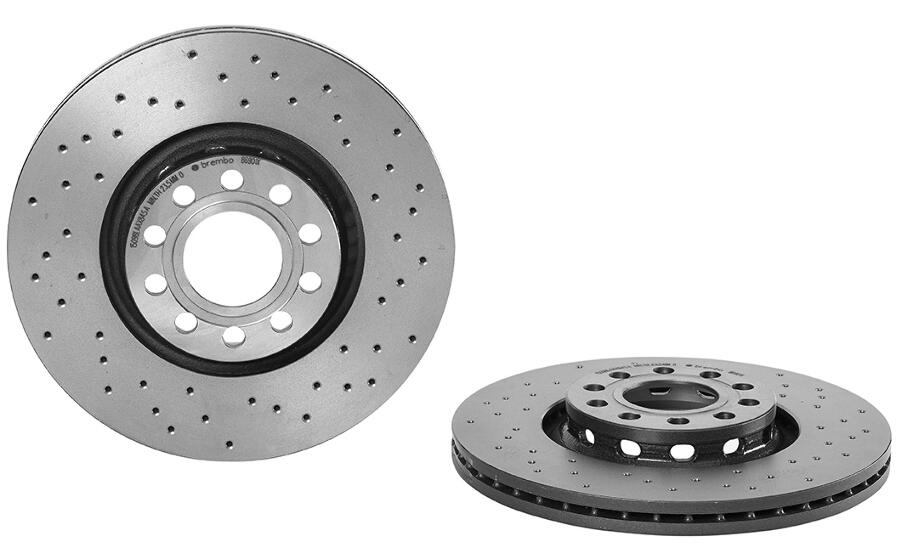

2 x Brembo 09.8690.1X Front Disc Brake Rotors Drilled Xtra

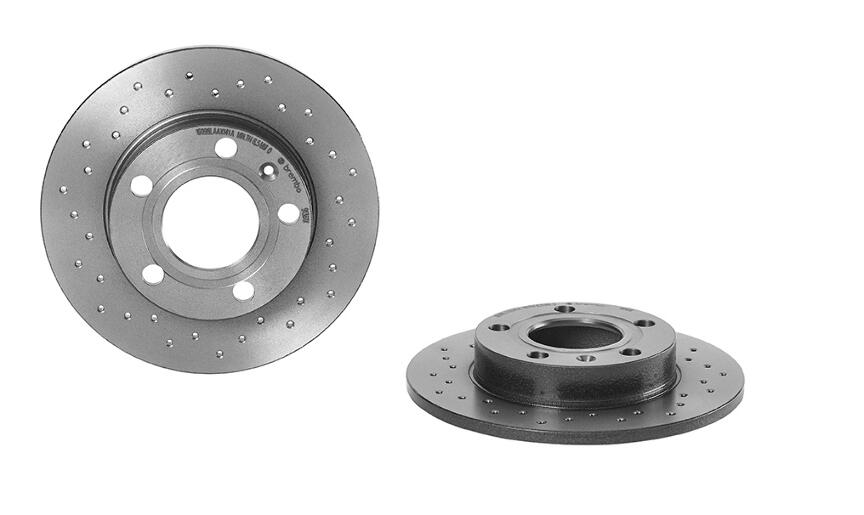

2 x Brembo 08.9136.1X Rear Disc Brake Rotors Drilled Xtra
1 x Brembo P85017 Rear Disc Brake Pad Set Low-Met
1 x Brembo P85085 Front Disc Brake Pad Set Low-Met
| Brake System | (Front Pads) Teves |
| Brake System | (Rear Pads) Lucas |
| Braking Surface | (Front Rotors) Drilled |
| Braking Surface | (Rear Rotors) drilled |
| Centring Diameter | (Front Rotors) 68 |
| Centring Diameter | (Rear Rotors) 68 |
| Coated | (Front Rotors) UV Coated |
| Coated | (Rear Rotors) UV Coated |
| Diameter (mm) | (Front Rotors) 312 |
| Diameter (mm) | (Rear Rotors) 245 |
| Features | (Rear Pads) with hardware |
| Fixing Screws | (Front Rotors) Included |
| Fixing Screws | (Rear Rotors) Included |
| Friction Material Composition | (Pads) Low-Met |
| Height (mm) | (Front Pads) 74 |
| Height (mm) | (Front Rotors) 46.2 |
| Height (mm) | (Rear Pads) 52.8 |
| Height (mm) | (Rear Rotors) 39.8 |
| Material | (Front Rotors) High Carbon |
| Material | (Rear Rotors) Grey Cast Iron |
| Minimum Thickness (mm) | (Front Rotors) 23.5 |
| Minimum Thickness (mm) | (Rear Rotors) 8 |
| Nominal Thickness (mm) | (Front Pads) 20.4 / 19.6 |
| Nominal Thickness (mm) | (Front Rotors) 25 |
| Nominal Thickness (mm) | (Rear Pads) 15.2 |
| Nominal Thickness (mm) | (Rear Rotors) 10 |
| Number of Holes | (Front Rotors) 5 |
| Number of Holes | (Rear Rotors) 5 |
| Surface Finishing | (Front Pads) chamfered |
| Surface Finishing | (Rear Pads) chamfered |
| Torque Spec (Nm) | (Front Rotors) 120 |
| Torque Spec (Nm) | (Rear Rotors) 120 |
| Ventilation Type | (Front Rotors) vented |
| Ventilation Type | (Rear Rotors) solid |
| Wear Indicator | (Front Pads) with electric wear indicator |
| Width (mm) | (Front Pads) 156.3 / 156.4 |
| Width (mm) | (Rear Pads) 87.1 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 1K0698151B |
| Audi | 3B0 615 301B / 3B0615301B |
| Audi | 3B0615301B |
| Audi | 440 602 070R / 440602070R |
| Audi | 440 607 960R / 440607960R |
| Audi | 440602070R |
| Audi | 440607960R |
| Audi | 4A0 615 601A / 4A0615601A |
| Audi | 4A0615601A |
| Audi | 4B0 615 301A / 4B0615301A |
| Audi | 4B0 698 151A AB / 4B0698151AAB |
| Audi | 4B0 698 151A AF / 4B0698151AAF |
| Audi | 4B0 698 151E / 4B0698151E |
| Audi | 4B0 698 151K / 4B0698151K |
| Audi | 4B0615301A |
| Audi | 4B0698151AB |
| Audi | 4B0698151AC |
| Audi | 4B0698151AD |
| Audi | 4B0698151AF |
| Audi | 4B0698151E |
| Audi | 4B0698151K |
| Audi | 4B0698151R |
| Audi | 4D0 698 151J / 4D0698151J |
| Audi | 4D0698151J |
| Audi | 4F0698151A |
| Audi | 8D0 615 301J / 8D0615301J |
| Audi | 8D0615301J |
| Audi | 8E0 615 301R / 8E0615301R |
| Audi | 8E0 698 451D / 8E0698451D |
| Audi | 8E0 698 451E / 8E0698451E |
| Audi | 8E0 698 451L / 8E0698451L |
| Audi | 8E0615301R |
| Audi | 8E0615601B |
| Audi | 8E0615601P |
| Audi | 8E0698151C |
| Audi | 8E0698451D |
| Audi | 8E0698451E |
| Audi | 8E0698451L |
| Skoda | 4A0615601A |
| Skoda | 4B0615301A |
| Skoda | 8D0615301J |
| Skoda | 8E0615301R |
| Volkswagen | 4A0 615 601A / 4A0615601A |
| Volkswagen | 4A0615601A |
| Volkswagen | 4B0 615 301A / 4B0615301A |
| Volkswagen | 4B0 698 151 AF / 4B0698151AF |
| Volkswagen | 4B0 698 151K / 4B0698151K |
| Volkswagen | 4B0 698 151N / 4B0698151N |
| Volkswagen | 4B0615301A |
| Volkswagen | 4B0698151AF |
| Volkswagen | 4B0698151K |
| Volkswagen | 4B0698151N |
| Volkswagen | 8D0 615 301J / 8D0615301J |
| Volkswagen | 8D0615301J |
| Volkswagen | 8E0 615 301R / 8E0615301R |
| Volkswagen | 8E0 615 601 / 8E0615601 |
| Volkswagen | 8E0615301R |
| Volkswagen | 8E0615601 |
