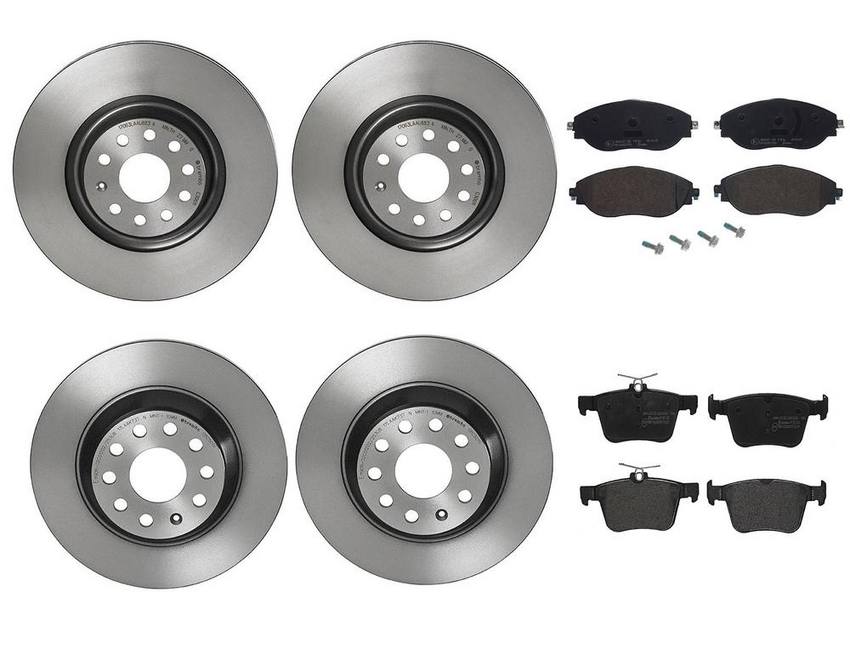

Kit Includes:
2 x Brembo 09.C306.11 Front Disc Brake Rotors - 340mm , PVT , Coated
1 x Brembo P85166 Front Disc Brake Pad Set Low-Met
2 x Brembo 08.C501.11 Rear Disc Brake Rotors - 300mm , Solid , Coated
1 x Brembo P85124 Rear Disc Brake Pad Set Low-Met
| Brake System | (Rear Pads) Teves |
| Brake Type | (Front Pads) TRW |
| Centering Diameter (MM) | (Rear Rotors) 65 |
| Coated | (Front Rotors) UV Coated |
| Diameter | (Front Rotors) 340 |
| Fixing Screws | (Rear Rotors) included |
| FMSI Number | (Rear Pads) D1761 8996 |
| Friction Material Composition | (Pads) Low-Met |
| Hardware Material | (Front Pads) with brake caliper screws |
| Height | (Front Pads) 69.5 |
| Height | (Front Rotors) 49.7 |
| Height (MM) | (Rear Pads) 56.2/61.2 |
| Height (MM) | (Rear Rotors) 48.3 |
| Indicator Type | (Front Pads) with electric wear indicator |
| Material | (Front Rotors) High Carbon Cast Iron |
| Material | (Rear Rotors) Grey Cast Iron |
| Minimum Thickness | (Front Rotors) 27 |
| Minimum Thickness (MM) | (Rear Rotors) 10 |
| Nominal Thickness | (Front Pads) 20 |
| Nominal Thickness | (Front Rotors) 30 |
| Nominal Thickness (MM) | (Rear Pads) 16.4 |
| Nominal Thickness (MM) | (Rear Rotors) 12 |
| Number of Holes | (Rear Rotors) 5 |
| Outside Diameter (MM) | (Rear Rotors) 300 |
| Rust Resistant Coating | (Rear Rotors) UV Coated |
| Screw Material | (Front Rotors) included |
| Solid Or Vented Type Rotor | (Front Rotors) PVT |
| Solid Or Vented Type Rotor | (Rear Rotors) solid |
| Wear Indicator | (Pads) without wear indicator |
| Width | (Front Pads) 175.2 |
| Width (MM) | (Rear Pads) 123 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 1K0615301AD |
| Audi | 3Q0615601 |
| Audi | 3Q0615601A |
| Audi | 3Q0698451E |
| Audi | 5Q0615301G |
| Audi | 5Q0698451P |
| Audi | 8S0615301 |
| Audi | 8S0615301D |
| Audi | 8V0698451A |
| Audi | 8V0698451D |
| Volkswagen | 1K0615301AD |
| Volkswagen | 3C0615301C |
| Volkswagen | 3C0615301D |
| Volkswagen | 3Q0698151 |
| Volkswagen | 3Q0698451C |
| Volkswagen | 3Q0698451D |
| Volkswagen | 3Q0698451E |
| Volkswagen | 5Q0615301G |
| Volkswagen | 5Q0698451P |
| Volkswagen | 8V0698451D |
