Description

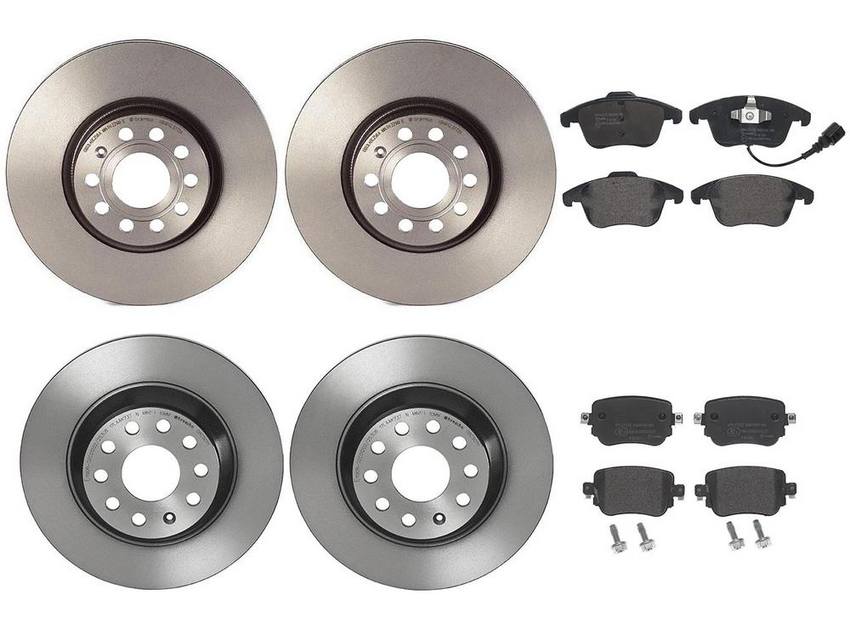

Kit Includes:

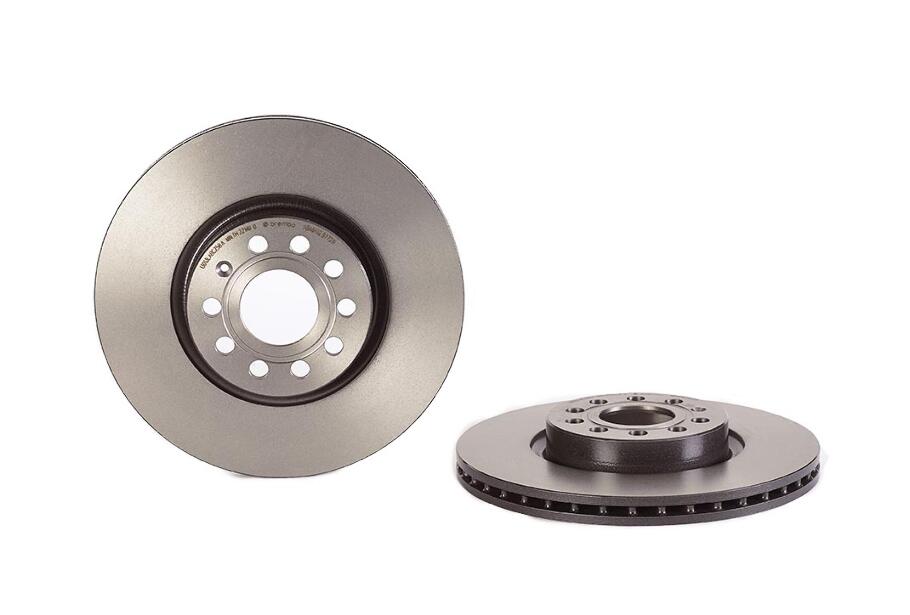

2 x Brembo 09.9772.11 Front Disc Brake Rotors - 312m , Vented , Coated
2 x Brembo 08.C501.11 Rear Disc Brake Rotors - 300mm , Solid , Coated
1 x Brembo P85130 Front Disc Brake Pad Set Low-Met
1 x Brembo P85140 Rear Disc Brake Pad Set Low-Met
| Brake Type | (Front Pads) Teves |
| Brake Type | (Rear Pads) TRW |
| Center Diameter | (Front Rotors) 65 |
| Center Diameter | (Rear Rotors) 65 |
| Coated | (Front Rotors) UV Coated |
| Coated | (Rear Rotors) UV Coated |
| Diameter | (Front Rotors) 312 |
| Diameter | (Rear Rotors) 300 |
| Friction Material Composition | (Pads) Low-Met |
| Hardware Material | (Rear Pads) w/ith hardware |
| Height | (Front Pads) 72 / 66.7 |
| Height | (Front Rotors) 49.5 |
| Height | (Rear Pads) 52.2 |
| Height | (Rear Rotors) 48.3 |
| Indicator Type | (Front Pads) with electric wear indicator |
| Indicator Type | (Rear Pads) w/ acoustic wear indicator |
| Material | (Front Rotors) High Carbon |
| Material | (Rear Rotors) Grey Cast Iron |
| Minimum Thickness | (Front Rotors) 22 |
| Minimum Thickness | (Rear Rotors) 10 |
| Nominal Thickness | (Front Pads) 20 |
| Nominal Thickness | (Front Rotors) 25 |
| Nominal Thickness | (Rear Pads) 17.5 |
| Nominal Thickness | (Rear Rotors) 12 |
| Quantity | (Front Rotors) 5 |
| Quantity | (Rear Rotors) 5 |
| Screw Material | (Front Rotors) Included |
| Screw Material | (Rear Rotors) Included |
| Solid Or Vented Type Rotor | (Front Rotors) vented |
| Solid Or Vented Type Rotor | (Rear Rotors) solid |
| Surface Type | (Front Pads) chamfered |
| Surface Type | (Rear Pads) chamfered |
| Torque Increments | (Front Rotors) 120 |
| Width | (Front Pads) 155.2 |
| Width | (Rear Pads) 104 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 1K0615301AA |
| Audi | 3Q0615601 |
| Audi | 3Q0615601A |
| Audi | 5C0615301B |
| Audi | 5C0615301E |
| Audi | 5N0698151 |
| Audi | 5N0698151A |
| Audi | 5N0698151B |
| Audi | 5N0698151C |
| Audi | 5Q0615301F |
| Audi | 7N0698451A |
| Audi | 8U0698451F |
| Seat | 1K0615301AA |
| Skoda | 1K0615301AA |
| Volkswagen | 1K0615301AA |
| Volkswagen | 561615301 |
| Volkswagen | 561615301A |
| Volkswagen | 561615301B |
| Volkswagen | 5C0615301B |
| Volkswagen | 5C0615301E |
| Volkswagen | 5N0698151 |
| Volkswagen | 5N0698151A |
| Volkswagen | 5N0698151B |
| Volkswagen | 5N0698151C |
| Volkswagen | 5Q0615301F |
| Volkswagen | 7N0698451A |
| Volkswagen | 8U0698451F |
