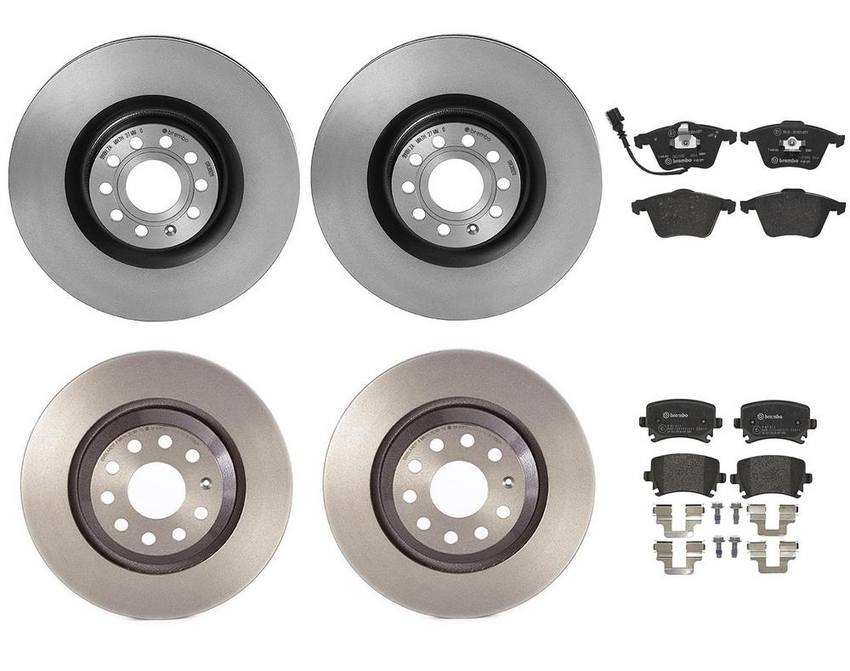

Kit Includes:
2 x Brembo 09.C892.11 Front Disc Brake Rotors - 345mm , PVT+ , Coated

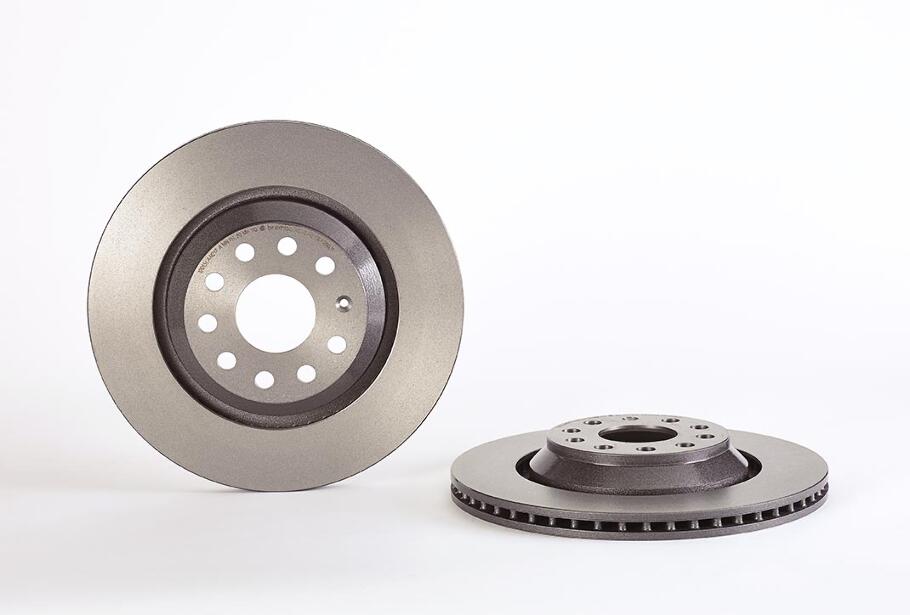

2 x Brembo 09.A200.11 Rear Disc Brake Rotors - 310mm , Vented , Coated
1 x Brembo P85079 Front Disc Brake Pad Set Low-Met
1 x Brembo P85073 Rear Disc Brake Pad Set Low-Met
| Brake System | (Front Pads) Teves |
| Brake System | (Rear Pads) Lucas |
| Centering Diameter (MM) | (Rear Rotors) 65 |
| Fixing Screws | (Front Rotors) included |
| Fixing Screws | (Rear Rotors) included |
| FMSI Number | (Front Pads) D1359 8468 |
| FMSI Number | (Rear Pads) D1108 8213 |
| Friction Material Composition | (Pads) Low-Met |
| Height (MM) | (Front Pads) 72.9 |
| Height (MM) | (Front Rotors) 49.6 |
| Height (MM) | (Rear Pads) 56.5 |
| Height (MM) | (Rear Rotors) 48.2 |
| Material | (Front Rotors) High Carbon |
| Material | (Rear Rotors) High Carbon |
| Minimum Thickness (MM) | (Front Rotors) 27 |
| Minimum Thickness (MM) | (Rear Rotors) 20 |
| Nominal Thickness (MM) | (Front Pads) 20.1 |
| Nominal Thickness (MM) | (Front Rotors) 30 |
| Nominal Thickness (MM) | (Rear Pads) 17.2 |
| Nominal Thickness (MM) | (Rear Rotors) 22 |
| Number of Holes | (Rear Rotors) 5 |
| Outside Diameter (MM) | (Front Rotors) 345 |
| Outside Diameter (MM) | (Rear Rotors) 310 |
| Rust Resistant Coating | (Front Rotors) UV Coated |
| Rust Resistant Coating | (Rear Rotors) UV Coated |
| Solid Or Vented Type Rotor | (Front Rotors) PVT |
| Solid Or Vented Type Rotor | (Rear Rotors) vented |
| Suface Finishing | (Front Pads) chamfered |
| Suface Finishing | (Rear Pads) chamfered |
| Torque Spec(NM) | (Rear Rotors) 120 |
| Wear Indicator | (Front Pads) with electric wear indicator |
| Width (MM) | (Front Pads) 156.1 / 156.4 |
| Width (MM) | (Rear Pads) 105.5 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 1K0 615 301A AB / 1K0615301AAB |
| Audi | 1K0 615 301M / 1K0615301M |
| Audi | 1K0 615 601N / 1K0615601N |
| Audi | 1K0 698 451D / 1K0698451D |
| Audi | 1K0 698 451G / 1K0698451G |
| Audi | 1K0 698 451K / 1K0698451K |
| Audi | 1K0615301AB |
| Audi | 1K0615301M |
| Audi | 1K0615601N |
| Audi | 1K0698451D |
| Audi | 1K0698451G |
| Audi | 1K0698451K |
| Audi | 3AA 698 451 / 3AA698451 |
| Audi | 3AA698451 |
| Audi | 3AA698451A |
| Audi | 4F0 698 451A / 4F0698451A |
| Audi | 4F0 698 451D / 4F0698451D |
| Audi | 4F0698451A |
| Audi | 4F0698451D |
| Audi | 5Q0615601E |
| Audi | 8E0 698 451F / 8E0698451F |
| Audi | 8E0 698 451J / 8E0698451J |
| Audi | 8E0 698 451M / 8E0698451M |
| Audi | 8E0698451F |
| Audi | 8E0698451J |
| Audi | 8E0698451M |
| Audi | 8J0 698 151A / 8J0698151A |
| Audi | 8J0 698 151F / 8J0698151F |
| Audi | 8J0698151A |
| Audi | 8J0698151F |
| Seat | 1K0615301AB |
| Seat | 1K0615301M |
| Skoda | 1K0615301AB |
| Skoda | 1K0615301M |
| Skoda | 1K0615601N |
| Volkswagen | 1K0 615 301 AB / 1K0615301AB |
| Volkswagen | 1K0 615 301M / 1K0615301M |
| Volkswagen | 1K0 615 601N / 1K0615601N |
| Volkswagen | 1K0 698 451E / 1K0698451E |
| Volkswagen | 1K0 698 451F / 1K0698451F |
| Volkswagen | 1K0 698 451G / 1K0698451G |
| Volkswagen | 1K0 698 451H / 1K0698451H |
| Volkswagen | 1K0 698 451K / 1K0698451K |
| Volkswagen | 1K0615301AB |
| Volkswagen | 1K0615301AR |
| Volkswagen | 1K0615301M |
| Volkswagen | 1K0615601N |
| Volkswagen | 1K0698451E |
| Volkswagen | 1K0698451F |
| Volkswagen | 1K0698451G |
| Volkswagen | 1K0698451H |
| Volkswagen | 1K0698451K |
| Volkswagen | 3AA698451 |
| Volkswagen | 3AA698451A |
| Volkswagen | 3C0 698 451 / 3C0698451 |
| Volkswagen | 3C0 698 451A / 3C0698451A |
| Volkswagen | 3C0 698 451B / 3C0698451B |
| Volkswagen | 3C0 698 451C / 3C0698451C |
| Volkswagen | 3C0 698 451D / 3C0698451D |
| Volkswagen | 3C0 698 451E / 3C0698451E |
| Volkswagen | 3C0 698 451F / 3C0698451F |
| Volkswagen | 3C0698451 |
| Volkswagen | 3C0698451A |
| Volkswagen | 3C0698451B |
| Volkswagen | 3C0698451C |
| Volkswagen | 3C0698451D |
| Volkswagen | 3C0698451E |
| Volkswagen | 3C0698451F |
| Volkswagen | 5N0 698 451 / 5N0698451 |
| Volkswagen | 5N0698451 |
| Volkswagen | 5Q0615601E |
