Description

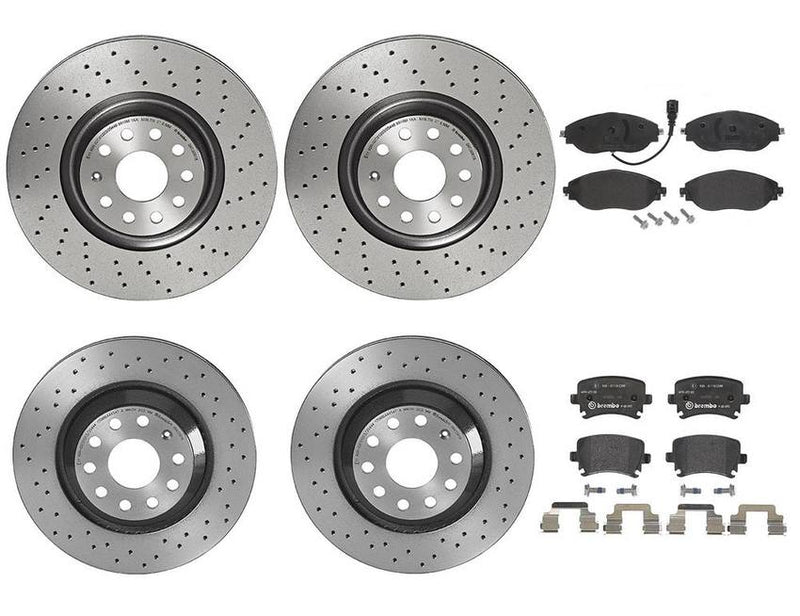

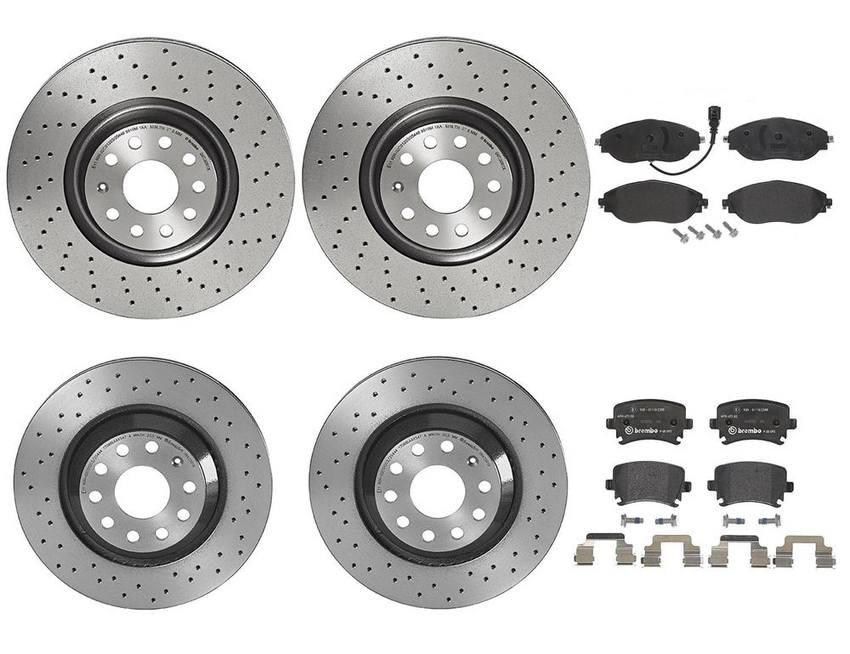

Kit Includes:

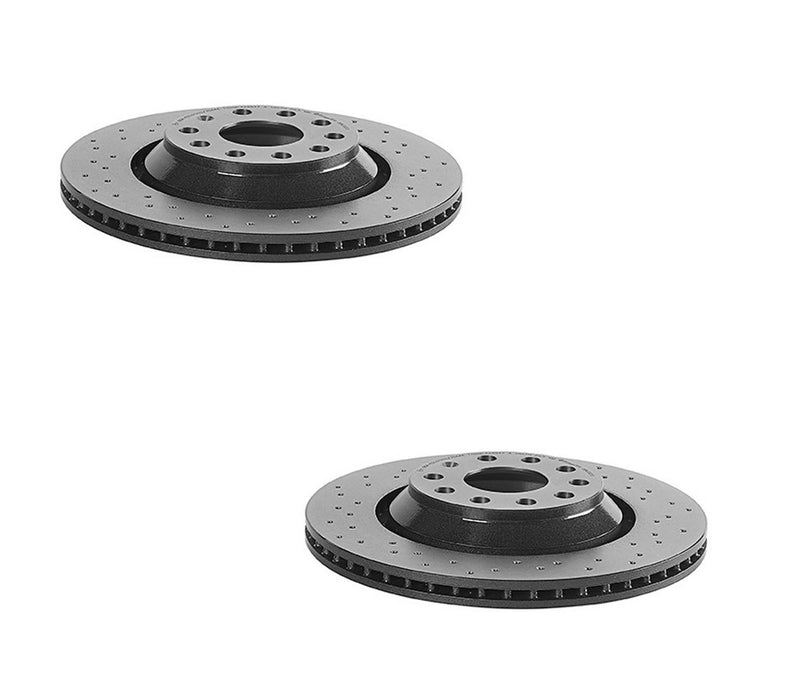

2 x Brembo 09.A200.1X Rear Disc Brake Rotors Xtra - 310mm, Drilled, Pillar Vented, Coated
1 x Brembo P85144 Front Disc Brake Pad Set Low-Met with Electric Wear Sensor

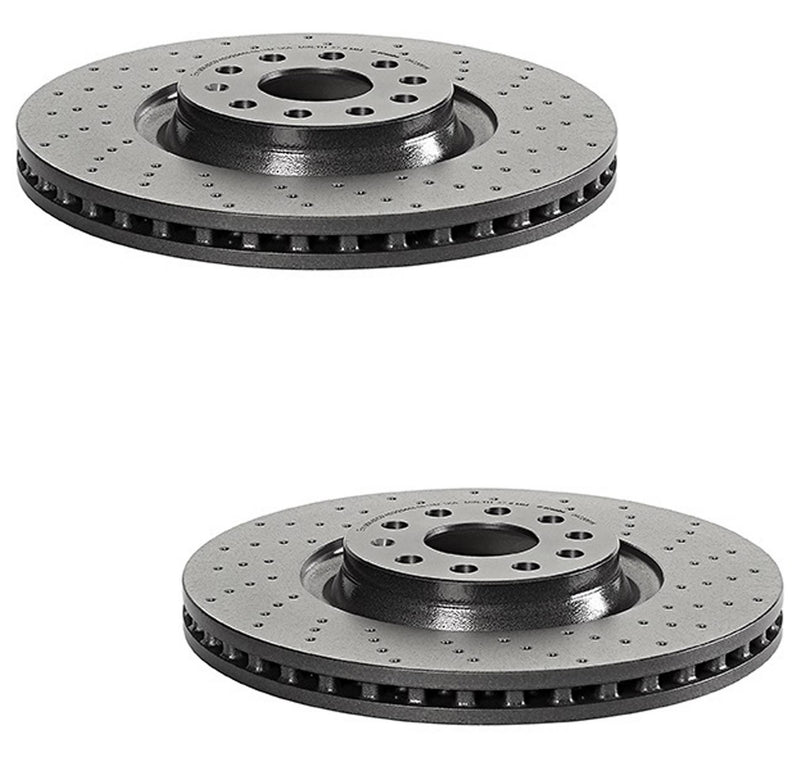

2 x Brembo 09.C306.1X Front Disc Brake Rotors Xtra - 340mm, Drilled, Pillar Vented, Coated
1 x Brembo P85095 Rear Disc Brake Pad Set Low-Met with Hardware
| Brake System | (Front Pads) TRW |
| Brake System | (Rear Pads) Lucas |
| Braking Surface | (Front Rotors) Drilled |
| Braking Surface | (Rear Rotors) Drilled |
| Centering Diameter (MM) | (Rear Rotors) 65 |
| Features | (Front Pads) with hardware, with brake caliper screws |
| Features | (Rear Pads) with hardware, with brake caliper screws |
| Fixing Screws | (Front Rotors) included |
| Fixing Screws | (Rear Rotors) included |
| Friction Material Composition | (Pads) Low-Metallic |
| Height (MM) | (Front Pads) 69.5 |
| Height (MM) | (Front Rotors) 49.7 |
| Height (MM) | (Rear Pads) 56.5 |
| Height (MM) | (Rear Rotors) 48.2 |
| Material | (Front Rotors) High Carbon Cast Iron |
| Material | (Rear Rotors) High Carbon |
| Minimum Thickness (MM) | (Front Rotors) 27.8 |
| Minimum Thickness (MM) | (Rear Rotors) 20.5 |
| Nominal Thickness (MM) | (Front Pads) 20 |
| Nominal Thickness (MM) | (Front Rotors) 30 |
| Nominal Thickness (MM) | (Rear Pads) 17.2 |
| Nominal Thickness (MM) | (Rear Rotors) 22 |
| Number of Holes | (Rear Rotors) 5 |
| Outside Diameter (MM) | (Front Rotors) 340 |
| Outside Diameter (MM) | (Rear Rotors) 310 |
| Rust Resistant Coating | (Front Rotors) UV Coated |
| Rust Resistant Coating | (Rear Rotors) UV Coated |
| Solid Or Vented Type Rotor | (Front Rotors) PVT |
| Solid Or Vented Type Rotor | (Rear Rotors) vented |
| Torque Spec(NM) | (Rear Rotors) 120 |
| Wear Indicator | (Front Pads) with electric wear indicator |
| Width (MM) | (Front Pads) 175.1 |
| Width (MM) | (Rear Pads) 105.5 |
| Brand | Part # |
|---|
| Brand | Part # |
|---|---|
| Audi | 1K0615301AD |
| Audi | 1K0615601N |
| Audi | 1K0698451B |
| Audi | 1K0698451E |
| Audi | 1K0698451K |
| Audi | 3C0698451A |
| Audi | 5Q0615301G |
| Audi | 5Q0615601E |
| Audi | 8S0615301 |
| Audi | 8S0615301D |
| Audi | 8V0698151C |
| Skoda | 1K0615601N |
| Volkswagen | 1K0615301AD |
| Volkswagen | 1K0615601N |
| Volkswagen | 1K0698451B |
| Volkswagen | 1K0698451E |
| Volkswagen | 1K0698451K |
| Volkswagen | 3C0615301C |
| Volkswagen | 3C0615301D |
| Volkswagen | 3C0698451A |
| Volkswagen | 5Q0615301G |
| Volkswagen | 5Q0615601E |
| Volkswagen | 8S0615301 |
| Volkswagen | 8S0615301D |
| Volkswagen | 8V0698151C |
| Volkswagen | JZW698451M |
