Description

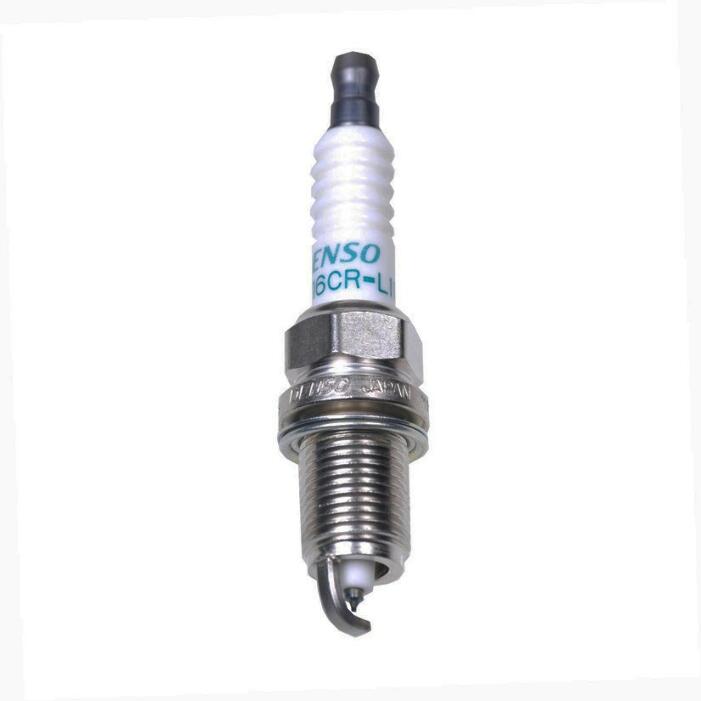

The spark plug is a critical component to the proper running engine. In a conventional gasoline engine, the air fuel mixture is ignited by the spark plug to drive the piston down and convert this energy to horsepower. If your spark plugs aren’t in good shape, this crucial process can be severely hindered to the point of power loss, hesitation, misfires, and poor start up performance. Typical service schedule for standard copper tip spark plugs is between 10,000 and 30,000 miles. Iridium plugs have a more durable (but weaker) electrode that can last upwards of 60,000 miles, and platinum plugs can be rated to go as far as 100,000 miles before the electrode is spent. When replacing spark plugs, be sure to abide by the part numbers in your owner’s manual for best performance, and always use dielectric grease to make a sealed and secure electrical connection.
Center Electrode Core Material | Copper |
Center Electrode Tip Material | Iridium |
Ground Configuration | Standard |
Ground Electrode Core Material | Nickel |
Ground Electrode Quantity | 1 |
Ground Electrode Tip Design | Platinum Chip |
Hex Size | 16.0 |
Manufacturer Heat Range | 16 |
Pre-Gap Size | 1.1 |
Reach | 19.00 |
Resistance | 5000 |
Seat Type | Flat |
Thread Diameter | 14.00 |
Brand | Part # |
---|
Brand | Part # |
---|---|
American Motors | 3300 2750 / 33002750 |
American Motors | 4318 138 / 4318138 |
American Motors | 5602 7275 / 56027275 |
Chrysler | 4504 277 / 4504277 |
Chrysler | 4606 823AB / 4606823AB |
Chrysler | 4609 040 / 4609040 |
Chrysler | 5602 7275 / 56027275 |
Chrysler | 5602 8189 / 56028189 |
Chrysler | 5602 8236AA / 56028236AA |
Chrysler | 5604 1402AB / 56041402AB |
Chrysler | SP0RC12ECC |
Chrysler | SP0RC12LC4 |
Chrysler | SP0RC12LYC |
Chrysler | SP0ZFR5F11 |
Chrysler | SPRC12MCC4 |
DENSO Auto Parts | SKJ16CR-L11 / SKJ16CRL11 |
General Motors | 8350 0411 / 83500411 |
General Motors | 93176801 |
Honda | 5-86205-236-0 / 5862052360 |
Honda | 5-86205-237-0 / 5862052370 |
Honda | 98079-551-4G / 980795514G |
Honda | 98079-551-4N / 980795514N |
Honda | 98079-551-4P / 980795514P |
Honda | 98079-551-5G / 980795515G |
Honda | 98079-551-5N / 980795515N |
Hyundai | 18839-11051 / 1883911051 |
Mazda | 0000-18-F287 / 000018F287 |
Mazda | F287-18-110 / F28718110 |
Mazda | F288-18-110 / F28818110 |
Renault | T0714540 |
